SW800 Installation Manual
31

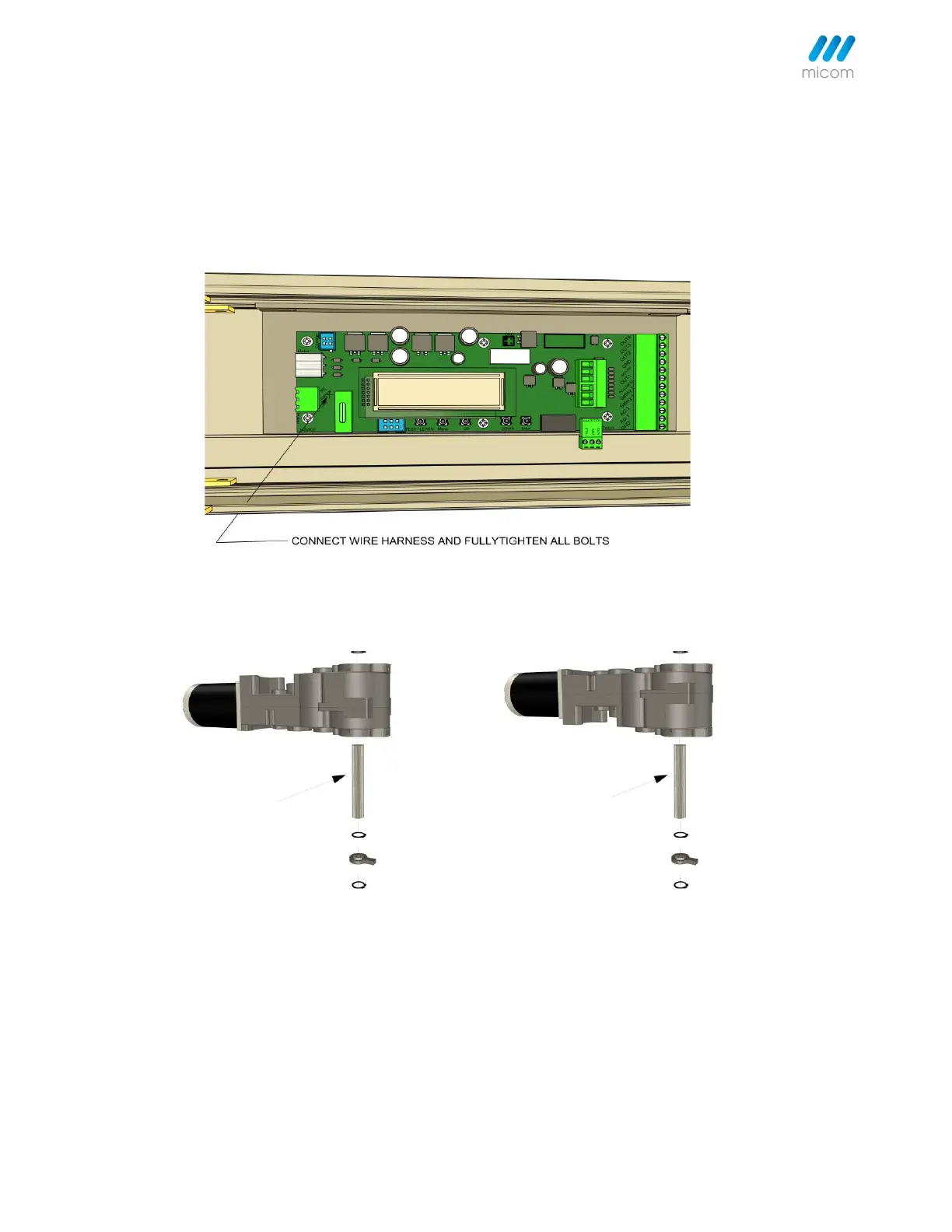

Step 7. Connect wire harness
Step 8. Insert Spline shaft on the operator (depended on push or pull application and spindle rotation)
Insert spindle shaft on the
operator for Left hand
Insert spindle shaft on the
Operator for Right hand
micom
