Installation and Assembly
IF2030/ENETIP
4. Installation and Assembly
i
Ensure careful handling during installation and operation.
4.1 Installation of the Interface Module
22.6
(.89)
-0,3
+0,35
99 (3.90)
±0,4
107 (4.21)
113.7 (4.48)
-0,4
+0,6
TS35
Top-hat rail

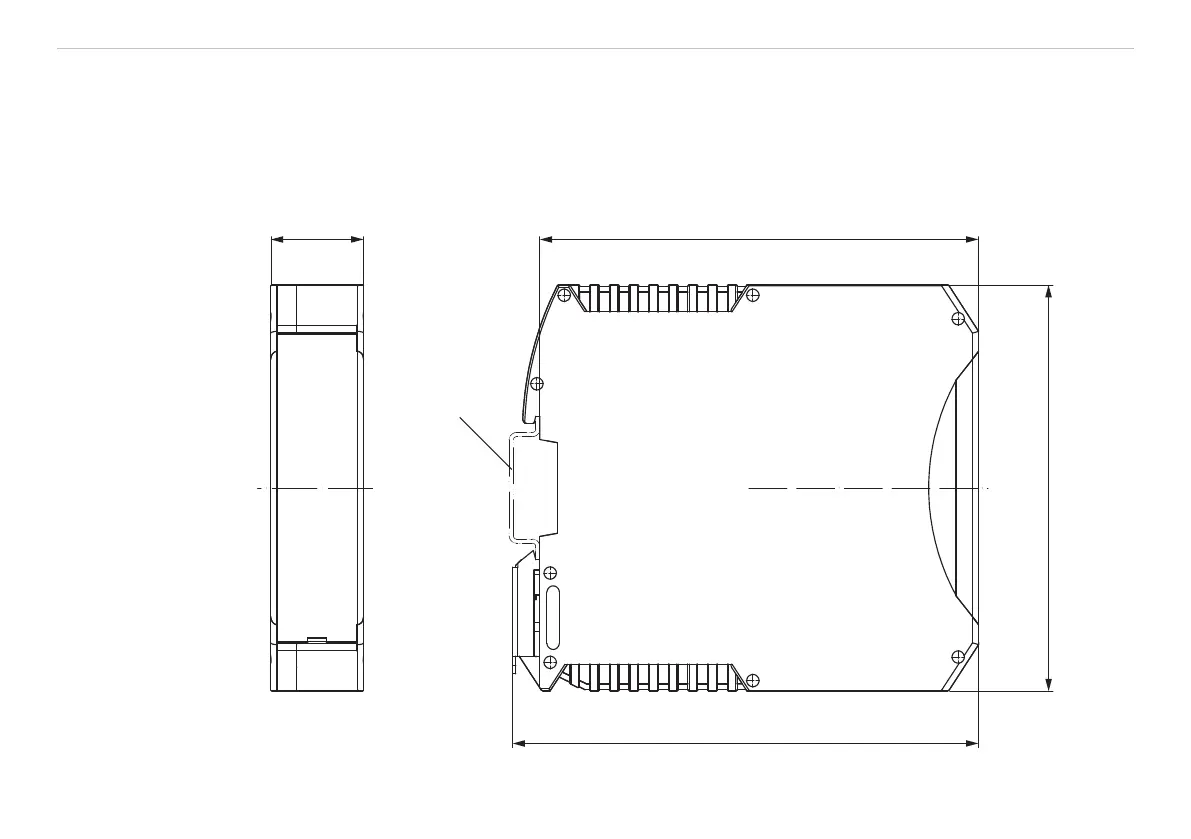

Fig. 1 IF2030/ENETIP dimensional drawing, dimensions in mm (inches)
