MICRO-EPSILON IF2030/ENETIP - Connection Options

Page 13
Installation and Assembly
IF2030/ENETIP
4.2.2 Connection Options
ACS7000
IFC24x1, IFC242x
ILD1320, ILD1420
ILD1750
ILD1900
ILD2300
ODC2520
Cable
CAB-M9-5P-St-ge; xm-PVC-RS422
SC2471-x/RS422/OE
Direct or PCF1420-x/I/U
PC1700-x/OE
Sensor/
Controller
PC2300-x/OE
PC/SC2520-x
RS485 RS422
ACC5703
DT6120
INC5701
PCx/8-M12
Cable
SCAC3/6
PCx/8-M12
Sensor/
Controller
PC1900-x/OE
MSC7602
MSC7602
Connector kit
The length of the cable
between IF2030/ENETIP
and sensor/controller is 10
m at most. Because of the
PCx/8-M12 cable, the sensor
supply for ACC5703 and
INC5701 sensors is possible
only via the IF2030/ENETIP.

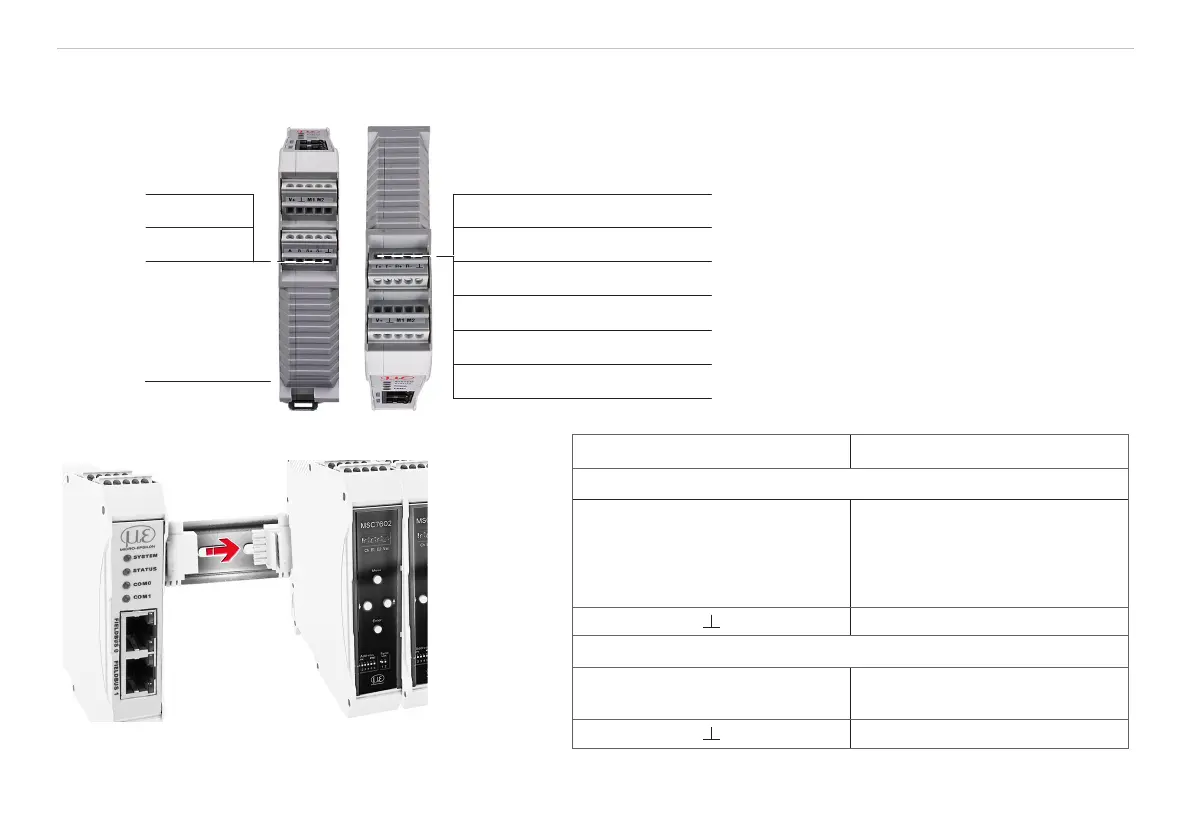

Fig. 5 Connection examples
for IF2030/ENETIP
IF2030/ENETIP Sensor/Controller
RS422
T+
T -
R+
R -
R+
R -
T+
T -
Cable shield
RS485
A
B
A
B
Cable shield
Fig. 6 Connection of an MSC7602 with MSC7602 connector kit
Fig. 7 Wiring regulation for connections with RS485 or RS422
