induSENSOR, EDS

Use an extractor pipe for dismounting, see Fig. 17.

Female thread in the extractor pipe: M24 x 1.5

Proceeding:

1. Unplug the adapter.

2. Release the grub screw

3. Screw on the extractor pipe on the sensor shaft and pull out the sensor from the cylinder.

Extractor pipe

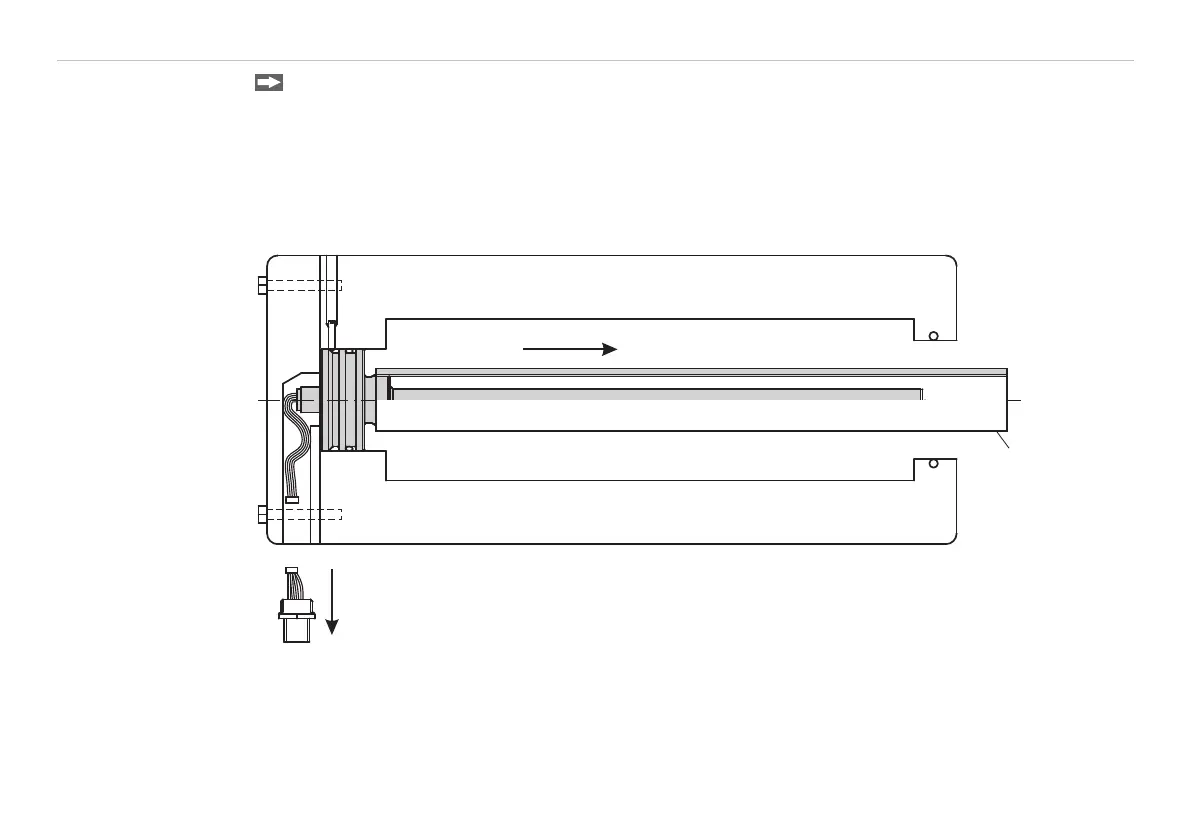

Fig. 17 Dismounting of the induSENSOR, model EDS- ... -Z
