Page 43

Electrical Installation

thermoIMAGER TIM

6. Electrical Installation

At the back side of the thermoIMAGER TIM you will find two connector plugs.

Please connect the supplied USB cable with the left plug.

The right connector plug is only used for the process interface.

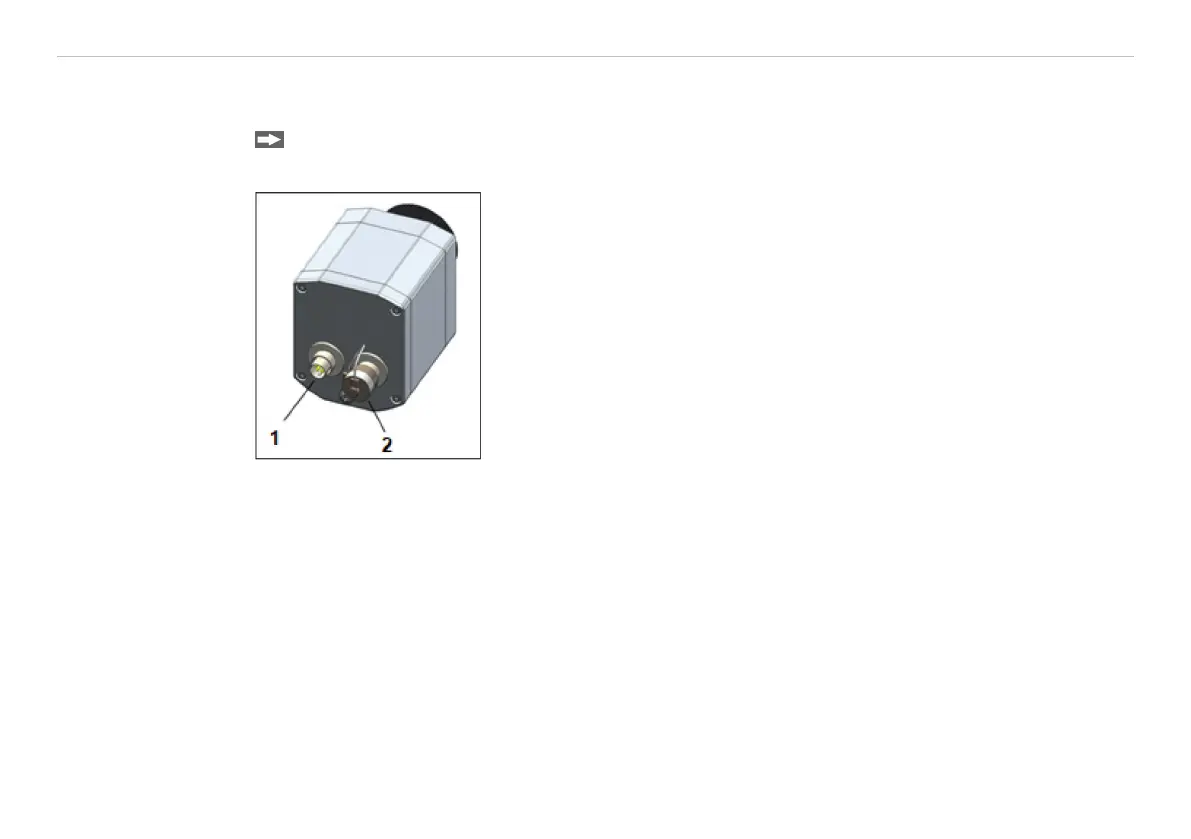

Fig. 16 Rear side of camera with connectors

1 Plug for USB cable

2 Plug for PIF cable

Default Chapter3
