Appendix | Process Interface
thermoIMAGER TIM
A 11 Process Interface
A 11.1 Analog Output
The maximum load impedance is 500 Ohm.
The analog output can be used as a digital output too. The current value for no alarm and alarm on is
set within the software.
A 11.2 Digital Input

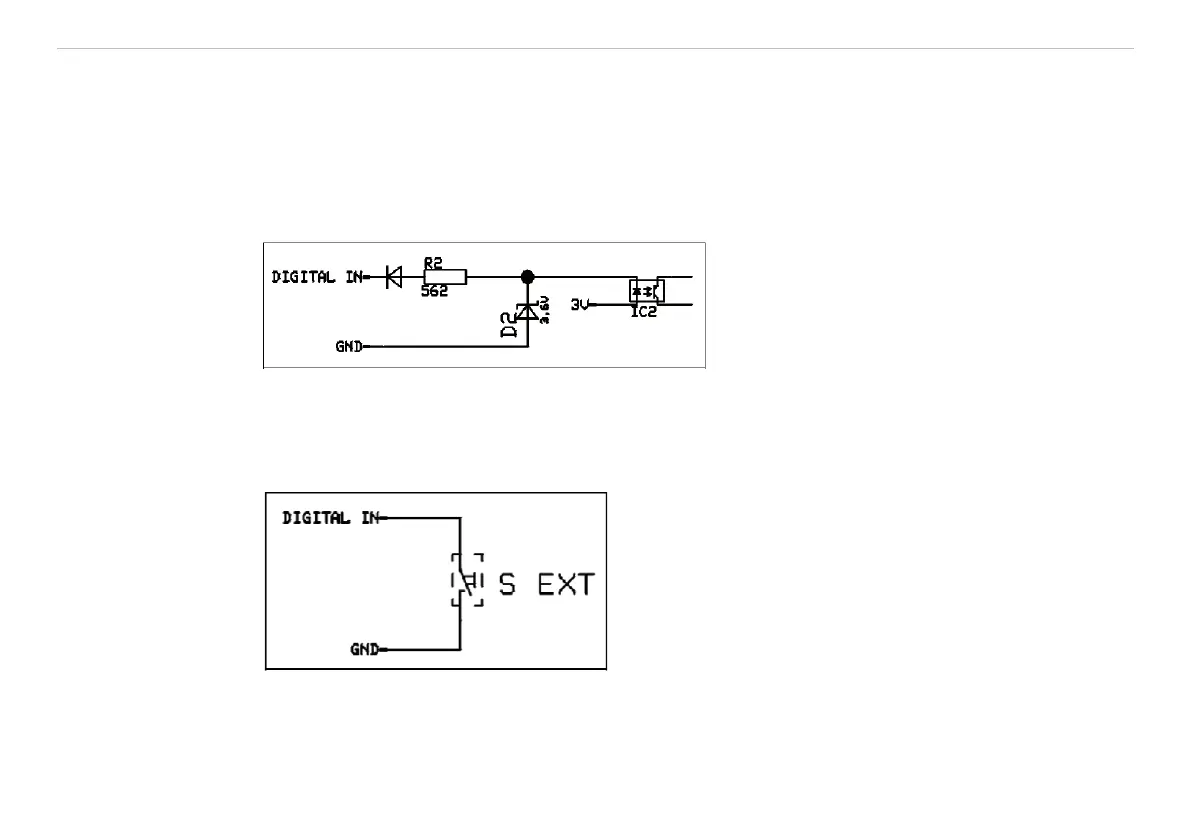

Fig. 43 Digital input
The digital input can be activated with a button to the TIM GND-Pin or with a low level CMOS/TTL – signal:
- Low level 0 … 0.6 V
- High level 2 … 24 V
Fig. 44 Digital input - button example
