Page 67
Appendix | Dimensions Cooling Jacket Advanced
thermoIMAGER TIM
A 2.3 Laminar Air Purge for Cooling Jacket
Laminar air purge for front mounting of the CoolingJacket Advanced (Standard and Extended). Two different
versions are available: One for standard IR camera applications (order no. TM-CJAAPLS-TIM, see Fig. 34)
and the other for line scanning applications (order no. TM-CJAAPLL, see Fig. 33).

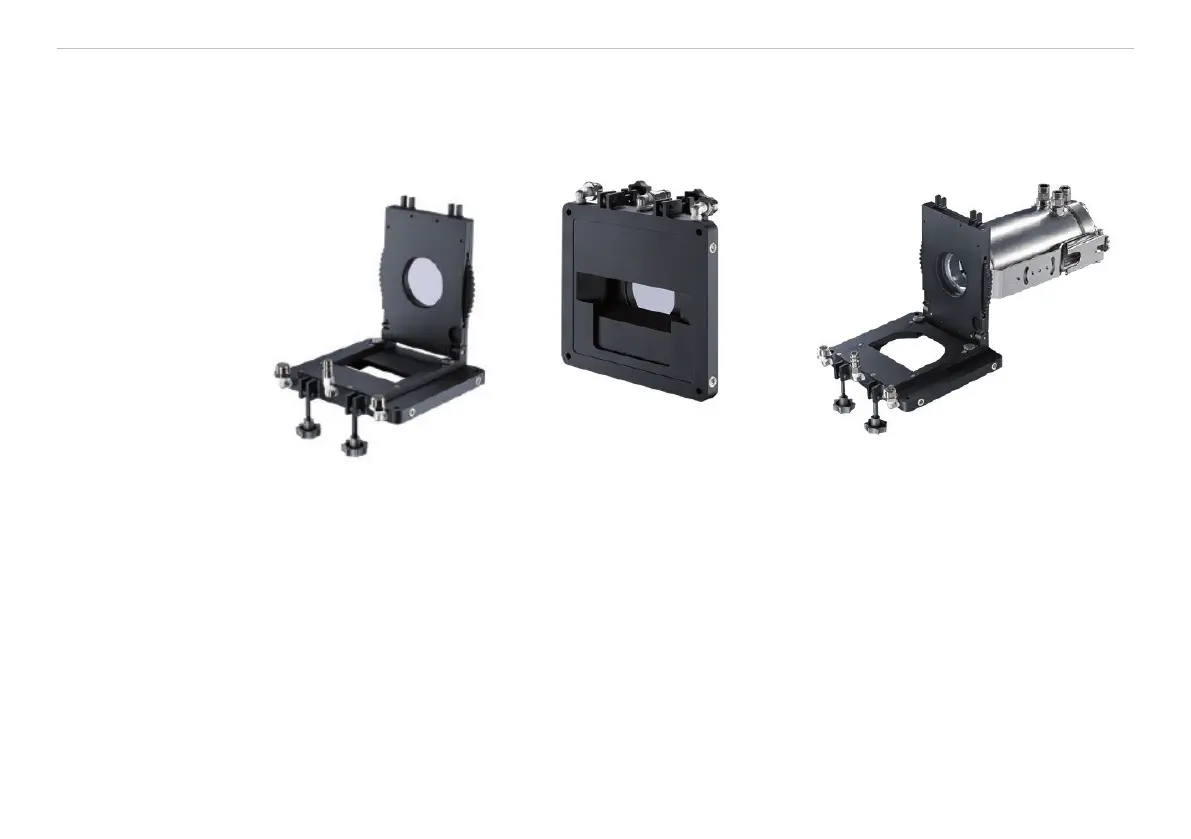

Fig. 33 TM-CJAAPLL Fig. 34 TM-CJAAPLS-TIM
Those two versions are fitting to all focusing units with production date ≥ 01/2018. A protective window
(67 x 3 mm) has to be ordered separately. If you like to mount the air purge on an older CJ, the focusing unit
should be exchanged to the current version.
