Anhydrous Ammonia (cont.)
Installation (cont.)

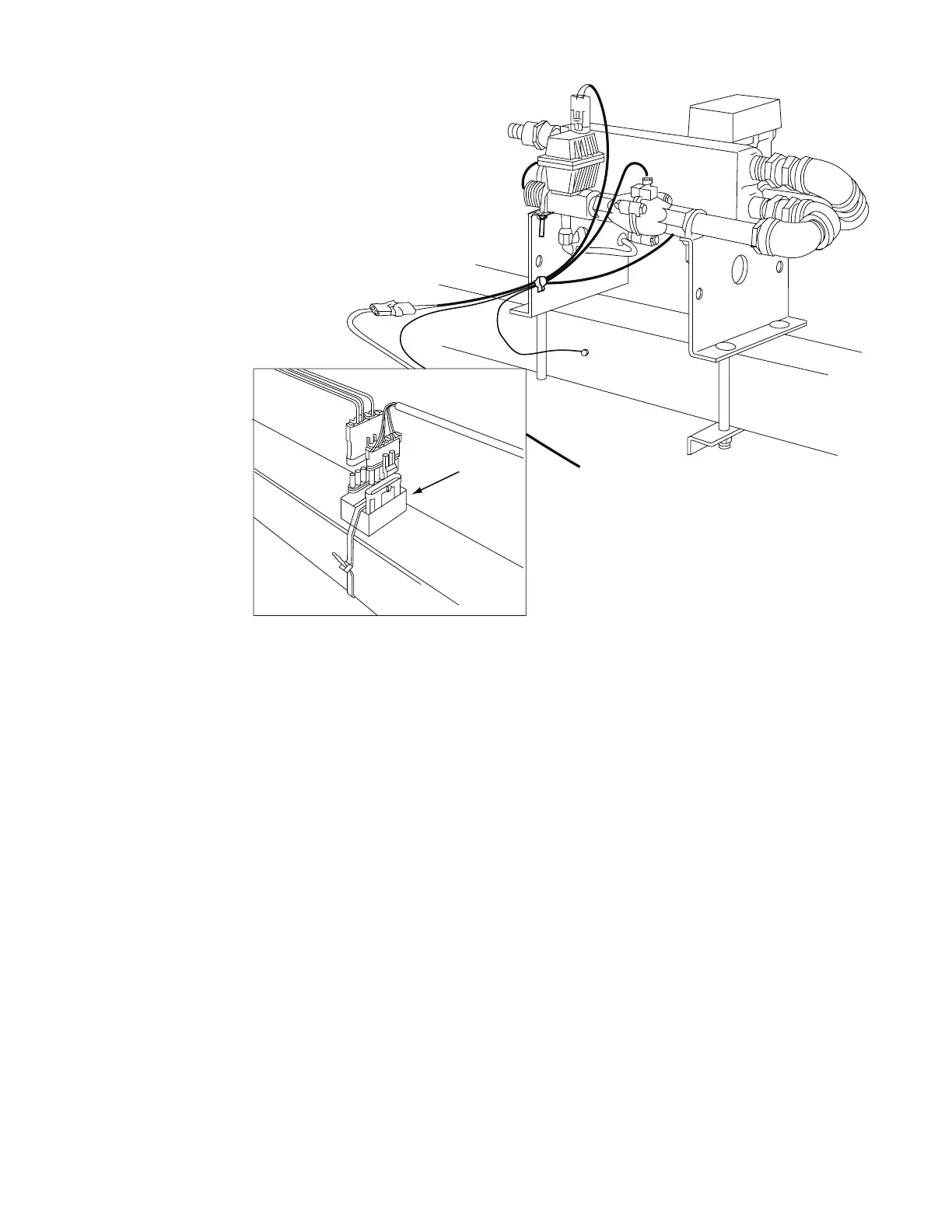

HOLD
CUTOUT
MODULE
PLUMBING
HARNESS
TO CONTROL
CONSOLE
BLUE
GROUND
SCREW
ELECTRICAL (cont.)
All electrical connections and wiring must be properly
secured and protected since they are essential for proper
operation of the shut-off valve.
The shut-off (electrical ball) valve is controlled by the boom
switch on the MT-3000 and by a separate switch in the
harness on the MT-5000 (left boom switch must be on).
