Setting Up and Starting the Part Queue
The Part Queue
4
v4.1.3, April 2012 Visionscape FrontRunner™ User’s Manual 4-5
2. Take control of the camera.
3. From the Edit window in FrontRunner™, click
4. Highlight the Inspection step in the Step Tree.
5. Click Show Advanced Datums, as shown in Figure 4–4.

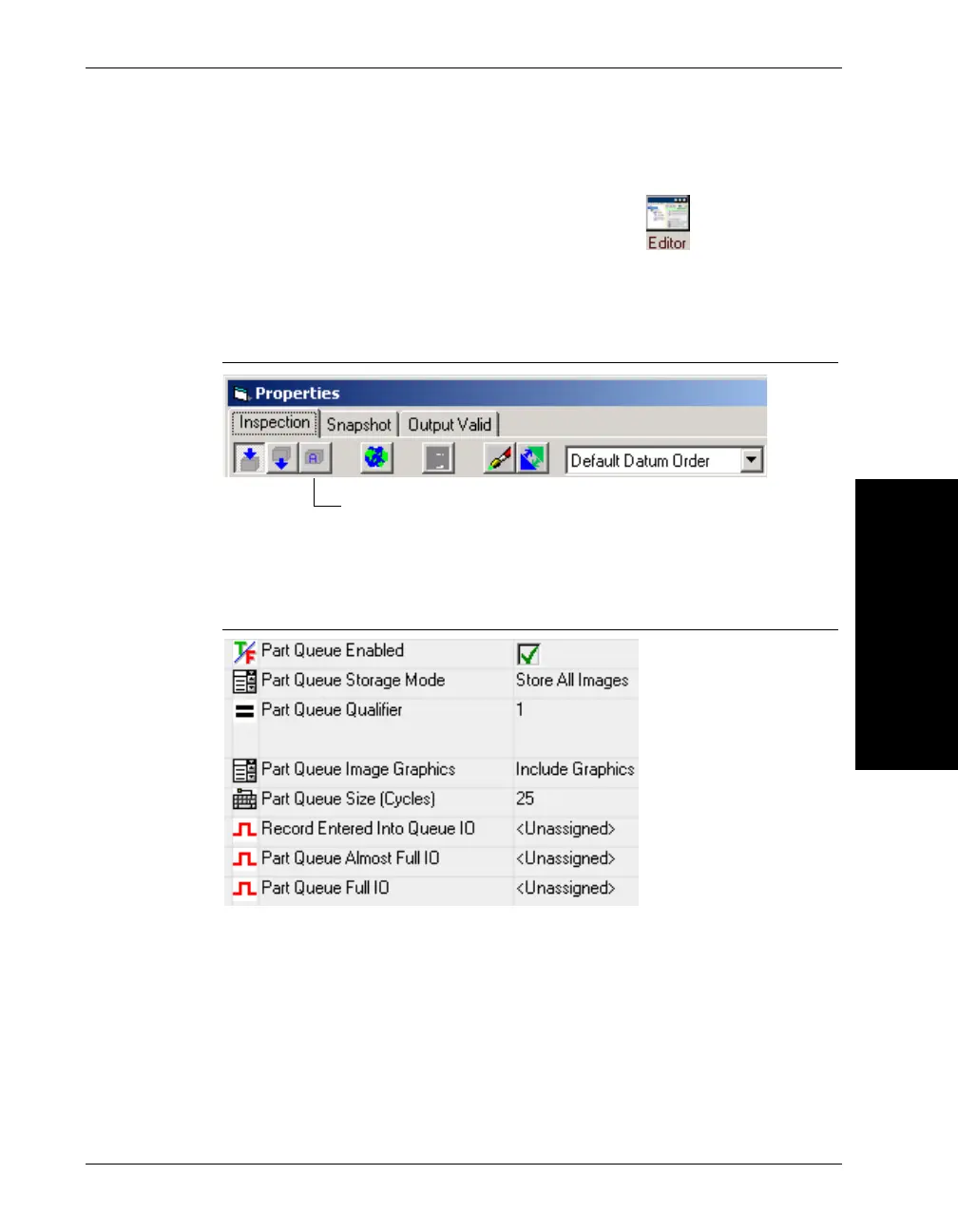

FIGURE 4–4. Show Advanced Datums Button
FrontRunner™ displays the Inspection Step properties page with the
Part Queue properties displayed, as shown in Figure 4–5.
FIGURE 4–5. Inspection Step Properties Page (Partial Page Displayed)
6. Click to the right of Part Queue Enabled to enable the Part Queue.
7. Click to the right of Part Queue Storage Mode and select Store
Qualified Images.
8. Click to the right of Part Queue Qualifier. FrontRunner™ displays a
text window and the Edit button to the right of Part Queue Qualifier, as
shown in Figure 4–6.
