Case 2b: Port-based VLAN (See Fig.2-4).

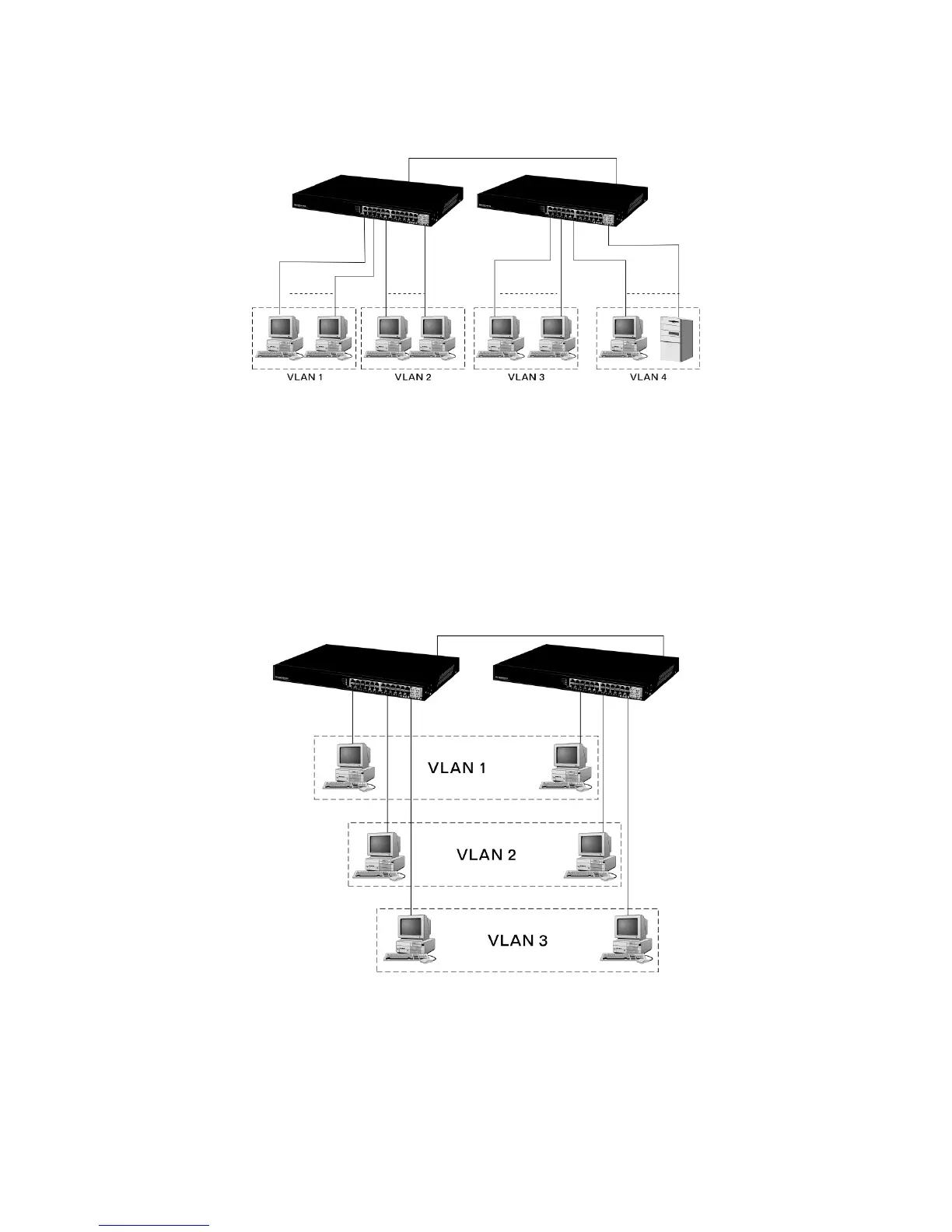

Fig. 2-4 Port-based VLAN Diagram
1. VLAN1 members could not access VLAN2, VLAN3 and VLAN4 members.
2. VLAN2 members could not access VLAN1 and VLAN3 members, but they could ac-
cess VLAN4 members.
3. VLAN3 members could not access VLAN1, VLAN2 and VLAN4.
4. VLAN4 members could not access VLAN1 and VLAN3 members, but they could ac-
cess VLAN2 members.
Case3a: The same VLAN members can be at different switches with the same VID
(See Fig. 2-5)
Fig. 2-5 Attribute-based VLAN Diagram
