SH-HC30 Height Controller System Manual
25-pin connector and 9-pin connector see Table 3-1, Table 3-2 and Table 3-3
Hei
g
htcontroller
Voltage divider board
Plasma Power Supply
The back of numerical control system

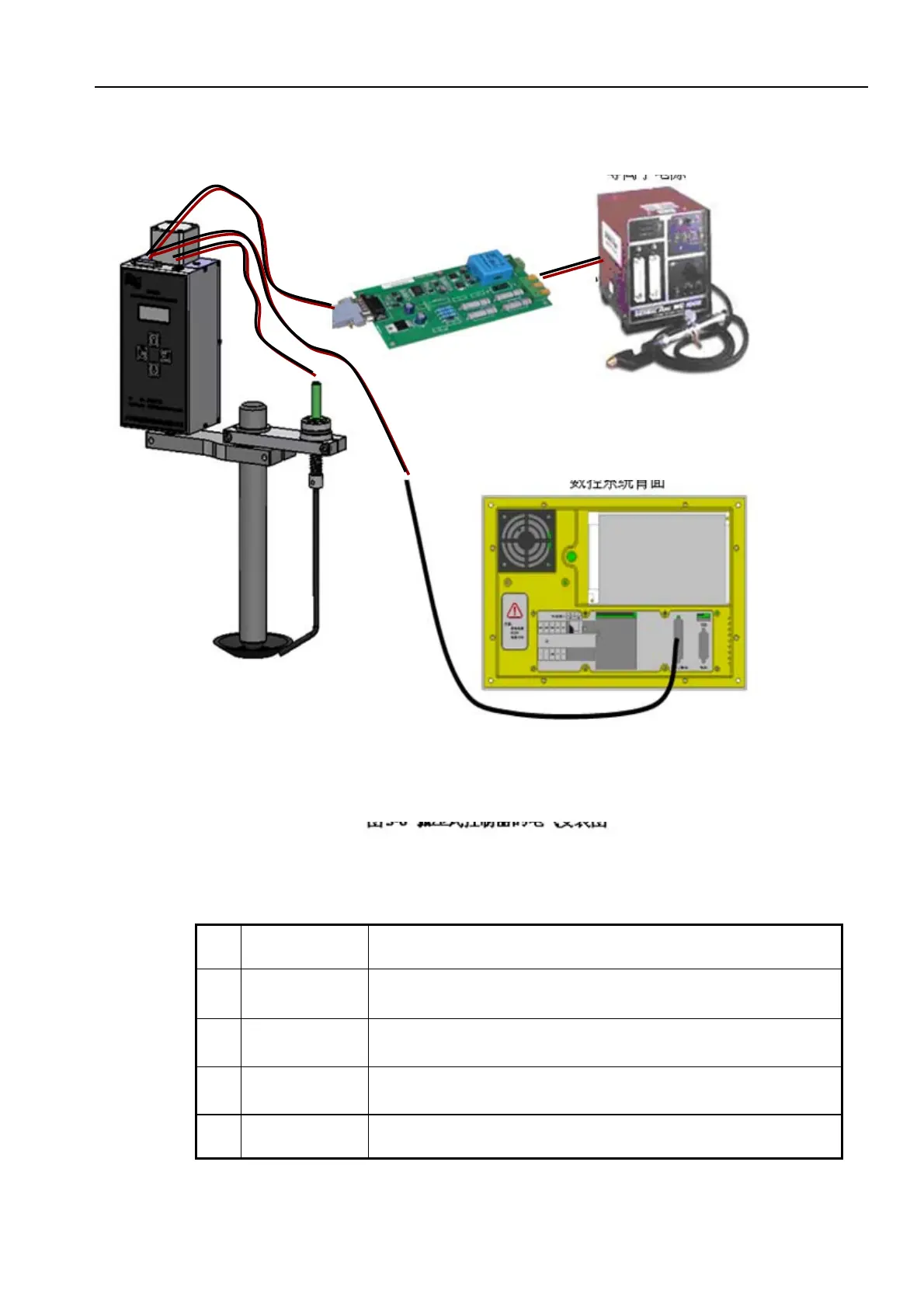

Figure 3-8 Electrical installation diagram of arc voltage controller
Table 3-3 The pin definition of 9-pin connector of voltage divider board
No. Property Description
2 Power supply V ground, height controller power supply
5 Power supply V ground, height controller power supply
6 Output Arc voltage signal, height signal of the plasma cutting nozzle
9 Output Power supply 24 V positive, height controller power supply
Page
11
