SH-HC30 Height Controller System Manual
Note: Those that do not list the pin serial number will not be used.
Connecting to voltage d
ivider boar
Connecting to height controller
Connecting to numerical control system
9‐pinconnectorofvoltagedividerboard
25‐pinconnectorofnumericalcontrolsystem
15‐pinconnectorofheight

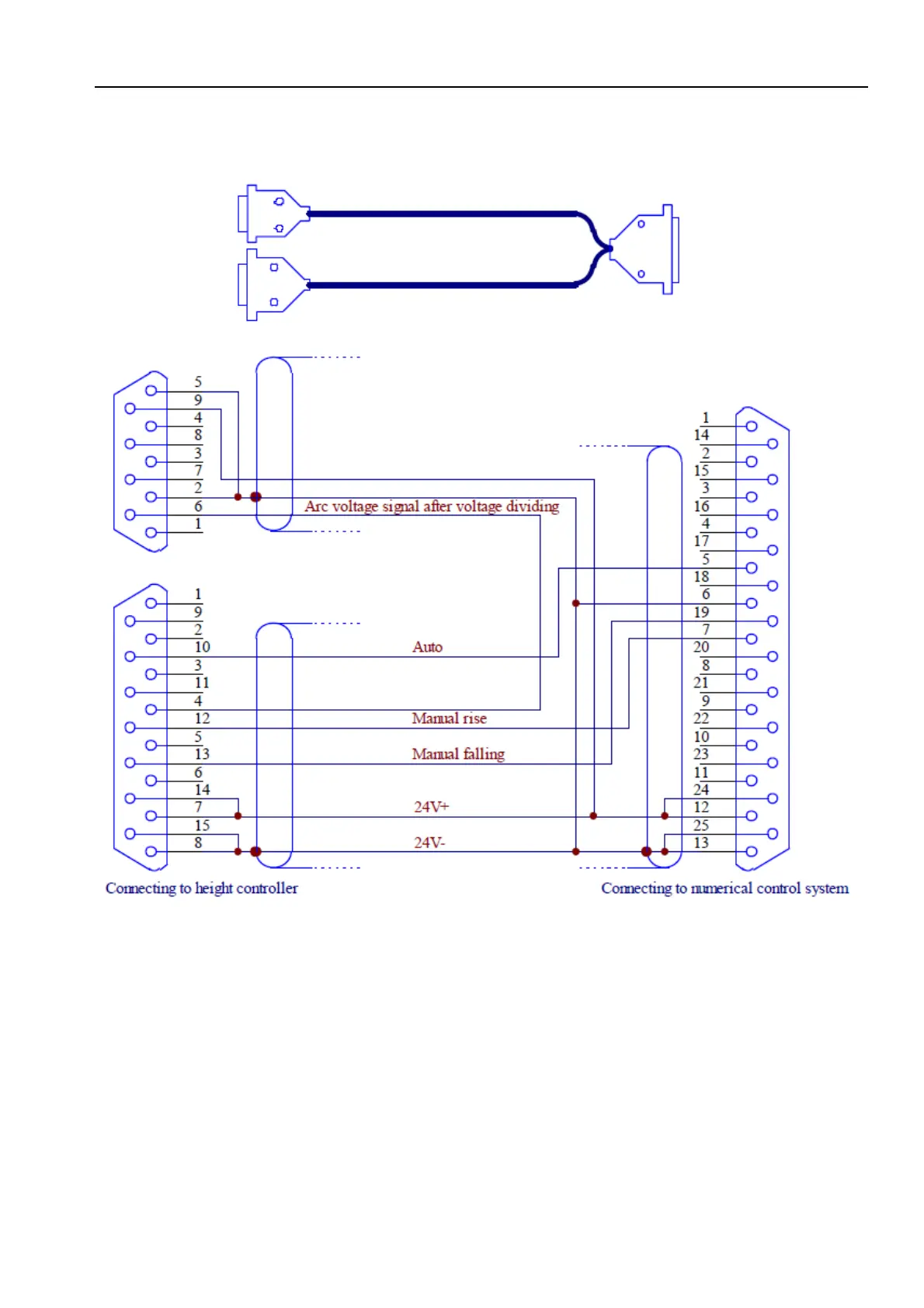

Figur
e 3-9 Wiring diagrams of arc-type height controller, voltage divider board and numerical control system
Note: The wire diameter of 24V power cord and ground wire should be greater than 0.5 square millimeter.
Page
12
