Aqua tempo power series tropical air-cooled scroll chiller 50Hz MCAC-ATSM-2014-09
110
2.8 Control software

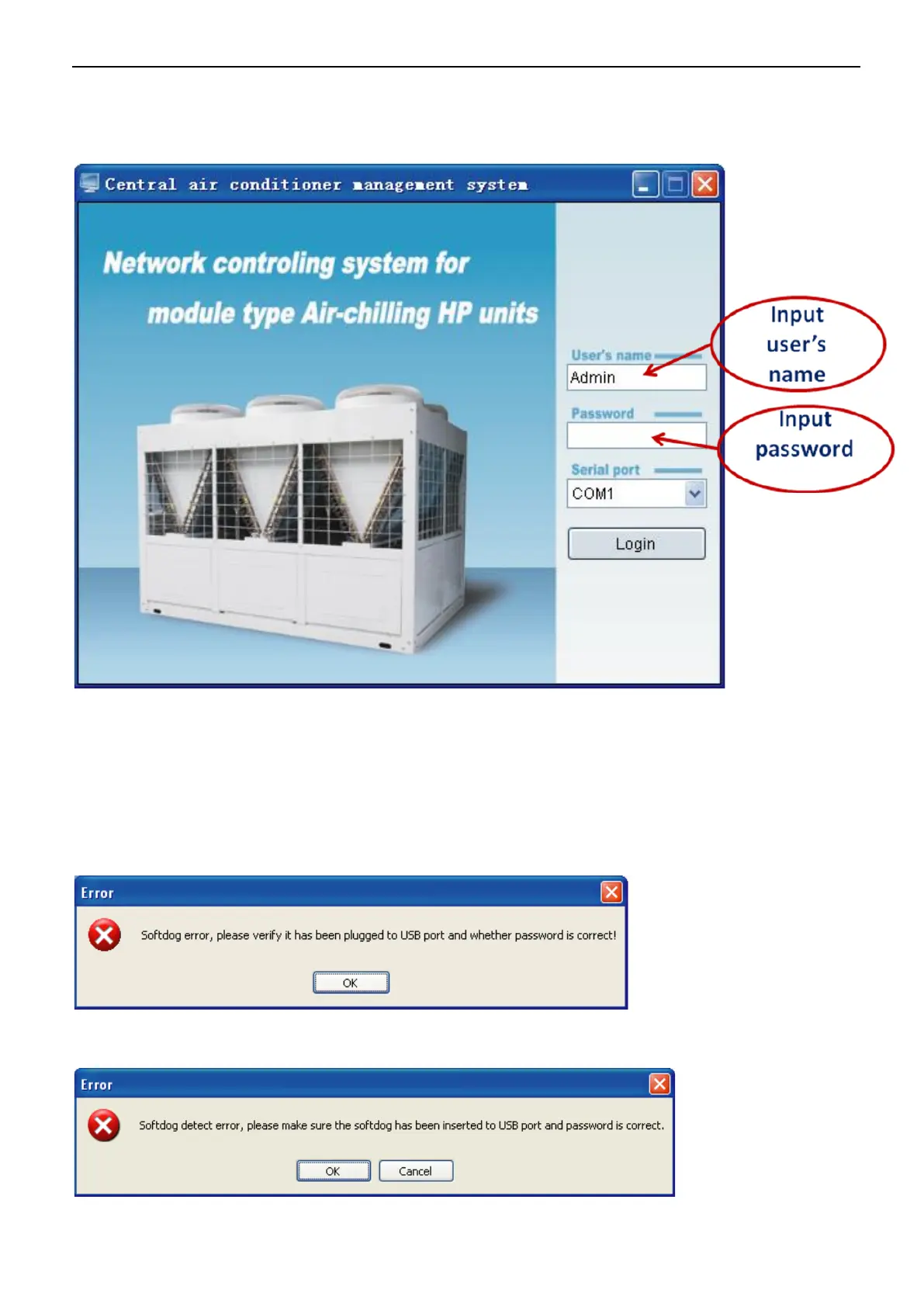

a. Interface introduction
1）The LOGIN window as above picture.
2）User need to input the name and password (default name: Admin, default password: Admin); user’s name
and password could be changed after login.
3）Select the computer serial port. The system default selection is COM1 (the software will checkout the
available serial ports in the computer automatically, and will list them at the Optional Table).
4）When login on, you must insert the Softdog provided by manufacturer to the computer, otherwise, cannot
be login the system and the window as Fig.4-1 ,and the Softdog Error would show as follows.
5）Be sure the softdog has been inserted to USB port all the time while the software is running, otherwise the
softdog error dialogs displays as Fig.4-2.
To Next Page
