Midea MGBT-F30W/RN1 User Manual

MCAC-ATSM-2014-09 Aqua tempo power series tropical air-cooled scroll chiller 50Hz
21
No.
Name
No.
Name
1
Top cover
5
Compressor
2
Air outlet
6
Electric control box
3
Air inlet
7
Water inlet
4
Water outlet

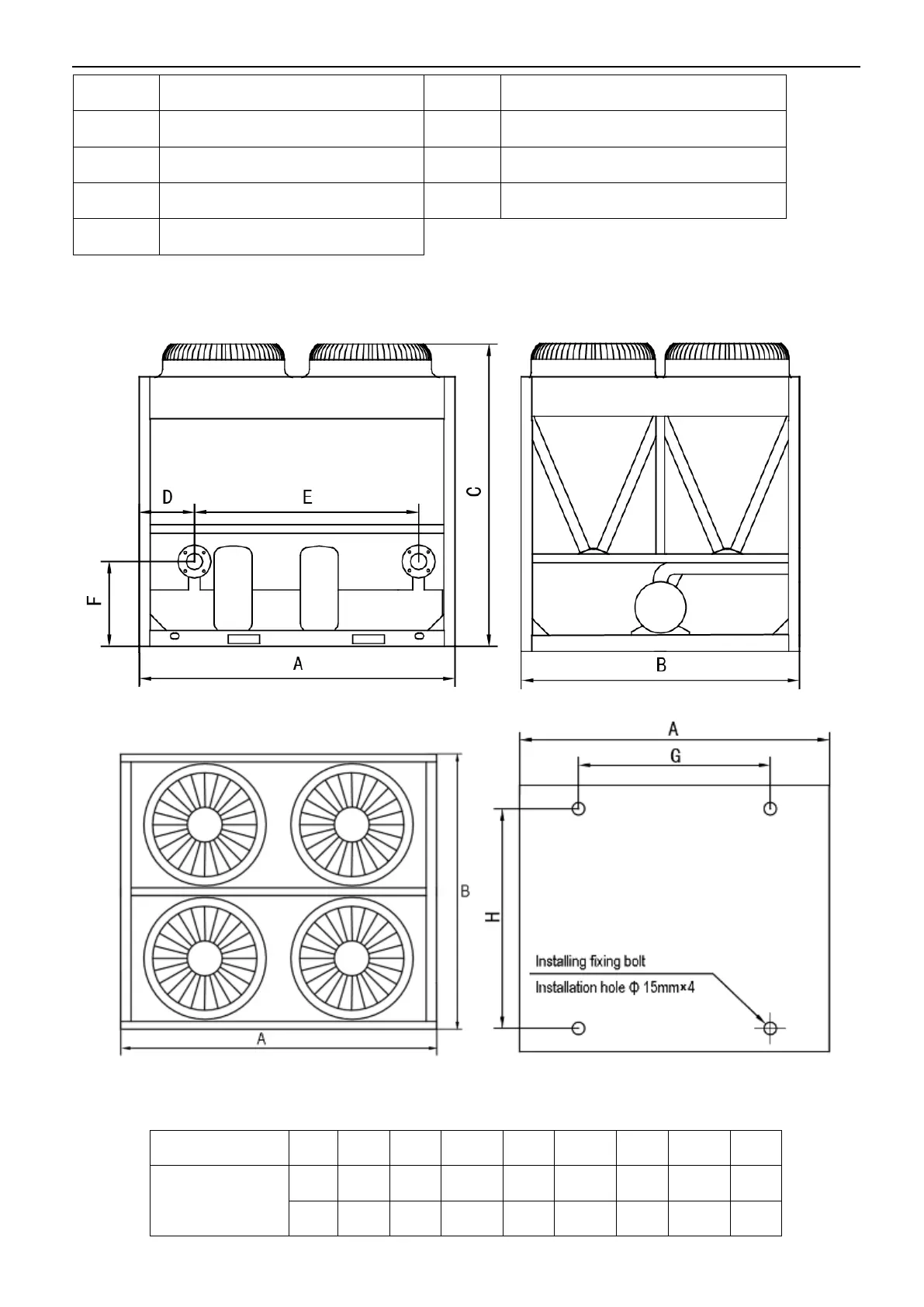

1.14 Outlook drawing: MGBT-F120W/RN1
Front view Side view
Top view Anchor hole
:
Model
Unit
A
B
C
D
E
F
G
H
MGBT-F120W/RN1
mm
2000
1685
2080
350
1420
506
1550
1586
inch
78.74
66.34
81.89
13.78
55.91
19.92
61.02
62.44
