Aqua tempo power series tropical air-cooled scroll chiller 50Hz MCAC-ATSM-2014-09
172
3.3 MGBT-F120W/RN1

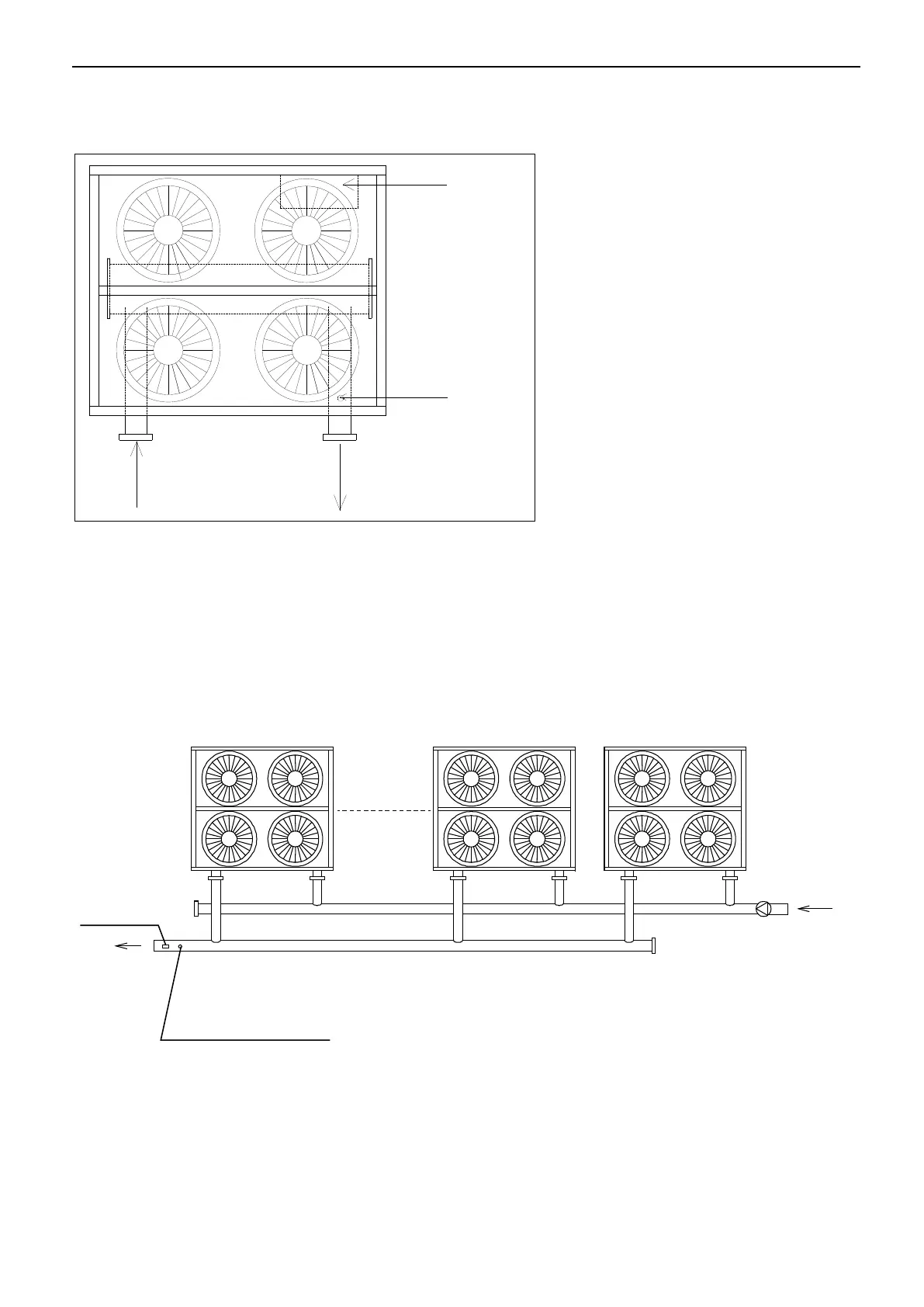

Installation of single-module water system pipeline
Electric control box
Total water outlet
temp sensor
Water intlet
Water outlet
Installation of multi-module water system pipeline
1) Installation mode I (recommended installation mode)
n : the module quantity, max8
No.1 unit
No.0 address(main unit)
No.n unit (n≤8)No.(n-1) unit
No.(2n-3) address No.(2n-1) address
No.1 address No.(2n-4) address No.(2n-2) address
Pump
Drill dead hole at the
position, and move the
total effluent temperature
sensor at No.0 address to
the position
Water flow switch
Installation mode A: less than 8 modules
2) Installation mode II
n : the module quantity, max8
