Aqua tempo power series tropical air-cooled scroll chiller 50Hz MCAC-ATSM-2014-09
24
4
Water outlet

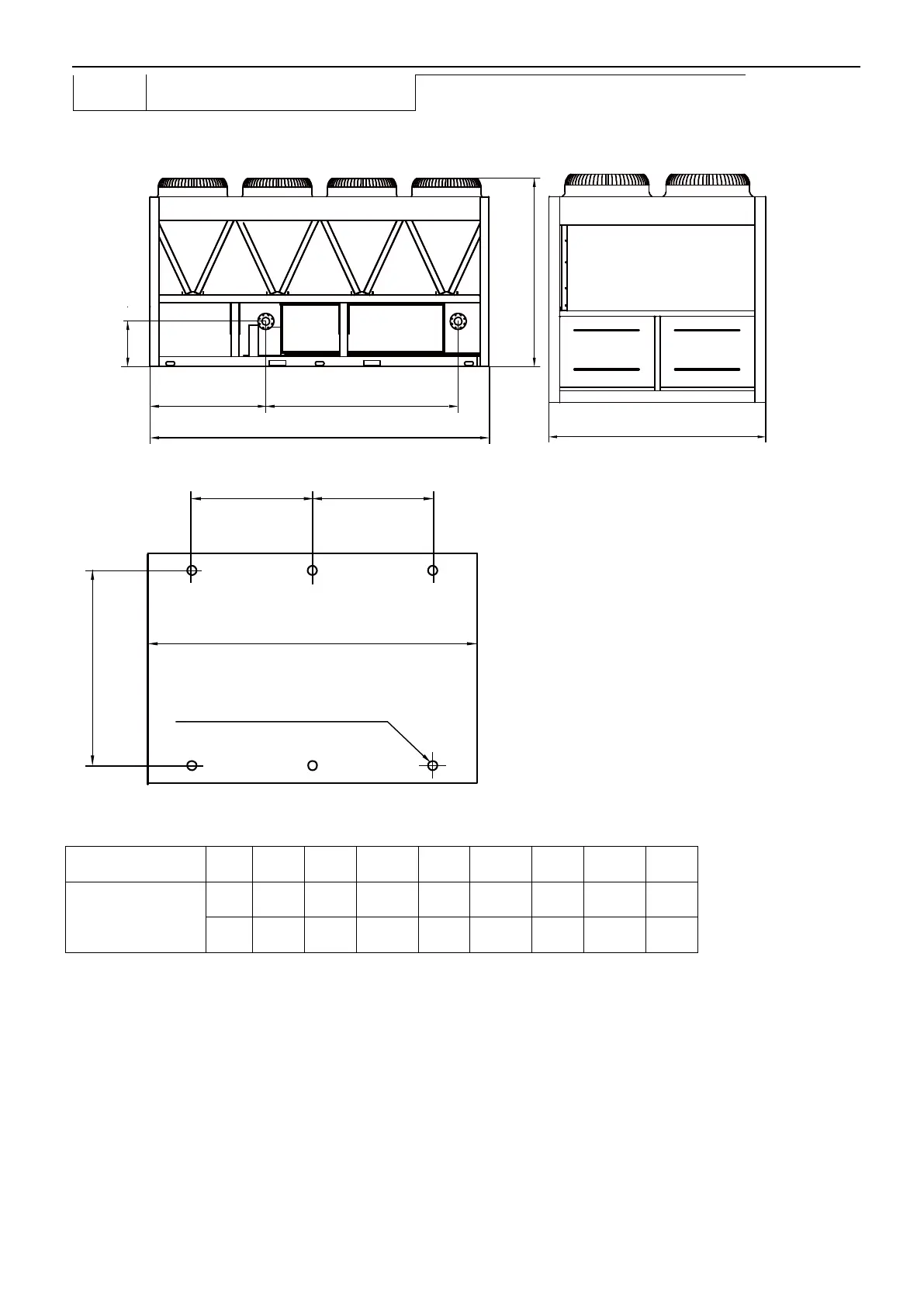

1.16 Outlook drawing: MGBT-F250W/RN1
Front view
E
A
C
F
D
Left view
B
Bottom view
H H
G
A
Hole for anchor boltΦ15
Model
unit
A
B
C
D
E
F
G
H
MGBT-F250W/RN1
Mm
3800
2000
2130
1235
2156
573
1888
1551
inch
149.6
78.74
83.86
48.62
84.88
22.56
74.33
61.06
