Aqua tempo power series tropical air-cooled scroll chiller 50Hz MCAC-ATSM-2014-09
170
3.2 MGBT-F(D)60W/RN1

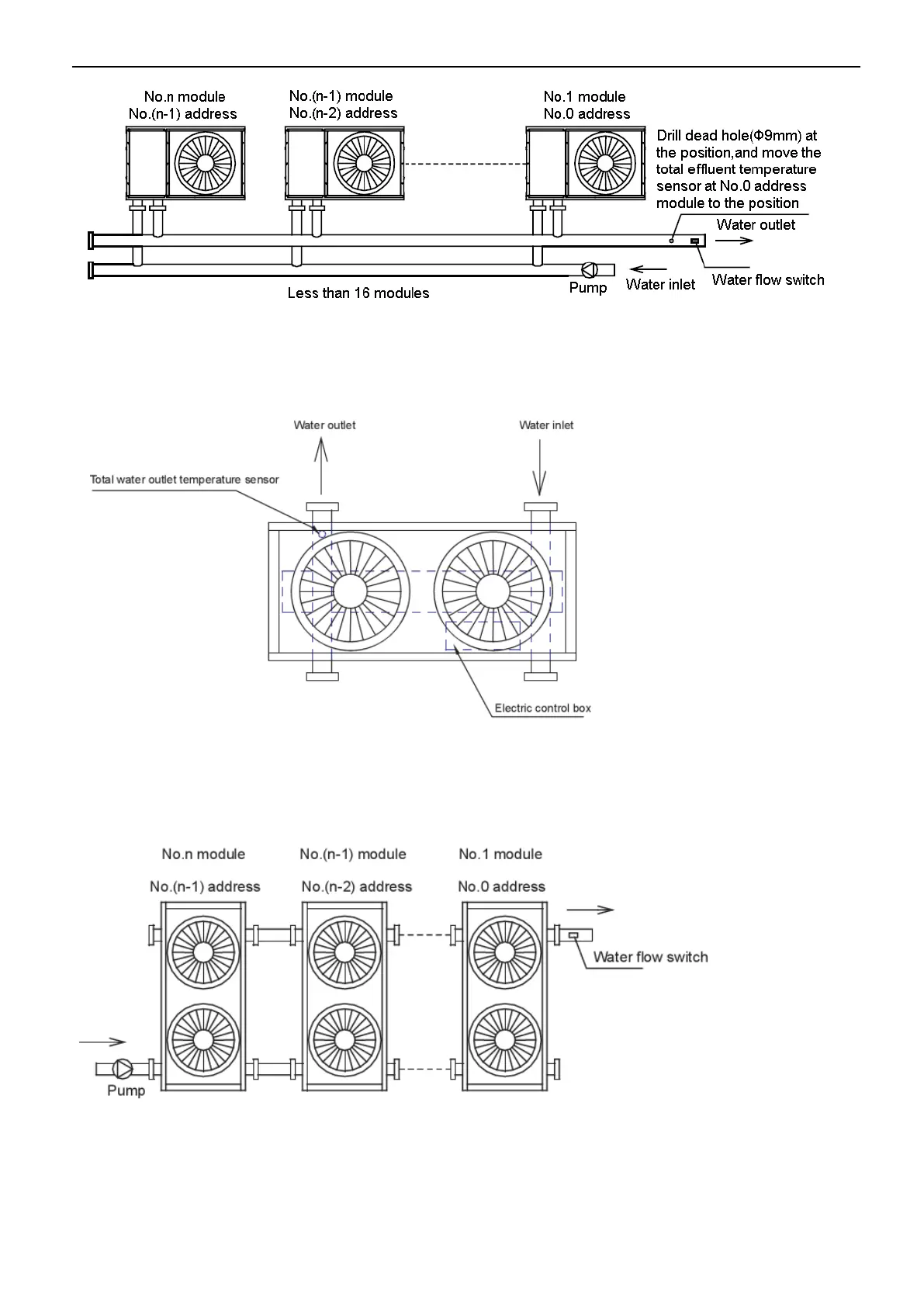

Installation of single-module water system pipeline
Installation of multi-module water system pipeline
1) Installation mode I (recommended installation mode)
n :the module quantity, max 6
Less than 6 modules
3) Installation mode III (recommended installation mode)
n :the module quantity, max 16
