Aqua tempo power series tropical air-cooled scroll chiller 50Hz MCAC-ATSM-2014-09
18

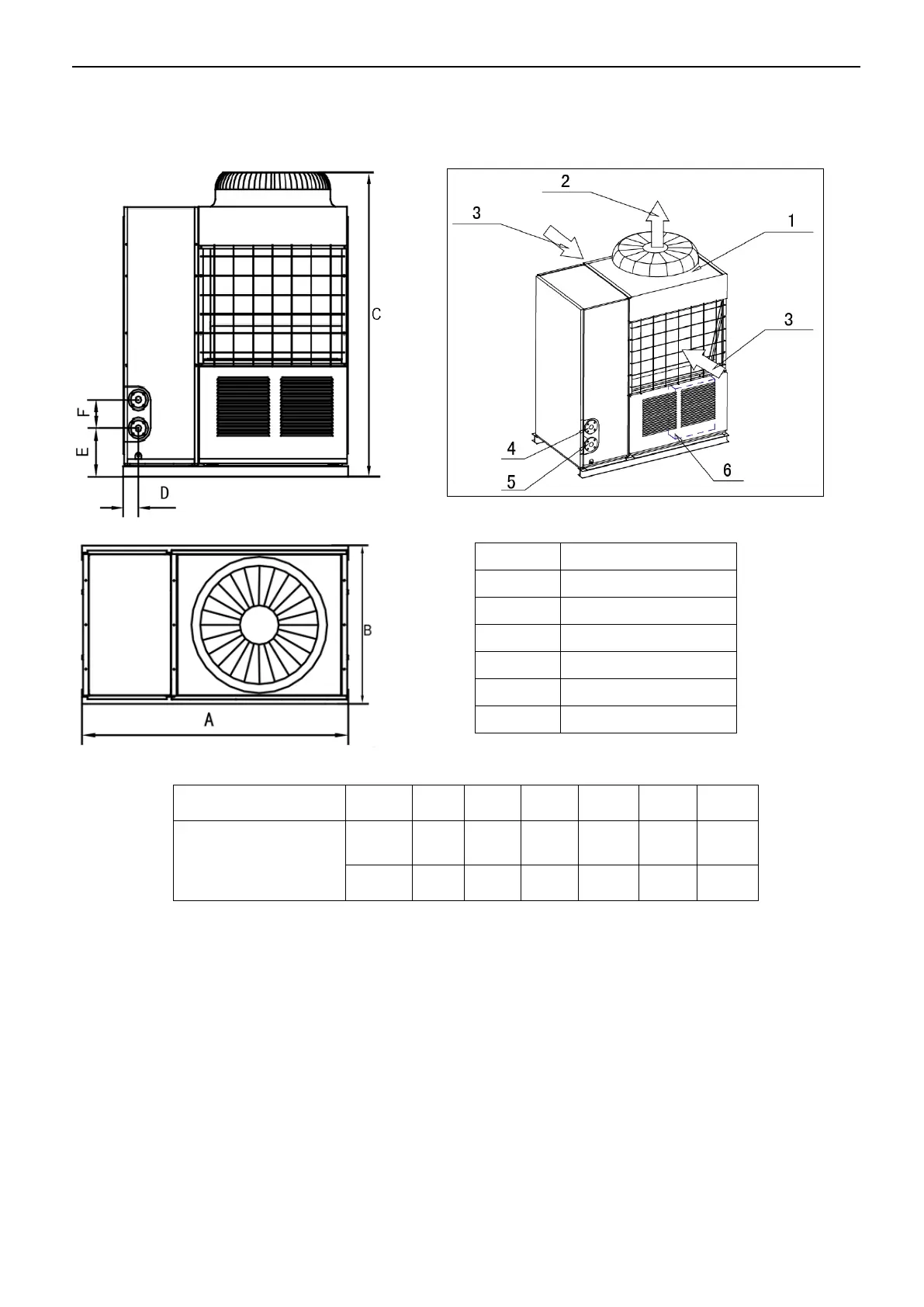

1.11 Outlook drawing: MGBT-F25W/RN1, MGBT-D25W/RN1, MGBT-D30W/RN1,
MGBT-F30W/RN1
Front view
Top view
Model
Unit
A
B
C
D
E
F
MGBT-F(D)25W/RN1
MGBT-F(D)30W/RN1
mm
1514
841
1865
115
315
172
inch
59.6
33.11
73.43
4.53
12.4
6.77
No.
Name
1
Top cover
2
Air outlet
3
Air inlet
4
Water outlet
5
Water inlet
6
Electric control box
