Aqua tempo power series tropical air-cooled scroll chiller 50Hz MCAC-ATSM-2014-09
114

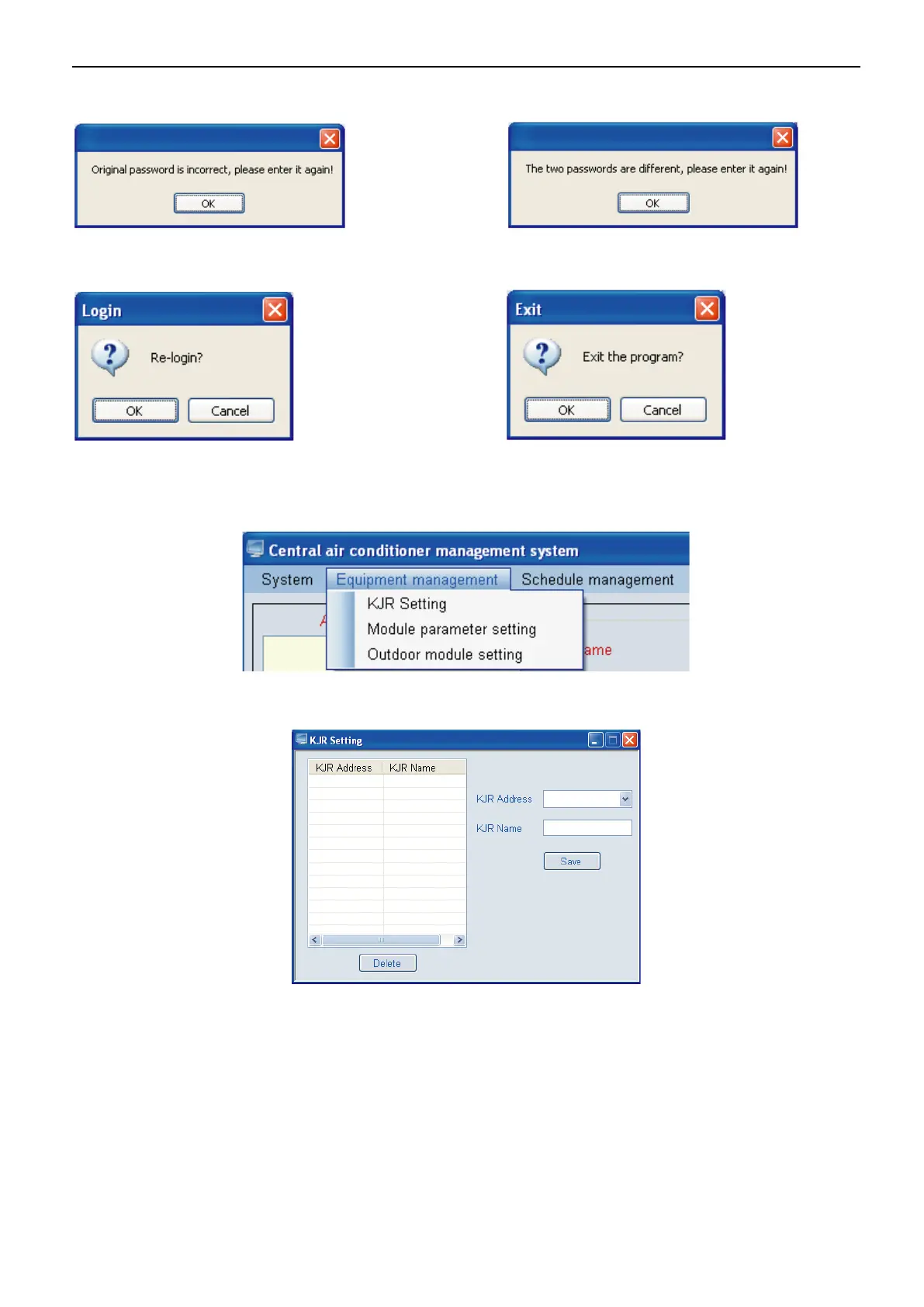

If input an old password error, window as Fig.4-14 will show; if the new passwords be input do not match, the
message box as Fig.4-15 will display.
②Click “Re-login”, window as Fig. 4-16 will display that interface ask user whether re-login the system, if yes,
please click “OK Click “Re-login”, system will close the main interface and enter to the login interface again.
③Click “Exit the program” to quit the program, while click “Cancel”, system will not quit，as Fig. 4-17.
2）“ Equipment management” includes：“ KJR Setting”、“Module parameter setting”、“Outdoor module
setting”,as Fig. 4-17.
○
1
.Click “KJR Setting”, the window as Fig. 4-20 will be display——add wired controller to the system to be
monitored.
Detail operation procedure as follows:
a、 Add a wired controller: Select the wired controller address (0-15) at the “KJR Address”, fill the wired
controller name at “KJR Name” and click “Save”.
b、 Modify wired controller: Select an existing wired controller (by click the drop down list of the KJR Address
at the left Chart or by click the drop down list of the KJR Address at the right), and re-fill the wired controller
name and click “Save” to finish the wired controller modification(see Fig. 4-21). KJR Name could not empty
or pure blank character string (pure blank charter string is composed by space and tab)
