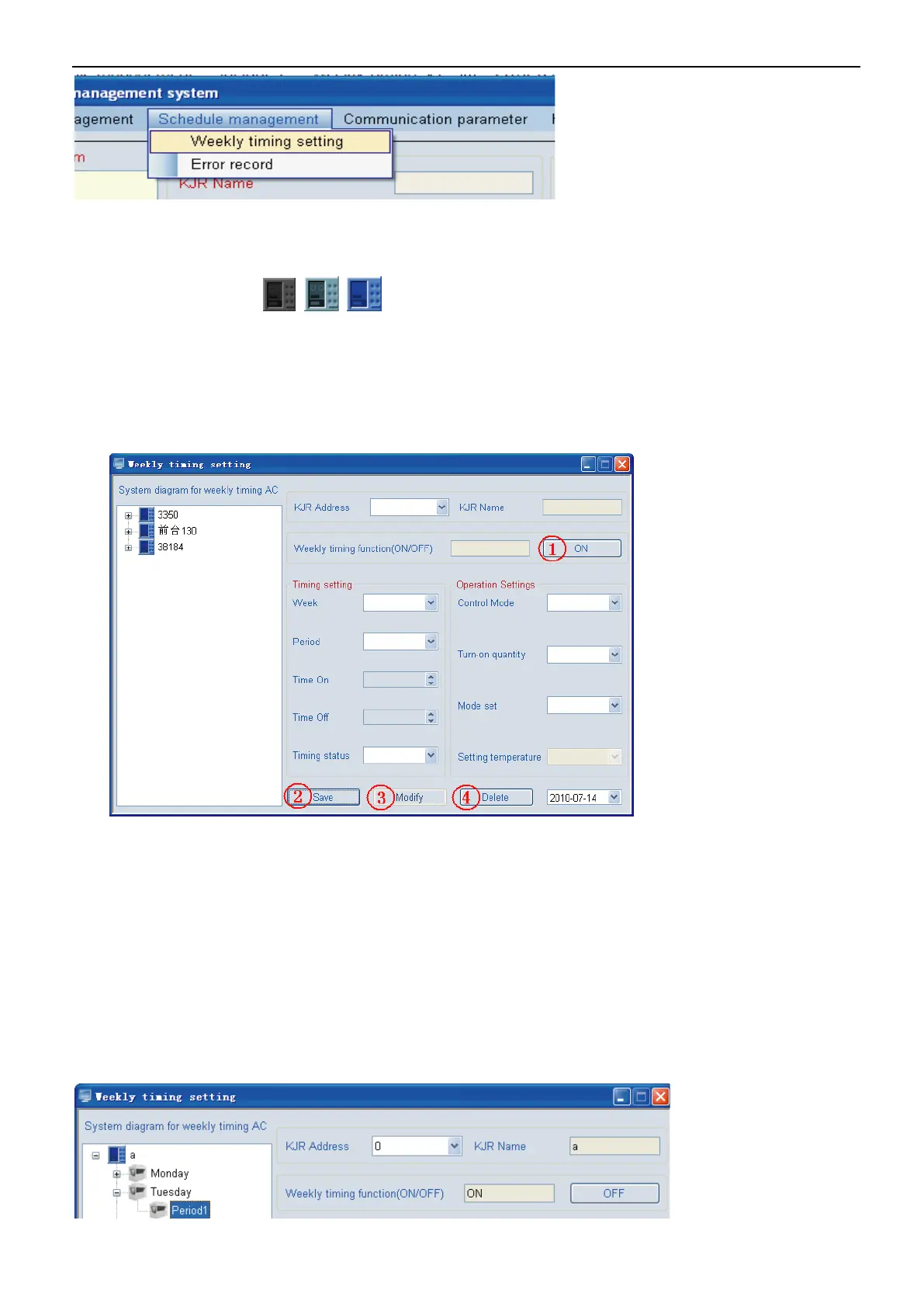

①Click “Weekly timing set” a window as Fig. 4-29 would pop up——finish the weekly schedule
management setting, each wired controller represents a refrigeration system; and the existing wired controller
is a wired controller has already been configured in the system.
Wired controller icons：
(1）Gray color represents Weekly Timing without set in this wired controller.
（2）Light green represents at less one Weekly Timing schedule has been set in this wired controller, without
schedule in activating.
（3）Blue color represents at less one Weekly Timing schedule has been set in this wired controller as well as
at less one of this schedule in activating.
a、KJR Address——Wired controller address, each wired controller represents one refrigeration system.
b、Weekly timing function―－Display the weekly set status in the current wired controller is ON or OFF (ON or
OFF could display as long as at least one weekly schedule has been set, otherwise, nothing would display.)
c、Detail weekly timing parameter―― Week, Period, Time On, Time Off, Timing Status, Control Mode,
Turn-on quantity, Mode set and Setting temp..
d、Timing ON/OFF key for controlling the weekly timing wired controller (See the ① key in the figure ) ――
when Weekly Timing Function is ON, the key shows OFF (see Fig. 4-30), once click the key, all weekly timing
function would be turned off, and then the Weekly Timing Function displays OFF, while the key shows ON
（see Fig. 4-31）; when Weekly Timing Function is OFF, the key shows ON (see Fig. 4-38), once click the key,
all weekly timing function would be turned on, and then the Weekly Timing Function displays ON, while the
key shows OFF （see Fig. 4-32）
