MCAC-ATSM-2014-09 Aqua tempo power series tropical air-cooled scroll chiller 50Hz
51

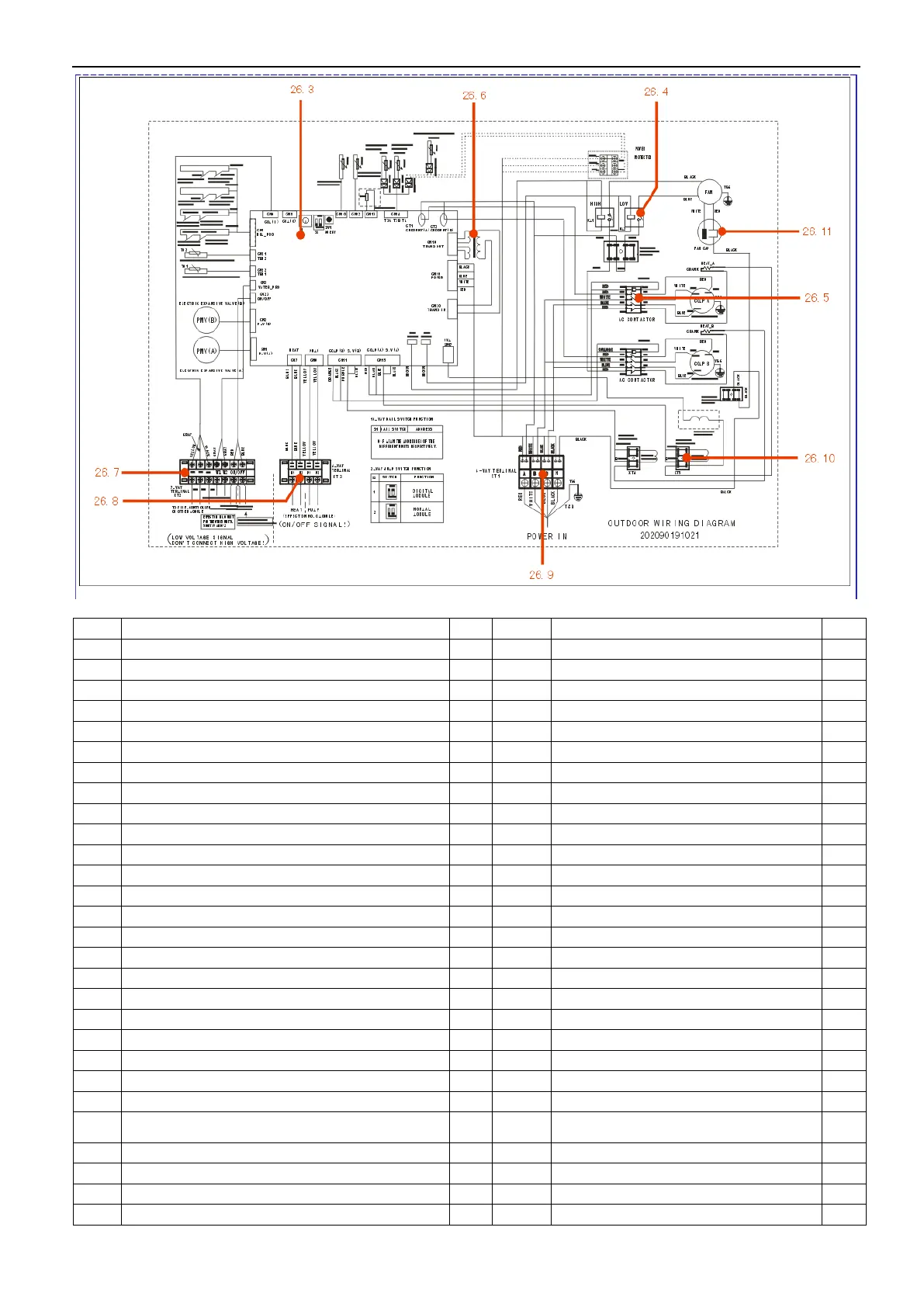

整机电路接线图
No.
Part Name
Qty
No.
Part Name
Qty
1
Net
2
26.4
Relay
2
2
Right seal plate ass'y D of condenser
1
26.5
Contactor
2
3
Tube heat exchanger
1
26.6
Transformer
1
4
Right seal plate ass'y A of condenser
1
26.7
7-terminal Block
1
5
Input pipe ass'y of unit B
1
26.8
Wire joint,4p
1
5.1
Electronic expansion valve
1
26.9
Wire joint
1
6
Input pipe ass'y II of unit B
1
26.10
Terminal block
4
7
Input pipe ass'y I of unit A
1
26.11
Capacitor
1
7.1
Electronic expansion valve
1
27
Scroll Compressor
1
8
D machines take over the assembly solenoid valve
1
28
Drainage pan holder
2
8.1
Pressure-relief-valve
1
29
Electronic control box door
1
9
Output pipe ass'y of unit A
1
30
Welding parts water tray
1
10
Four-way valve ass'y of unit A
1
31
Sensor clamp
1
10.1
Four-way valve set
1
32
Condenser components of unt A
1
10.3
Meter connector
3
33
Cover
1
10.4
Muffler
1
34
Ass'y C of left seal plate,condenser
1
11
Input pipe ass'y II of unit A
1
35
Condenser components of unit B
1
12
Four-way valve ass'y of unit B
1
36
Motor holder
2
12.1
Four-way valve set
1
37
Side sealed board
7
12.2
Meter connector
3
38
Clapboard supporting board
3
12.3
Muffler
1
39
Motor bracket bonding parts
1
13
Suction pipe ass'y A
1
40
Cover
2
13.1
Meter connector
1
41
Motor
1
14
Suction pipe ass'y of unit D
1
42
Axial fan
1
14.1
Meter connector
1
43
Top cover
1
15
Support board
2
44
Middle partition plate
1
16
Cover
1
45
Top cover
1
17
Compressor's cover
2
46
Sealed board
1
