Midea MGBT-F30W/RN1 User Manual

Aqua tempo power series tropical air-cooled scroll chiller 50Hz MCAC-ATSM-2014-09

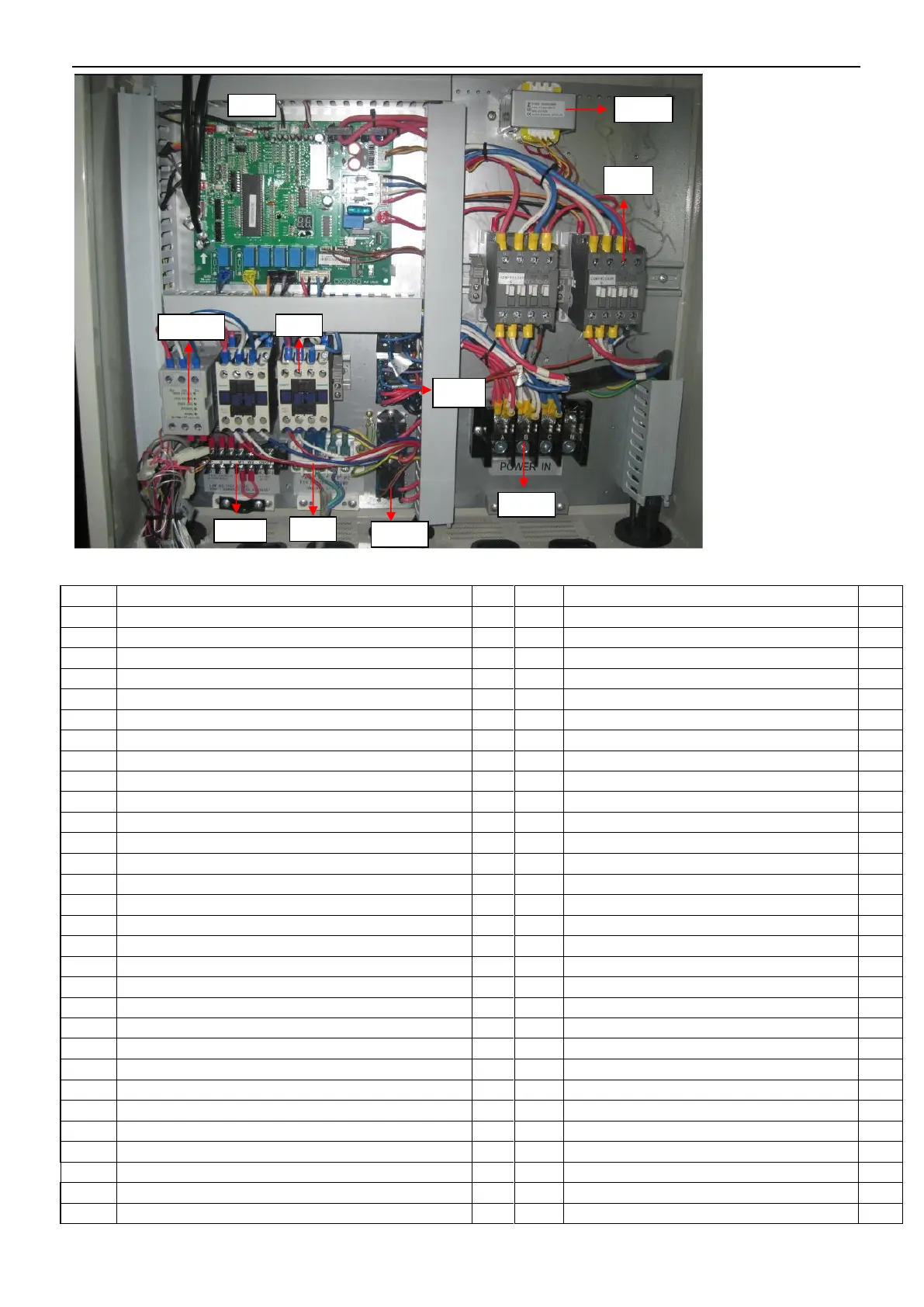

60
21.1
21.2
21.3
21.4
21.5
21.6
21.7
21.8
21.9
21.10
No.
Part Name
Qty
No.
Part Name
Qty
1
Condenser fixed plate ass'y of unit A
1
28
A machine back to the tube components
1
2
Condenser side board
2
29
B machine back to the tube components
1
3
A unit condenser ass'y
1
30
A unit four-way valve assembly machine
1
4
B unit condenser ass'y
1
30.1
Four-way valve kit (RoHS)
1
5
Mid horizontal support
2
30.2
Pressure controller
1
6
Fixed board
2
30.3
Pressure switch
1
7
Mid upright support
2
30.4
Meter connector
2
8
Capacitor card
2
31
B-way valve assembly
1
9
A unit evaporator input pipe ass'y
1
31.1
Four-way valve kit (RoHS)
1
10
B unit evaporator input pipe ass'y
1
31.2
Pressure controller
1
11
Cover
1
31.3
Pressure switch
1
12
Cover
1
31.4
Meter connector
2
13
Triangle reinforcement ass'y
8
32
Drainage pan ass'y
1
14
Reinforcement board
4
33
Middle partition plate
2
15
Base
1
34
Net
2
16
Compressor
2
35
Net
4
17
Cover
1
36
Top upright support
2
18
Wiring terminal fixing board
1
37
Condenser seal connector
1
19
Cover
1
38
Top cover
2
20
Cover
1
39
Axial fan
2
21
electronic control box assembly of Air-cooled module
1
40
Motor mounting plate welded
2
21.1
Air-cooled module control board components
1
41
Three-phase asynchronous motor
2
21.2
Relay
2
42
Mid horizontal support
2
21.3
AC contactor
2
43
Motor bracket ass'y
4
21.4
AC contactor
2
44
Condenser seal connector
1
21.5
Transformer
1
45
Compressor wire joint
2
21.6
7-terminal Block
1
46
Condenser fixed plate ass'y of unit B
1
21.7
Wire joint,4p
1
47
EXV solenoid coil
2
21.8
Wire joint
1
48
Discharge temperature sensor
2
21.9
Terminal block
3
49
Room temperature sensor ass'y T41
1
