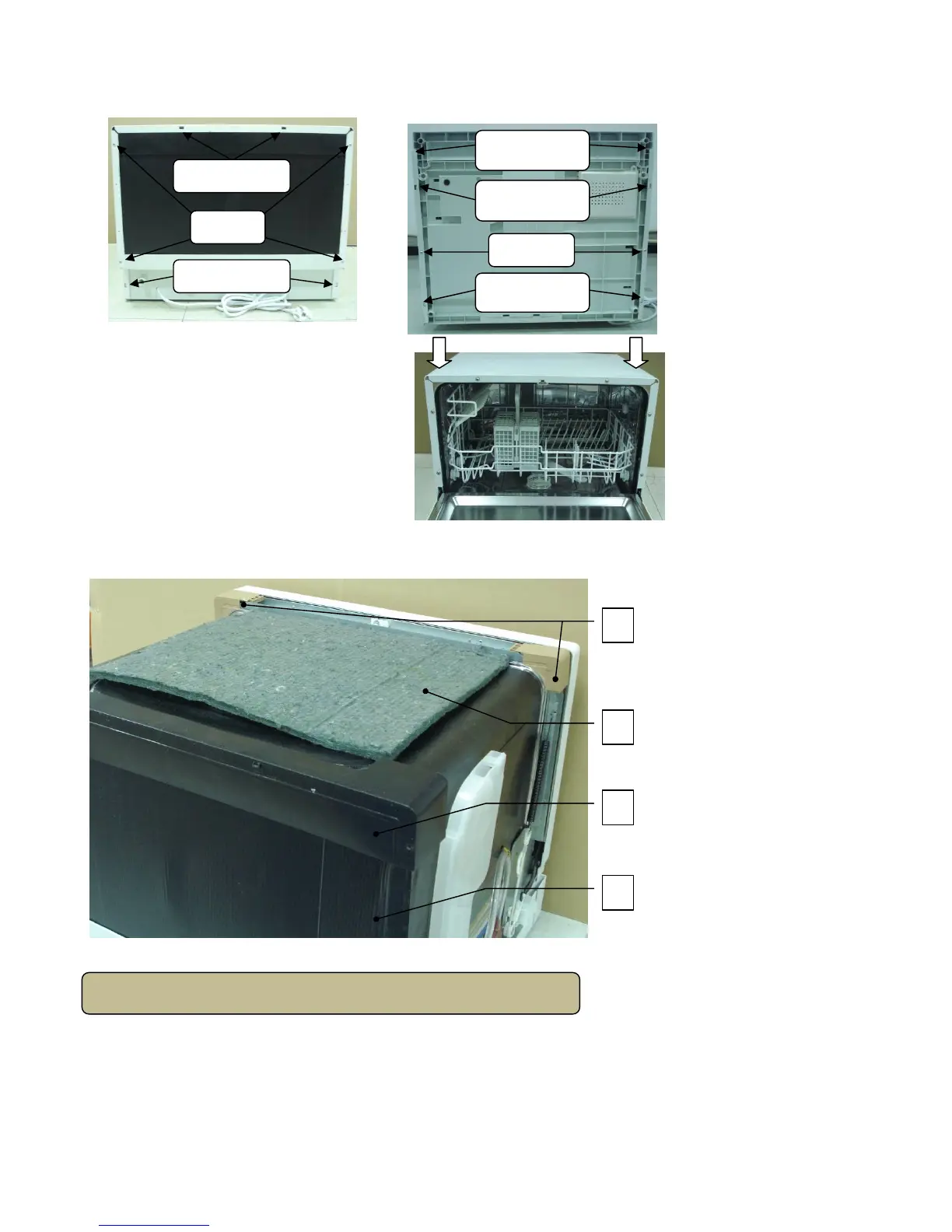

4. Turn the dishwasher machine. Remove all screws for fixing shell with bottom board in the
bottom of dishwasher machine.
5. Unfix all snap-fits for fixing shell with other parts.
Include two snap-fits of backboard (1),
two snap-fits of washboard (3), and six
snap-fits of bottom board (2), (4) and (5).
Tips: If you press edges of shell like
illustrator, you can easy unfix all snap-fits after
removing all screws that fix shell with other
parts.
6. Reverse the above procedure to install.
And check out all connectors connects
well.
BackView(withshellremoved)
Part Name: 1 – corner board 2 – absorber 3 – backboard 4 – hollow plate
Removal and Replacement
1. Disconnect power supply.
2. Remove shell. (see shell removal and installation)
3. Take out two corner boards, absorber sound, backboard, hollow plate.
4. Remove all screws for fixing cover of protecting box. (see main control board removal and
replacement)
5. Put out all housings for connecting operating board.
6. Then take out connecting lines of operating board from protecting box.
Operating board
2
1
3
4
Screws
Sna
p
-fits
(
1
)
Sna
p
-fits
(
2
)
Snap-fits (3)
Snap-fits (4)
Screws
Snap-fits (5)
