Part name: 1 – protecting box 2 – main control board
Note: mark all housings and terminals’ positions and colors before pulling out them.
Note: some terminals are locking terminals.
5. Reverse the above procedure to install. And check out all connectors connects well.
The outer door covers the door to the dishwasher and protects the detergent dispenser.
Removal and Installation

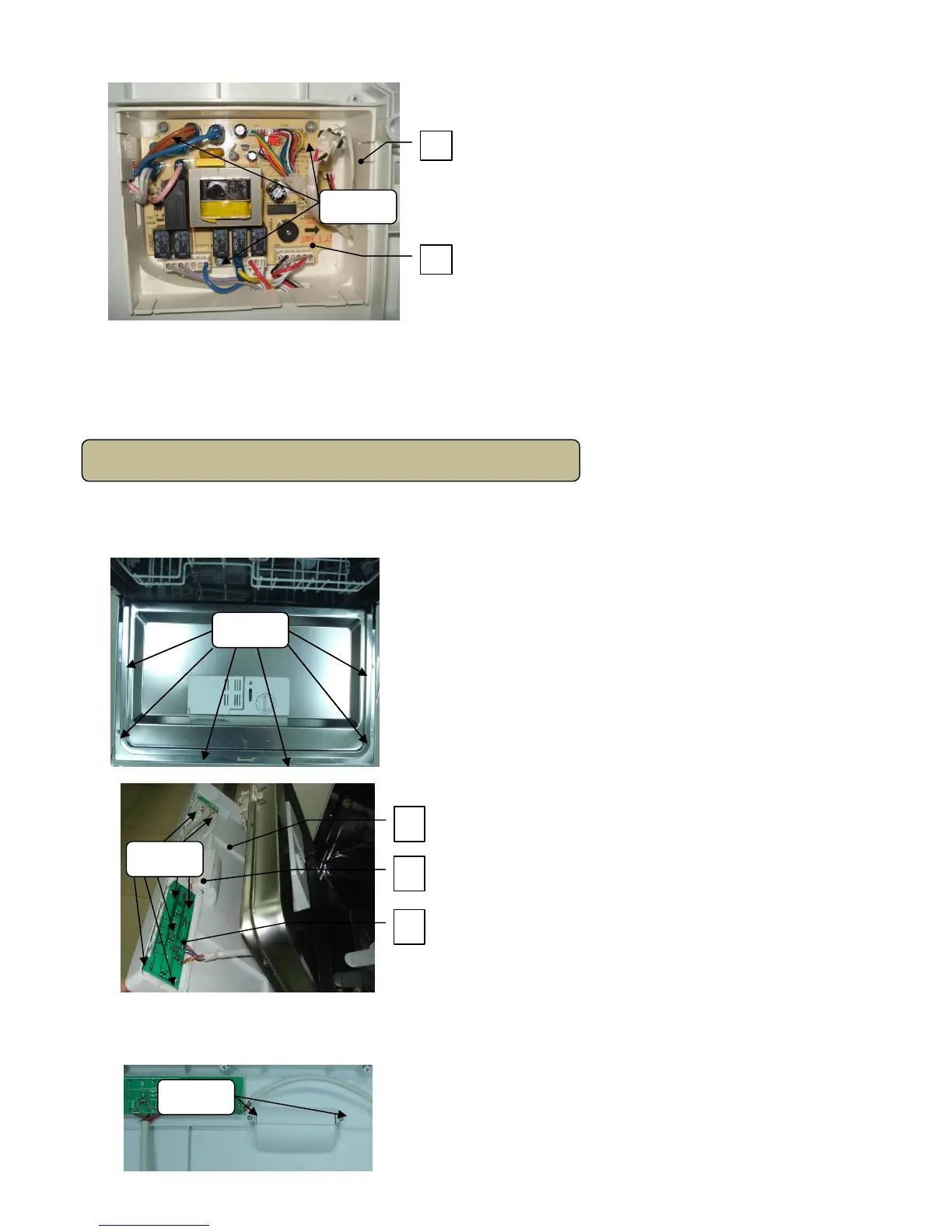

1. Open the door of dishwasher. And remove all screws for fixing outer door assembly.
2. Hold on outer door assembly. Remove all screws for fixing the operating board.
Part Name: 1 – outer door 2 – handle cover 3 – operating board
Caution: Inner door of edges are sharp. Some corners and edges of parts are sharp.
3. Remove all screws for fixing handle cover.
4. Reverse the above procedure to install. And check out all connectors connects well.
