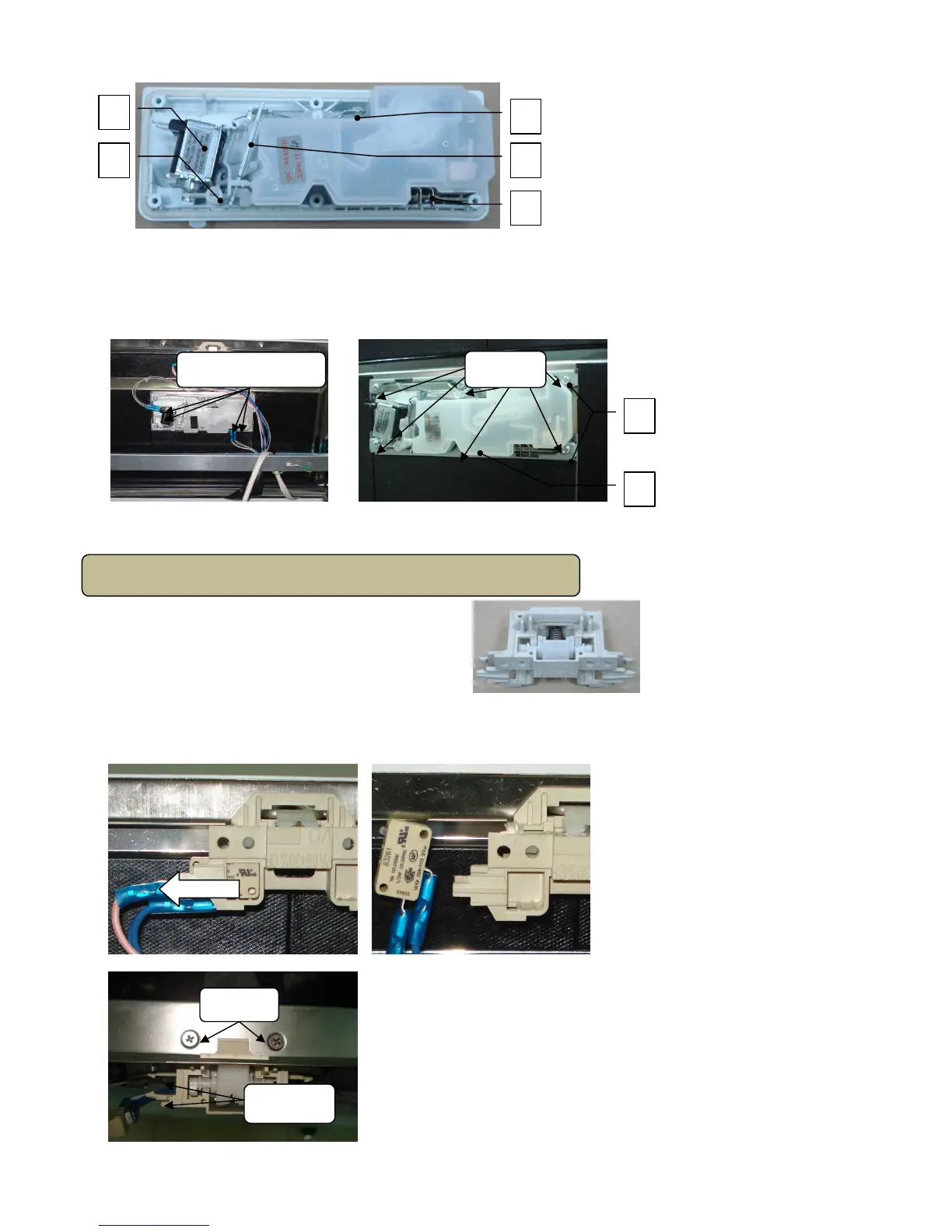

Part Name: 1 – electromagnetic valve 2 – lever
3 – plunger 4 – connecting rod
5 – magnetic sensor
Removal and Replacement
1. Remove outer door assembly. (see outer door removal and installation)
2. Pull out all terminals of dispenser. Then remove all screws for fixing dispenser.
Part Name: 1 – dispenser brackets 2 – dispenser
5. Reverse the above procedure to install. And check out all connectors connects well.
Removal and Replacement
1. Disconnect power supply.
2. Remove outer door assembly. (see outer door
removal and installation)
3. Unfit all snap-fits of outer door assembly for fixing
microswitch (door handle assembly). And pull out
microswitch (door handle assembly).
Note: Don’t pull out all terminals of microswitch (door handle assembly)
4. Remove all screws for fixing door handle assembly.
5. Reverse the above procedure to install. And check out all connectors connects well.
Door Handle Assembly
To Next Page
