7. Remove outer door assembly. (See outer door removal and installation).
8. Remove all screws for fixing operating board.
9. Reverse the above procedure to install. And check out all connectors connects well.
Removal and Replacement
1. Remove shell. (see shell removal and installation)
2. Take out two corner boards, absorber sound, backboard, hollow plate.
3. Contrarotate nut of air breather. Take out air breather gasket.
4. Take out gasket of air breather, and remove clamp for fixing connecting hose to air breather.
5. Reverse the above procedure to install.
Removal and Replacement
1. Remove shell. (see shell removal and installation)
2. Take out two corner boards, absorber sound, backboard, hollow plate.
3. Contrarotate nut of siphon. Take out one way valve and gasket of siphon.

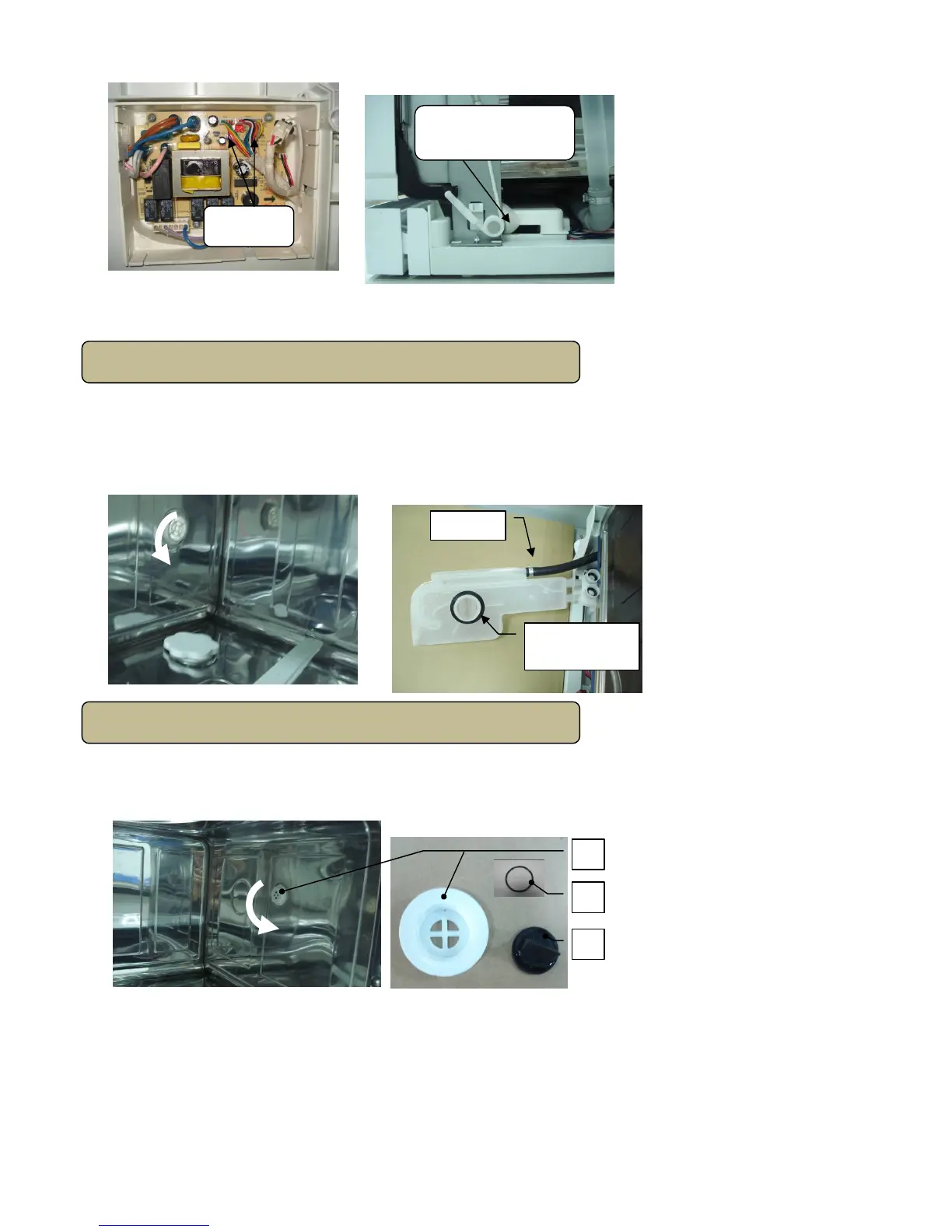

Part name: 1 – nut of siphon 2 – gasket of siphon 3 – one way valve
4. Remove two clamps for fixing connecting hoses with siphon.
Siphon
Air Breather Assembly
Connecting lines of
operating board
Gasket of air
breather
Clamp
1
2
3
