Snap-fits
of bottom
board
Locking
terminals
5. Reverse the above procedure to install.

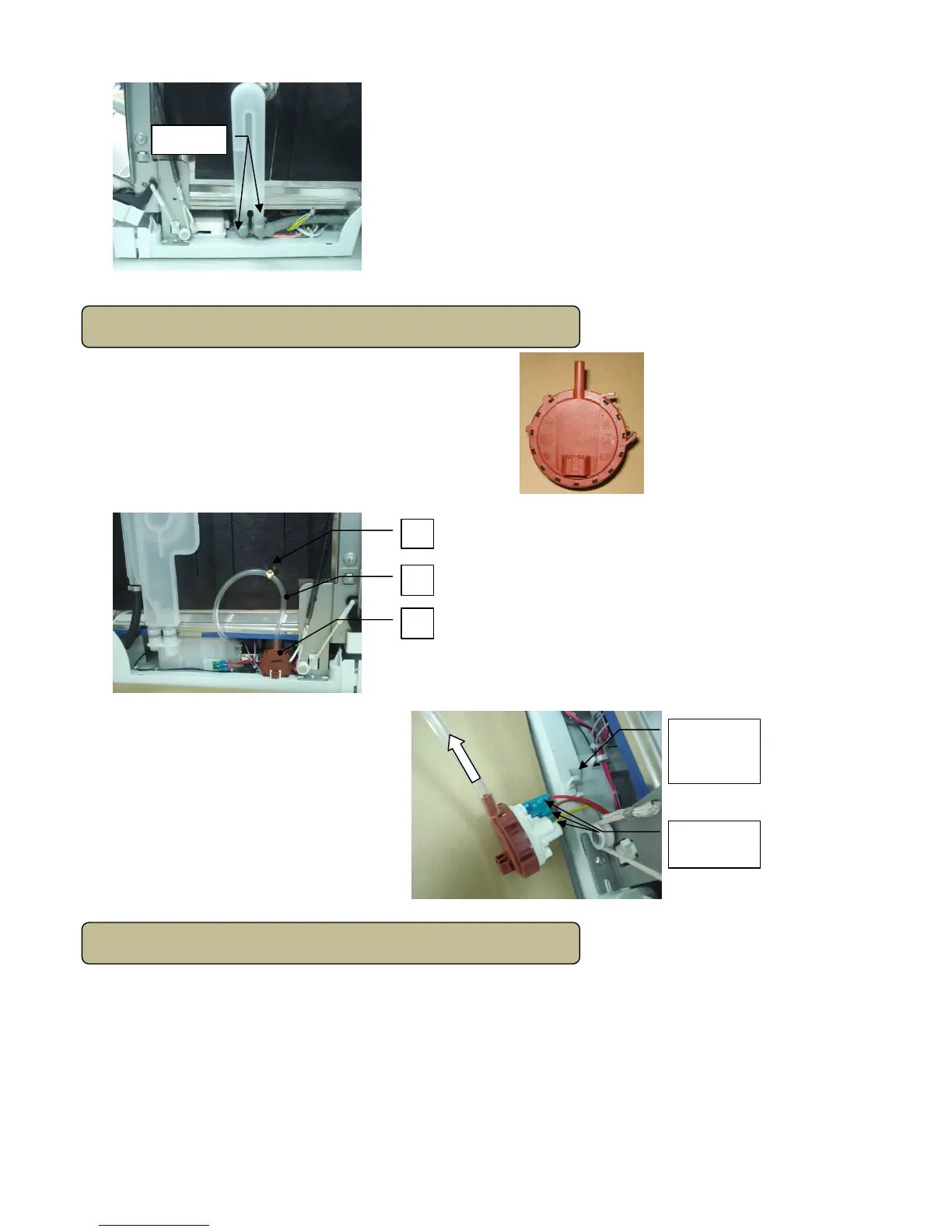

As the dishwasher basin fills with water, the air pressure in the pressure
switch hose increases. When the pressure reaches the aim of value, the
switch will act and give a signal to main control board. Then the drain
will be work.
Removal and Replacement
1. Remove shell. (see shell removal and installation)
2. Take out two corner boards, absorber sound,
backboard, hollow plate.
3. Unfix the sheet copper for fixing the pressure switch hose.
Part name: 1 – sheet copper 2 – pressure switch hose 3 – pressure switch
4. Unfix the snap-fit of bottom board for
fixing pressure switch. And pull out
pressure switch hose. Pull out all
terminals of pressure switch
Note: mark all terminals’ colors and
positions.
5. Reverse the above procedure to install.
And check out all connectors connects
well.
Tank assembly
Pressure switch
Clamps
1
2
3
