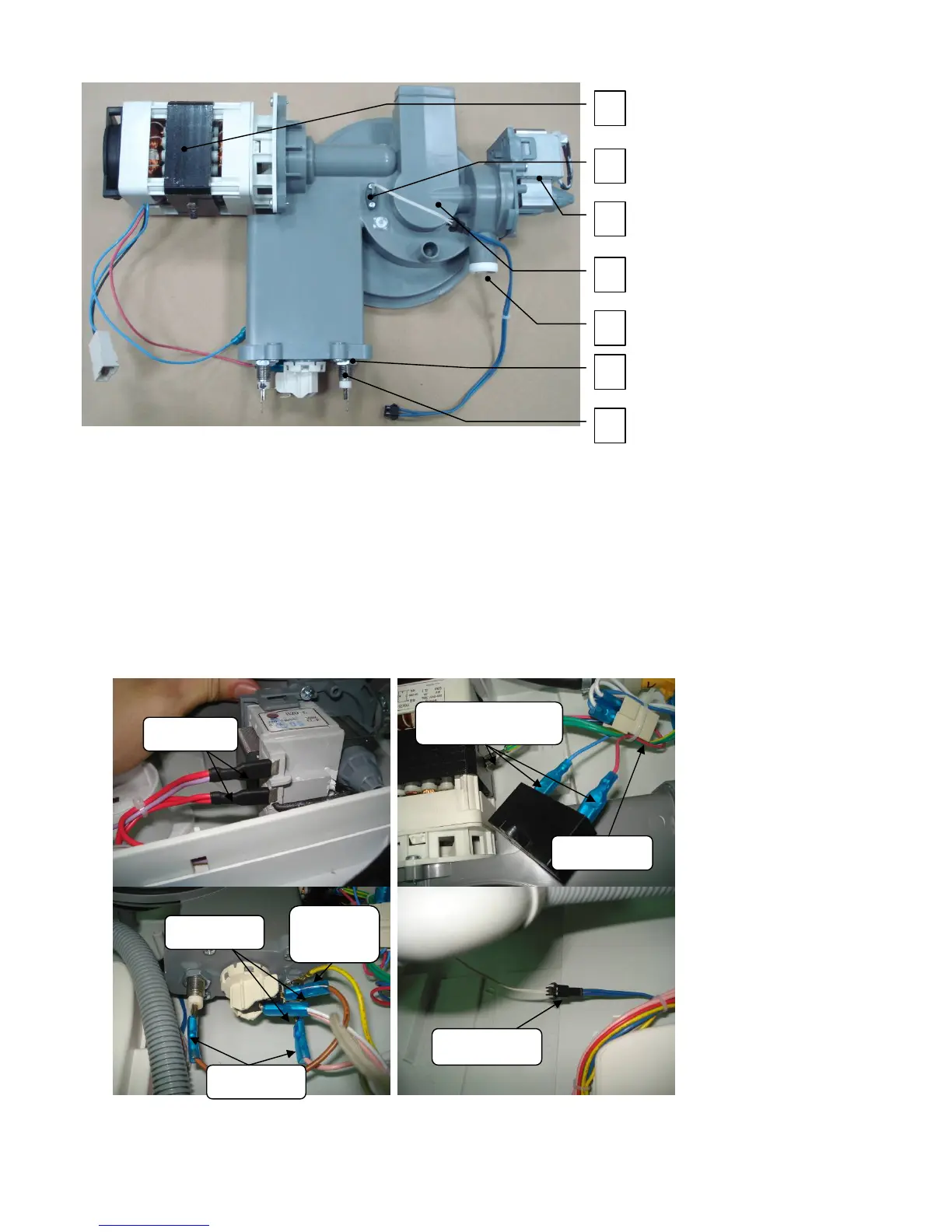

Part Name: 1 – motor pump assembly 2 – thermal resistor
3 – drain pump assembly 4 – sump 5 – check plate holder
6 – heater elements support assembly
7 – heater elements assembly
Removal and Installation
1. Take off cutlery basket, basket and filter system.
2. Remove shell. (see shell removal and installation)
3. Take out two corner boards, absorber sound, backboard, hollow plate.
4. Remove tank assembly. (see tank assembly removal and installation)
5. Pull out all terminals and housings of sump assembly; include two terminals for connecting
drain pump assembly, three locking terminals and one connector for connecting motor
pump assembly, two terminals for connecting heater elements, two terminals for connecting
heater elements support assembly. And unfix connector of thermal resistor. Remove nut
and take out a tooth lock washer and one ring terminal of heater elements assembly.
6. Remove one clamp for fixing connecting hose to check plate holder.
2
1
3
5
4
7
6
Terminals
Terminals
Terminals
Ring
Terminal
Locking terminals
Connecto
To Next Page
