Model SP-8 & 10

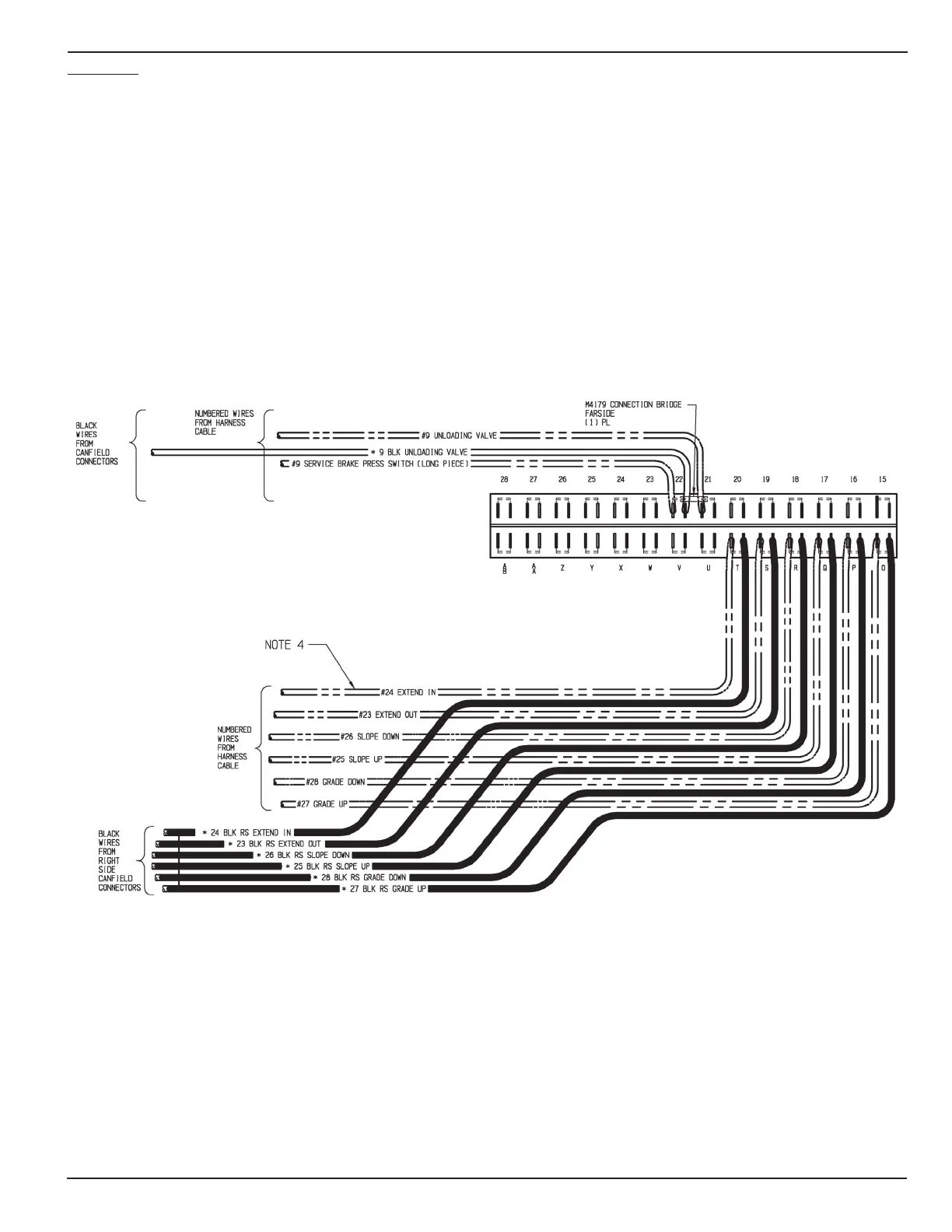

notes:
1. Wires marked with * are from the caneld connector.
2. The green wire from the caneld connector is not used.
3. The black lead wires from the caneld connector go to the 12 volt supply, the white lead wires go to
ground.
4. The wires in phantom are from the harness cable and are installed at machine assembly.
5. The diode box shows connections for all common options for single sided SP machines.
