Midland SPD-8 - Deflector Assembly, SP-717 Rev-A

71
www.roadwidener.com
Model SP-8 & 10

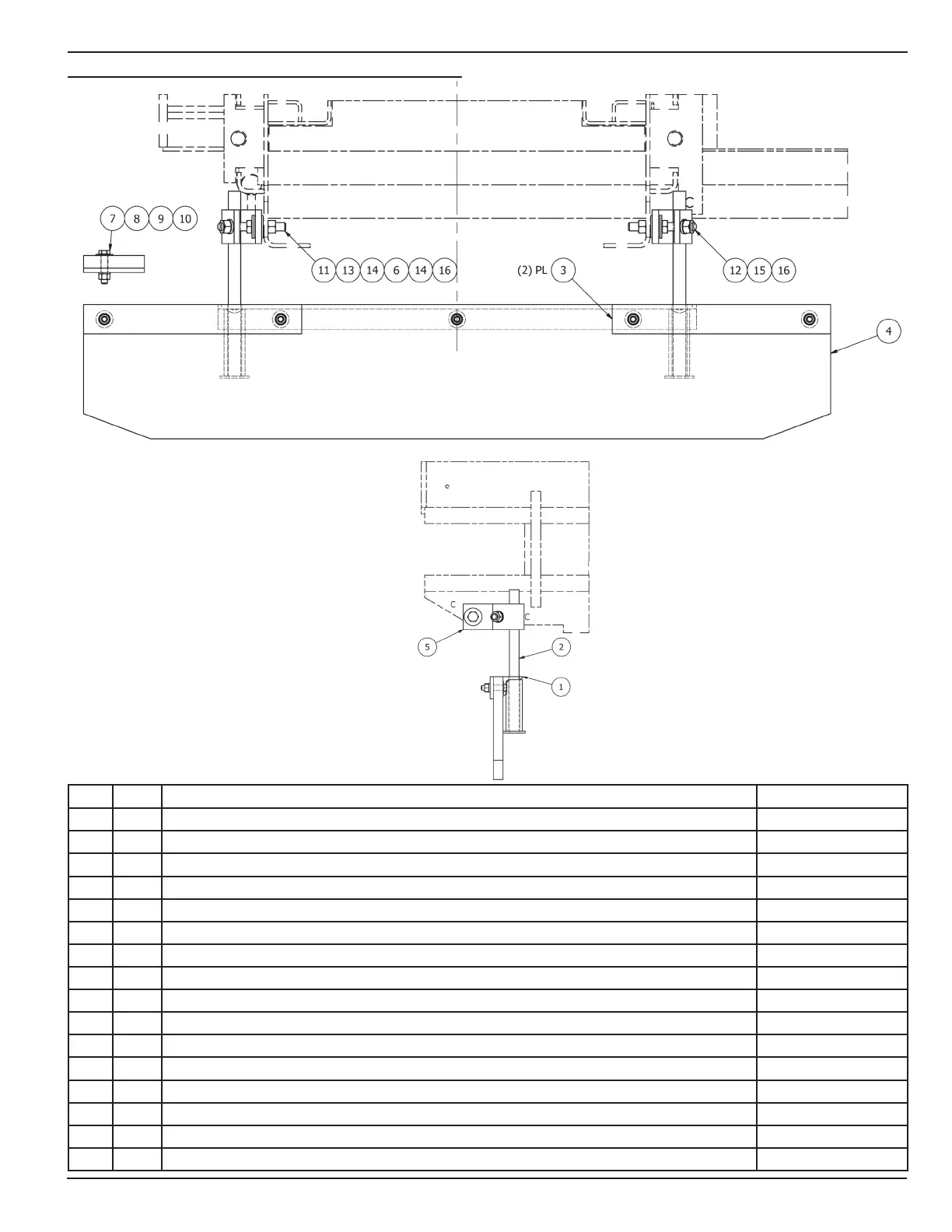

10.4 defleCtor AssemBly, sp-717 rev-A
NO REQ DESCRIPTION PART NUMBER
1 1 DEFLECTOR GUIDE SP-520
2 2 GUIDE CABLE, 11 INCH SP-631
3 2 END SUPPORT SP-524
4 1 RUBBER DEFLECTOR PLATE SA-1404
5 2 FORMED MOUNT SP-807
6 2 BUSHING BRONZE 3/4 OD x 1/2 ID x 5/8, MC #6391K222 M10039
7 5 HEX HD CAP SCREW, 3/8-16 UNC X 1 3/4 HCS-3/8-16-1.75
8 5 FLAT WASHER, 3/8” FLW-3/8
9 5 LOCK WASHER, 3/8 LKW-3/8
10 5 HEX NUT, 3/8-16 UNC HXN-3/8-16
11 2 HEX HD CAP SCREW, 1/2-13 UNC X 2 HCS-1/2-13-2.00
12 2 HEX HD CAP SCREW 1/2-13 UNC x 2 1/4 HCS-1/2-13-2.25
13 2 FLAT WASHER, 1/2 FLW-1/2
14 4 FLAT WASHER, 3/4, AN960-C1216 M6125
15 2 LOCK WASHER, 1/2 LKW-1/2
16 4 HEX NUT, 1/2-13 UNC HXN-1/2-13
Note: Right side assembly is shown. Left side assembly,
where applicable, is done as its mirror image.
