www.roadwidener.com
70
Model SP-8 &10

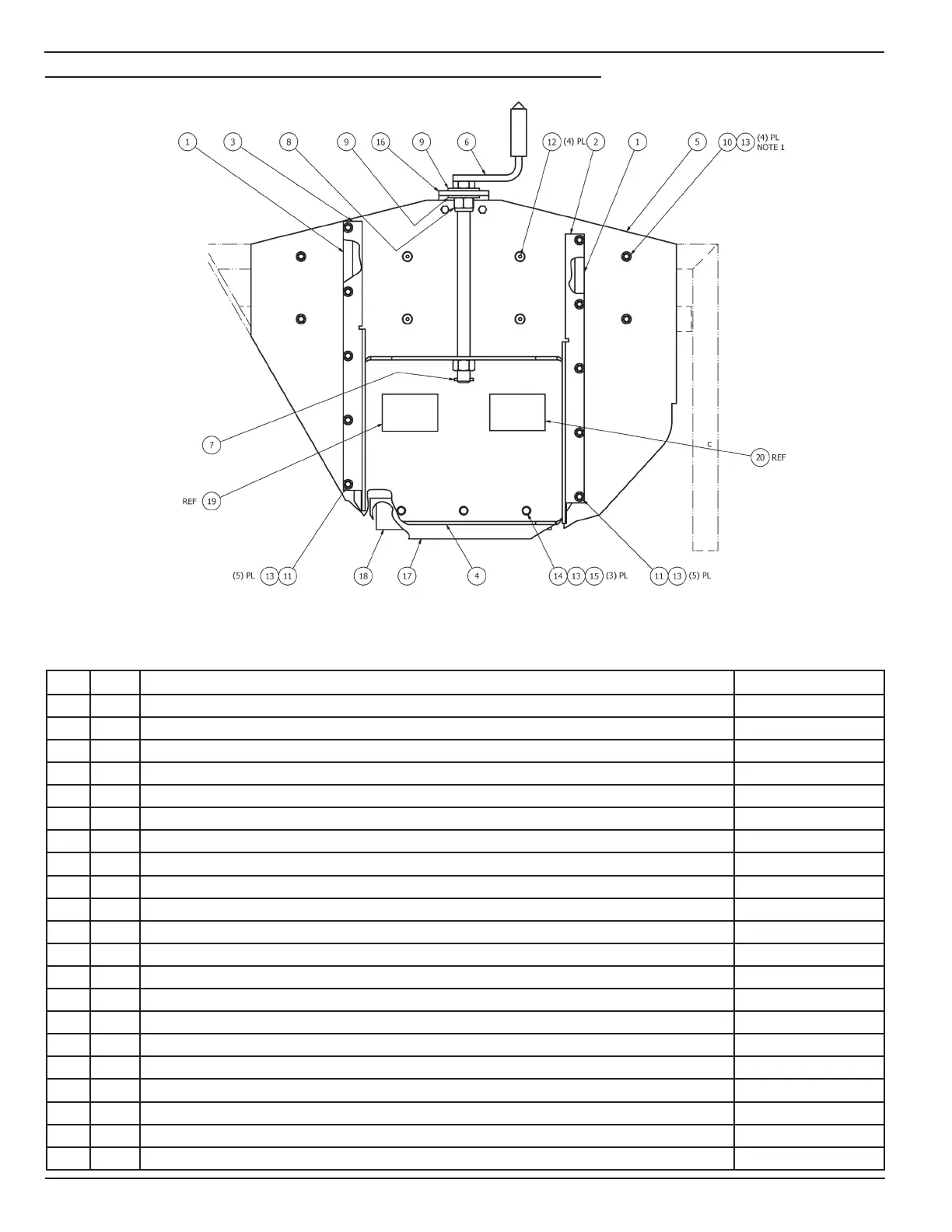

10.3 AdjustABle dIsCHArGe GAte AssemBly, sp-276 rev-A
NO REQ DESCRIPTION PART NUMBER
1 2 FILLER STRIP SA-1253
2 1 EXTENSION PLATE R/S SA/SP DUAL SIDED SP-2122
3 1 EXTENSION PLATE L/S SA/SP DUAL SIDED SP-2123
4 1 GATE WELDMENT SA-1251
5 1 MOUNTING PLATE SA-1256
6 1 CRANK & SCREW WELDMENT SA-1250
7 1 ROLL PIN 3/16 DIA X 1-1/2 LG RLP-3/16-1.50
8 1 ELASTIC STOP NUT, 1-8 UNC ESN-1-8
9 2 FLAT WASHER, 1” FLW-1
10 4 WASHER HD THREAD FORMING SCREW 3/8-16 UNC x 1 TFS-3/8-16-1.00
11 10 WASHER HD THREAD FORMING SCREW 3/8-16 UNC x 1.25 TFS-3/8-16-1.25
12 4 FLAT HD THREAD FORMING SCREW, 3/8-16 UNC x 1 FTH-3/8-16-1.00
13 19 LOCK WASHER, 3/8 LKW-3/8
14 5 HEX HD CAP SCREW, 3/8-16 UNC X 1 3/4 HCS-3/8-16-1.75
15 5 HEX NUT, 3/8-16 UNC HXN-3/8-16
16 1 MOUNTING ANGLE S-1139
17 1 RUBBER SA-1410
18 1 RETAINER, RUBBER SA-1409
19 REF LABEL, WARNING, SEVER HAZARD... WC-0006
20 REF LABEL, CAUTION, STAND CLEAR... WC-0022
21 REF HOPPER END R/S SA-444-01
Note: Right side assembly is shown. Left side assembly,
where applicable, is done as its mirror image.
