Model SP-8 & 10

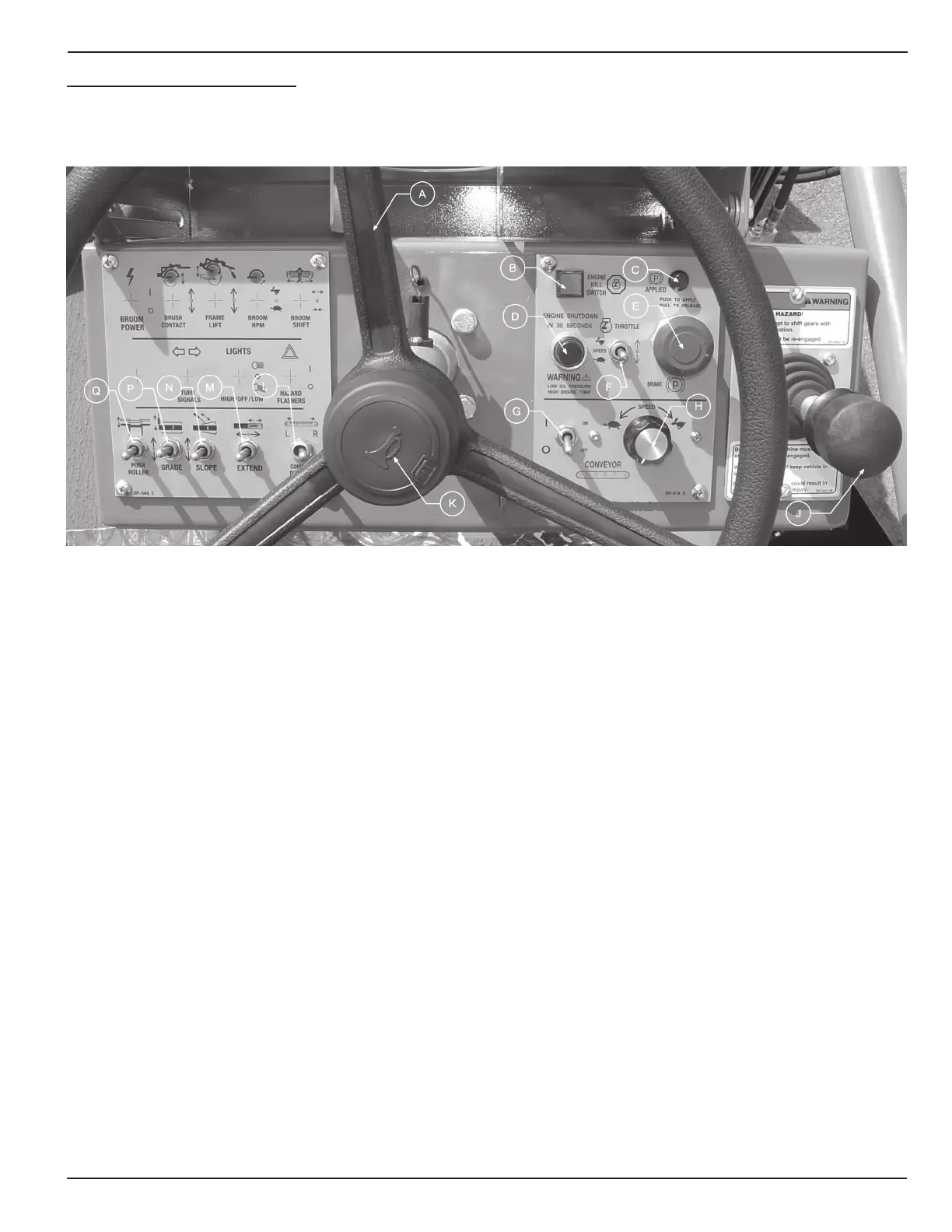

2.2 operAtors Console
A - Steering Wheel
B - Engine Kill Switch
C - Parking Brake Applied Indicator
D - Dual Alarm
E - Parking Brake (E-Stop) Button
F - Engine Throttle Switch
G - Conveyor On/Off Switch
H - Conveyor Speed Controller
J - Travel Controller
K - Horn Button
L - Conveyor Direction Switch*
M - Blade Hydraulic Extension Switch**
N - Blade Slope Switch
P - Blade Grade Switch
Q - Hydraulic Push Roller Switch**
* Available only in dual side configuration
** Available as option
