Model SP-8 & 10
NO REQ DESCRIPTION PART NUMBER
20 9 LOCK WASHER, 3/8 LKW-3/8
21 9 HEX NUT, 3/8-16 UNC HXN-3/8-16
22 4 HEX HD CAP SCREW 1/4-20
UNC x 3/4
HCS-1/4-20-0.75
23 4 LOCK WASHER, 1/4 LKW-1/4
24 4 HEX NUT, 1/4-20 UNC HXN-1/4-20
25 6 HOSE CLAMP SAE NO. 08 HS-08
26 2 TUBE CLIP, SINGLE-3/4 INCH
FOR 3/8 HOSE
TC-3/4
27 70” WIRE, SINGLE CONDUCTOR,
STRANDED 18 GA, RED
WIR-1802
28 80” WIRE, SINGLE CONDUCTOR,
STRANDED 18 GA, WHITE
WIR-1809
29 70” WIRE LOOM, SPLIT-1/4 WL-1/4
* 30 1 ADAPTER, STRAIGHT 1/8
MNPT x 1/4 FNPT
2040-2-4S
31 1 RING TERMINAL, STUD SIZE
- 3/8
RT-22/16-0.38
32 4 PUSH ON TERMINAL,
FEMALE, SPADE SIZE - 1/4
POF-22/18-0.25
33 2 PUSH ON TERMINAL, MALE,
SPADE SIZE - 1/4
POM-22/18-0.25
34 1 RUBBER GROMMET 5154
NO REQ DESCRIPTION PART NUMBER
1 REF ELECTRICAL INSTALLATION SP-772
2 1 FUEL PUMP, WASHDOWN M13122
3 1 FILTER, FUEL, IN-LINE, 3/8” SA-336-41
4 1 HOSE REEL, WASHDOWN,
SPRING REWIND
M13097
5 1 NOZZLE TIP, WASHDOWN M11100
6 1 HANDLE, WASHDOWN M11101
7 1 BRACKET, HOSE REEL SP-274
8 1 BOX, ELECT. JUNCTION M13062
9 1 SWITCH, TOGGLE, (31NT91-
2)
M6399
10 1 FUSE HOLDER, M6354
11 1 FUSE, (AGC-15) 15 AMPS, M110066
12 1 LABEL, PM-0106
13 1 FUEL PICKUP TUBE CUSTOM
LENGTH 13-1/4”
M18001-A
* 14 1 ADAPTER, 90° ELBOW, 1/4
MNPT x 9/16-18 MJIC
2024-4-6S
* 15 1 ADAPTER, 90° ELBOW, 3/8
MNPT x 9/16-18 MJIC
2024-6-6S
* 16 2 HOSE END, BRASS, 9/16-
18 FJIC SWIVEL x 3/8 HOSE,
PUSH-LOK (PARKER)
30682-6-6
17 99” FUEL LINE, 3/8 ID H192
18 6 HEX HD CAP SCREW 3/8-16
UNC x 1-1/4
HCS-3/8-16-1.25
19 4 FLAT WASHER, 3/8 FLW-3/8

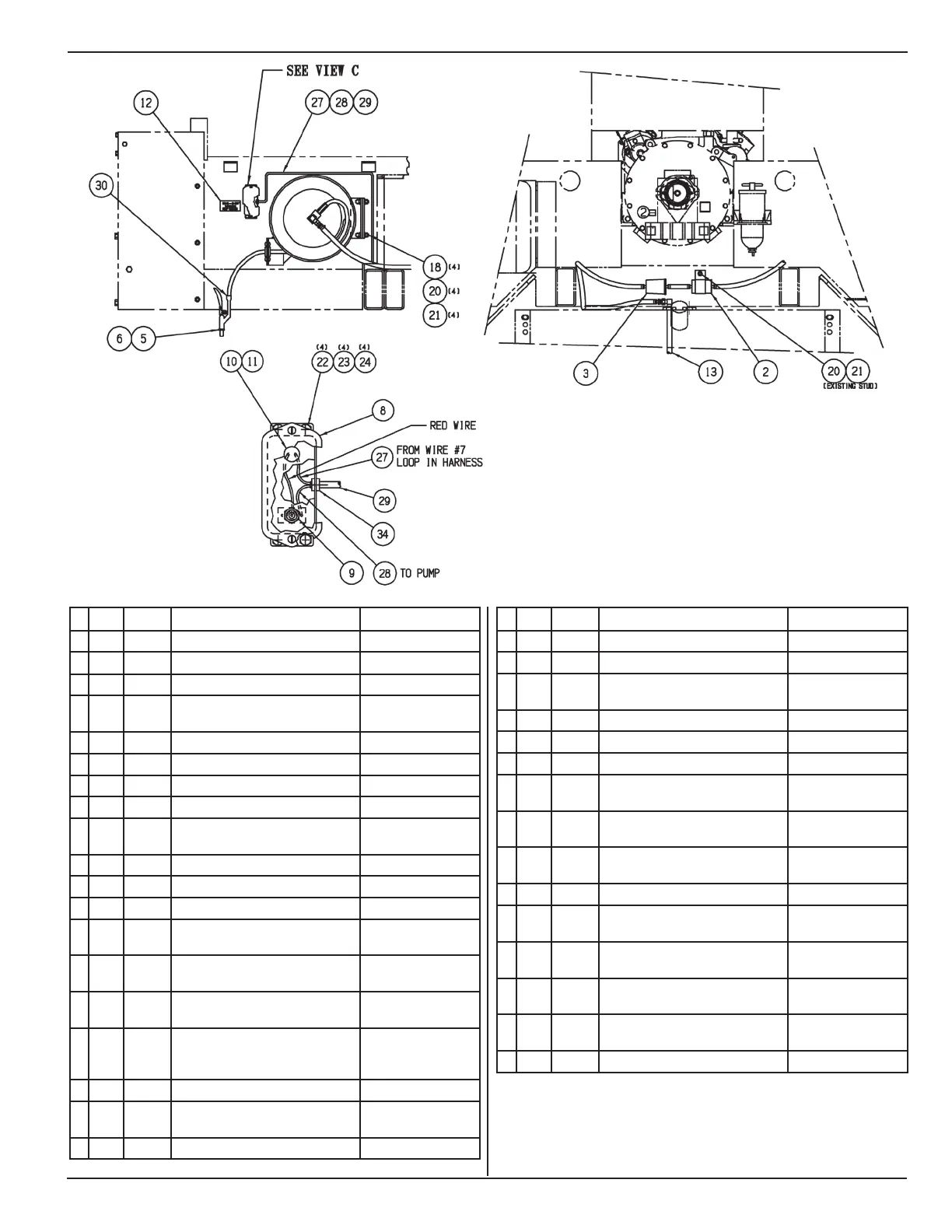

VIEW B-B
* Item number 14,15,16 and 30 are part of Fitting Kit, SP-273-FK
VIEW C
VIEW A-A
To Next Page
