Page 7
midlandusa.com
Model MXT115
Installing the Antenna
The MXT115 includes a “magnetic mount” antenna, intended to be
DWWDFKHGWRWKHYHKLFOH¶VURRIWUXQNRUVLPLODUORFDWLRQ6SHFL¿FLQVWDOODWLRQ
requirements vary between vehicles. Use the following guidelines to install
the antenna.
:KHUH\RXORFDWH\RXUDQWHQQDGRHVPDNHDGLႇHUHQFH
Some general rules for antenna location that can aid radio
performance.
1. 0HWDOVXUIDFHVFRYHUHGE\¿EHUJODVVRUYLQ\OPD\DႇHFWUDGLRUDQJH
Avoid these locations.

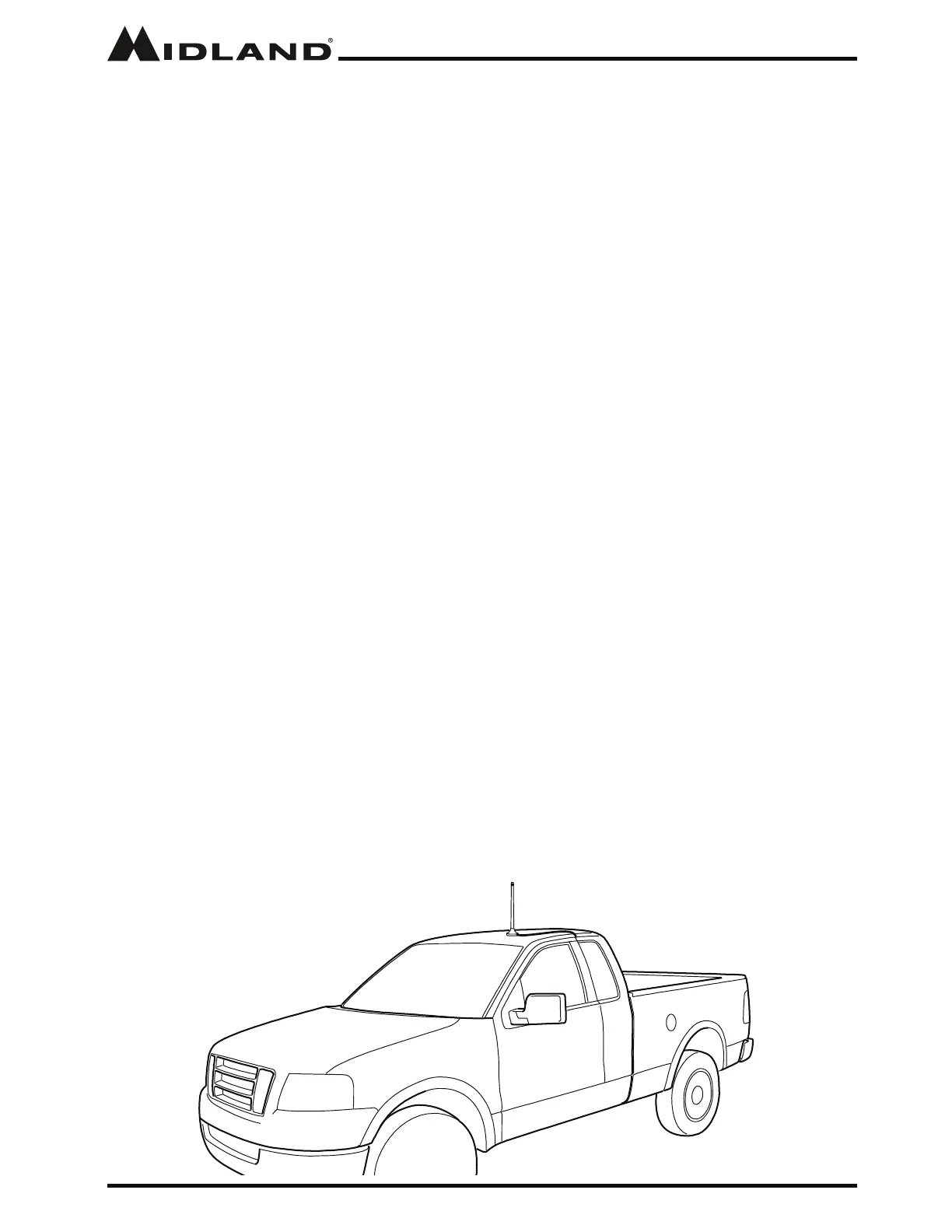

2. Mount the antenna as high on the vehicle as possible. The higher the
better.
3. If possible, mount the antenna in the center of whatever surface you
choose.
4. The antenna cable is 19.7 feet (6 meters) long. Be sure the mounting
location will allow for connection of the cable to the radio.
5. Be sure the mounting location is clean and dry before installing the
antenna.
6. Route the antenna cable through an accessible entry point, such as a
rear door or trunk opening.
7. When routing the antenna cable inside the vehicle, keep the cable
away from noise sources, such as the ignition system, gauges, etc.
8. Exercise care to prevent cable damage. Make use of existing gaskets,
grommets and weather stripping to protect the cable along its route.
