_M_o_d_el_G_XT_1_00_0_l1_0_3_0l_1_04_0_l1_0_5_0/_1_19_1_S_e_ri_es
___
-•
DLA
ND
e

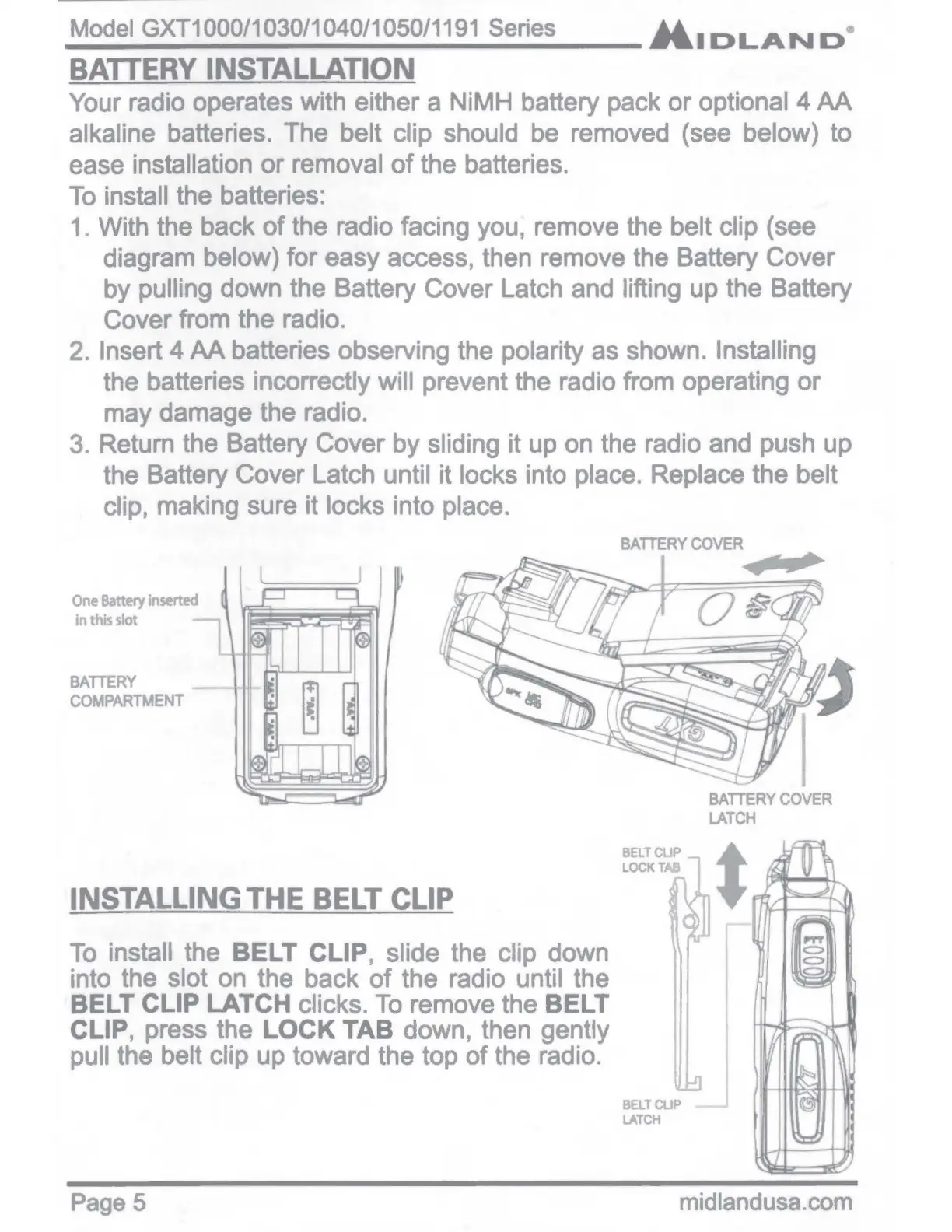

BATTERY
INSTALLATION
Your radio operates with either a NiMH battery pack or optional 4
AA
alkaline batteries. The belt clip should
be
removed (see below) to
ease installation
or
removal
of
the batteries.
To
install the batteries:
1.
With the back
of
the radio facing you, remove the belt clip (see
diagram below) for easy access, then remove the Battery Cover
by pulling down the Battery Cover Latch and lifting up the Battery
Cover from the radio.
2.
Insert 4
AA
batteries observing the polarity as shown. Installing
the batteries incorrectly will prevent the radio from operating or
may damage the radio.
3.
Return the Battery Cover by sliding it up on the radio and push up
the Battery Cover Latch until it locks into place. Replace the belt
clip, making sure it locks into place.
One
Battery
inserted
In
this
slot
BATTERY
COMPARTMENT
7
INSTALLING
THE
BELT
CLIP
To
install the BELT CLIP, slide the clip down
into the slot
on
the back of the radio until the
BELT CLIP LATCH clicks.
To
remove the BELT
CLIP, press the LOCK TAB down, then gently
pull the belt clip up toward the top
of
the radio.
Page5
BATTERY
COVER
BELT
CUP
LATCH
g
4
BATTERY
COVER
LATCH
* r
midlandusa.com
