Midmark 630 - Tilt Actuator Test

English-47
004-1055-00
TP210 Rev. A
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 |
[Revised: 8/14/14]
Did Tilt move Up and Down in Step 2? Required Action
YES Actuator is OK
NO Refer to: Tilt Actuator Motor Resistance Test
J14
Tilt Actuator Test
Isolating a Malfunction
Equipment Alert
Failure to move all three connections
may result in damage to table.
Step 1:
A) Disconnect power to the table.
B) Disconnect Back actuator connections.

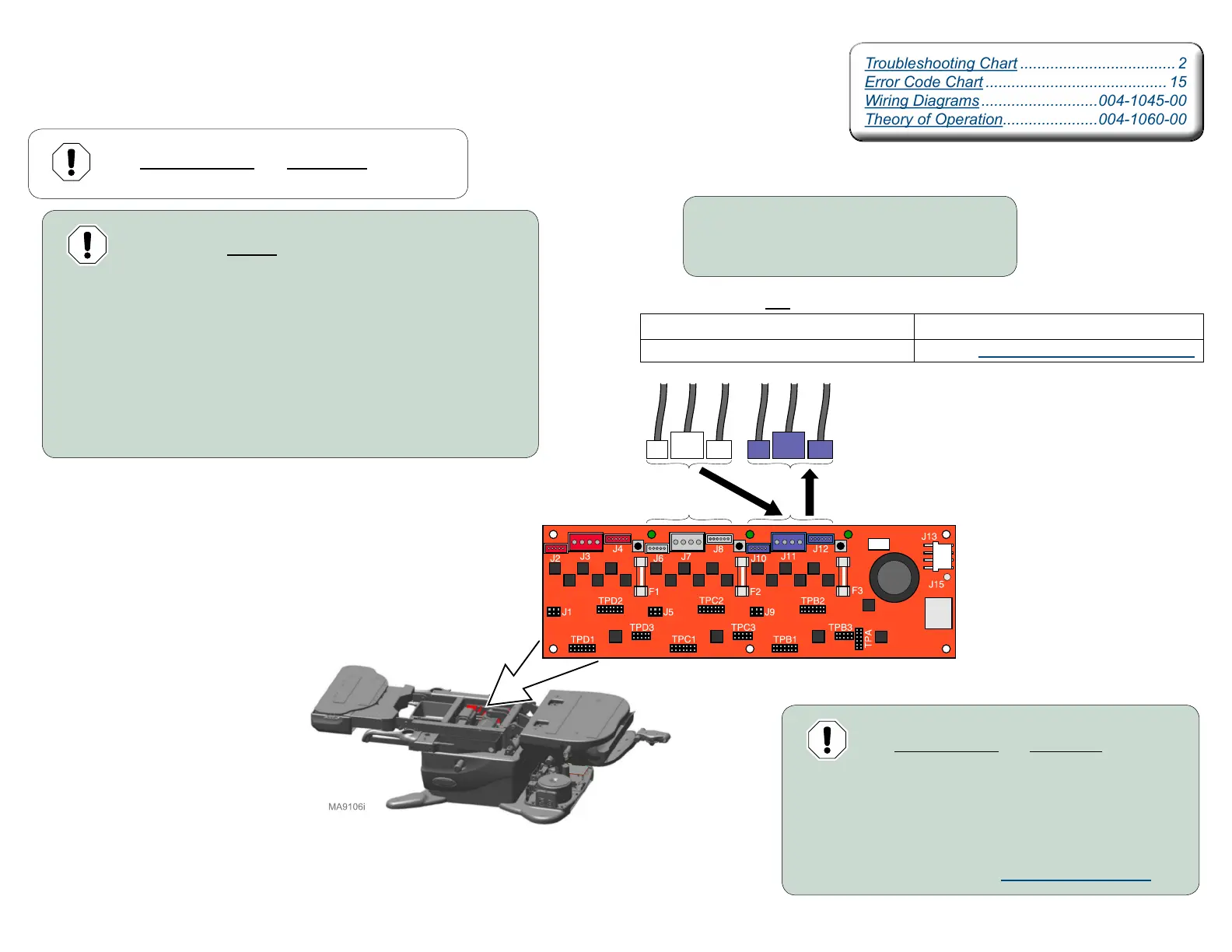

C) Move Tilt wire connection J6 to Back PC Board connection J10.
D) Move Tilt wire connection J7 to Back PC Board connection J11.
E) Move Tilt wire connection J8 to Back PC Board connection J12.
F) Connect power to table.
Equipment Alert
The wire connections and wire routing must be put
back in original locations before installing covers.
Step 2: Using the hand / foot control:
A) Press & hold Back UP button briefly.
B) Press & hold Back DOWN button briefly.
Equipment Alert
The wire connections and wire routing must be put
back in original locations before installing covers.
Step 3:
A) Reconnect Tilt actuator connections.
B) Reconnect Back actuator connections.
C) Calibrate Table. Refer to: Calibration Procedure
Motor Control Hub PC Board
Troubleshooting Chart .................................... 2
Error Code Chart .......................................... 15
Wiring Diagrams ...........................004-1045-00
Theory of Operation......................004-1060-00
Troubleshooting Chart .................................... 2
Error Code Chart .......................................... 15
Wiring Diagrams ...........................004-1045-00
Theory of Operation......................004-1060-00
