Midmark 630 - Error Codes

English-15
004-1055-00
TP210 Rev. A
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 |
[Revised: 7/16/15]
S2
S3
Error Codes
Troubleshooting Chart .................................... 2
I D Code 01 .................................................. 16
I D Code 02 .................................................. 19
I D Code 03 .................................................. 21
I D Code 04 .................................................. 24
I D Code 05 .................................................. 28
Troubleshooting Chart .................................... 2
I D Code 01 .................................................. 16
I D Code 02 .................................................. 19
I D Code 03 .................................................. 21
I D Code 04 .................................................. 24
I D Code 05 .................................................. 28
S2
J19
J18
J16
S3

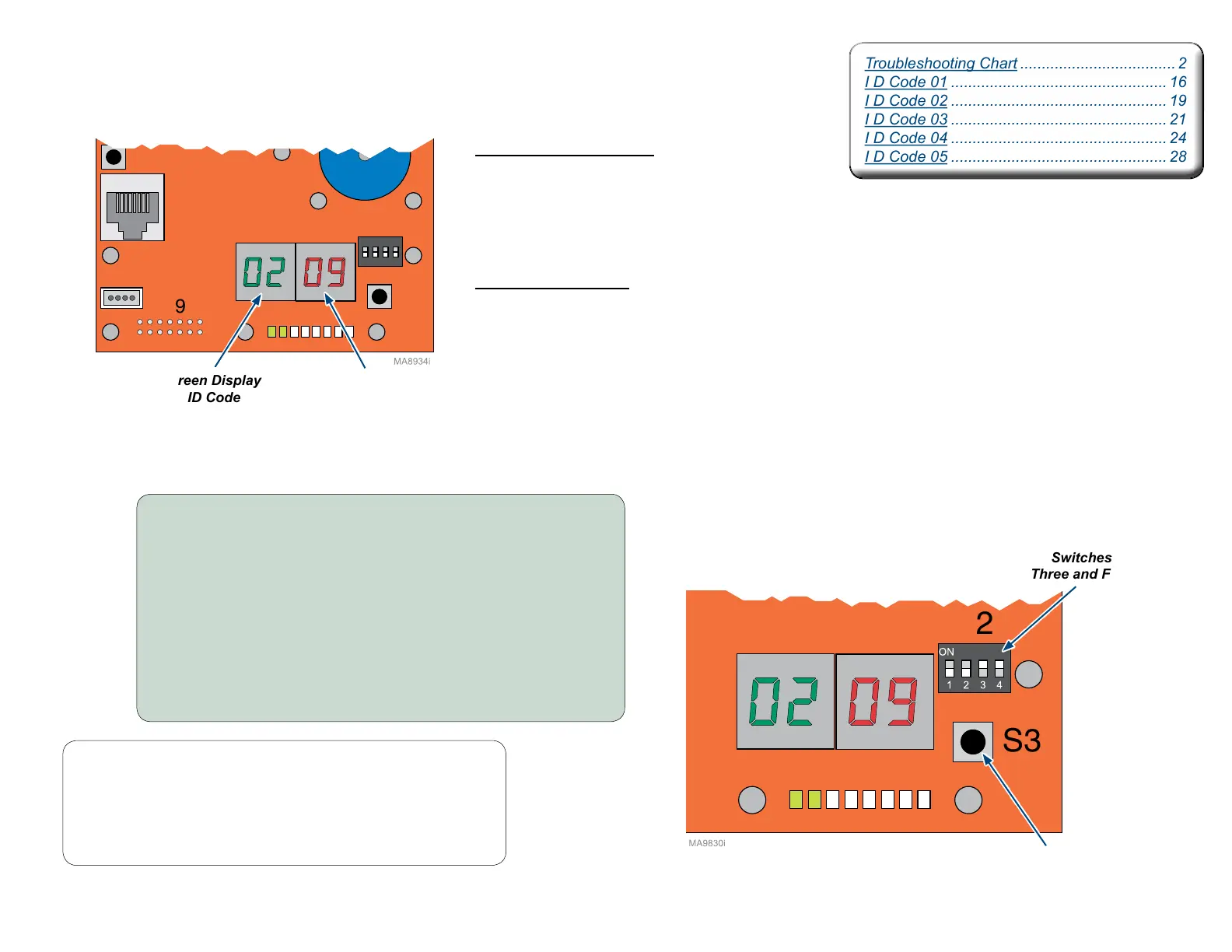

Green Display
ID Code
Green Display = Where?
The green display indicates the function
or system where the problem occurs.
(example: 02 = Base)
Example:
Red Display = What?
The red display indicates what
problem or symptom was detected.
(example: 09 = Switch Error)
Machine
Control
PC Board
Red Display
Error Code
S3
(Enter)
Button
Switches
Three and Four
To recall the last ten system errors...
A) Unplug table power cord.
B) When the digital display darkens,
move S2 switches three and four to ON (up).
C) Plug in table power cord.
D) When the digital display darkens, press and release S3 button.
E) When all errors have been displayed, pressing and releasing
S3 button again will repeat errors.
F) When recall is complete, unplug table power cord.
G) Move S2 switches three and four to OFF (down).
H) When the digital display darkens, plug in table power cord.
Note
When S3 button is pressed, then released, you will hear a “beep”
to indicate displaying of errors. (Most recent displaying first.)
When switching errors, the board will again emit a “beep”.
The displays will show “FFFF” if there are not ten errors to display.
After all ten errors have been displayed you will hear three”beeps”.
