Midmark 630 - LED Activity and Status

English-33
004-1055-00
TP210 Rev. A
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 |
[Revised: mo/dd/yr]
MA9093i
J14
Diagnostic LED’s
Isolating a Malfunction

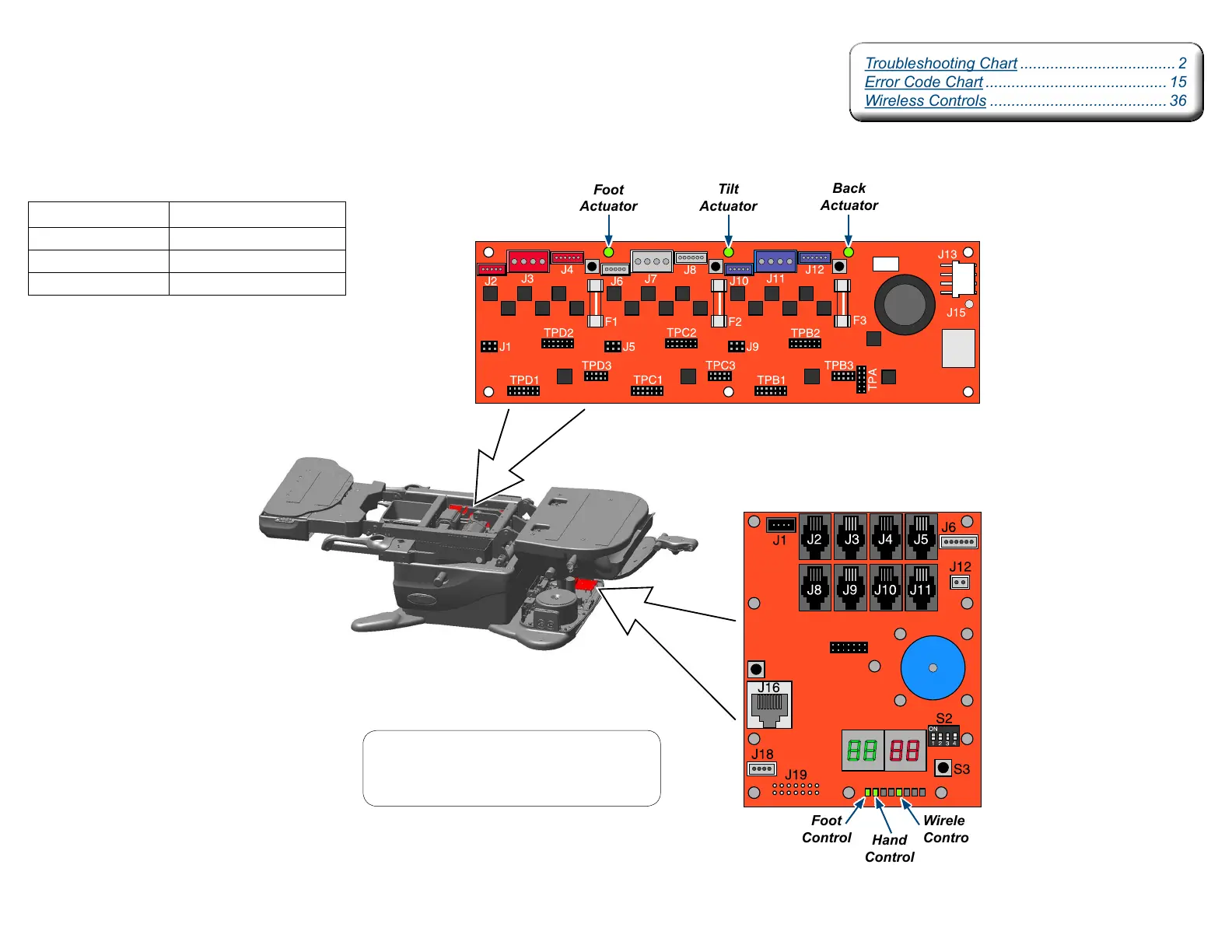

This illustration shows only the LED’s used for diagnostic trouble shooting.
Activity Denition
On Continuously Everything OK, No activity
Slow Flashing Communicating
Fast Flashing Malfunction
OFF No power
Foot
Actuator
Back
Actuator
Tilt
Actuator
Hand
Control
Foot
Control
Troubleshooting Chart .................................... 2
Error Code Chart .......................................... 15
Wireless Controls ......................................... 36
Troubleshooting Chart .................................... 2
Error Code Chart .......................................... 15
Wireless Controls ......................................... 36
Motor Control Hub PC Board
Machine Control PC Board
Note
The Machine Control PC Board is mounted
on the Power Supply PC Board.
Wireless
Controls
midmark.com
Style A
