Rotational Base Brake System - continued

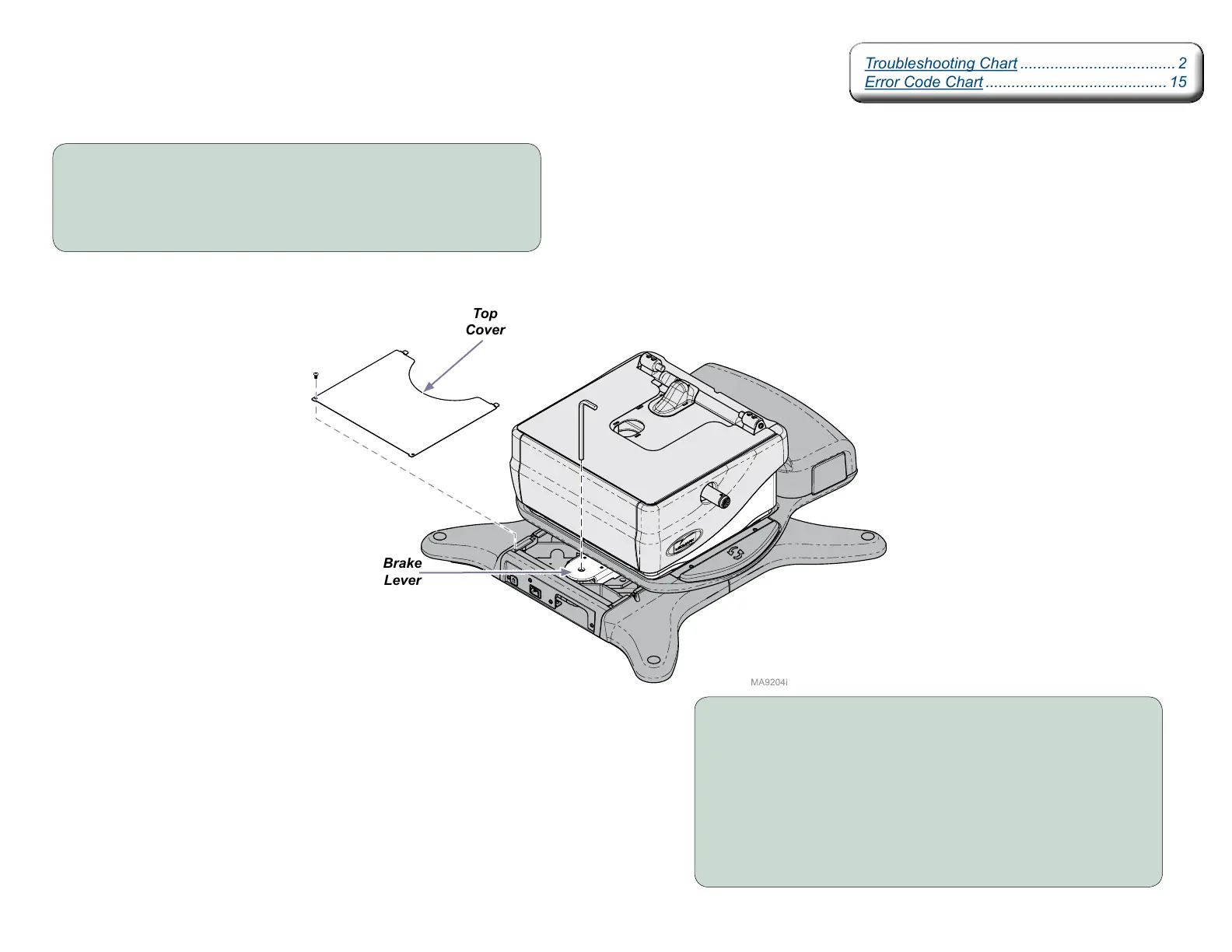

Magnet Position Adjustment
Brake
Lever
Step 1: Rotate the base to access the rotational base top cover.
Remove two screws and rotational base top cover.
Note: If the brake will not release, the base can still be rotated manually by
applying additional force.
Step 2: Press the brake pedal while watching the brake lever.
If the magnet “grabs” the brake lever...
Tighten the magnet screw 1/4 turn.
If the magnet does not “grab” the brake lever...
Loosen the magnet screw 1/4 turn.
Check for proper operation. Repeat if necessary.
Top
Cover
