Base Shrouds / Cladding - continued
Cladding Removal / Installation

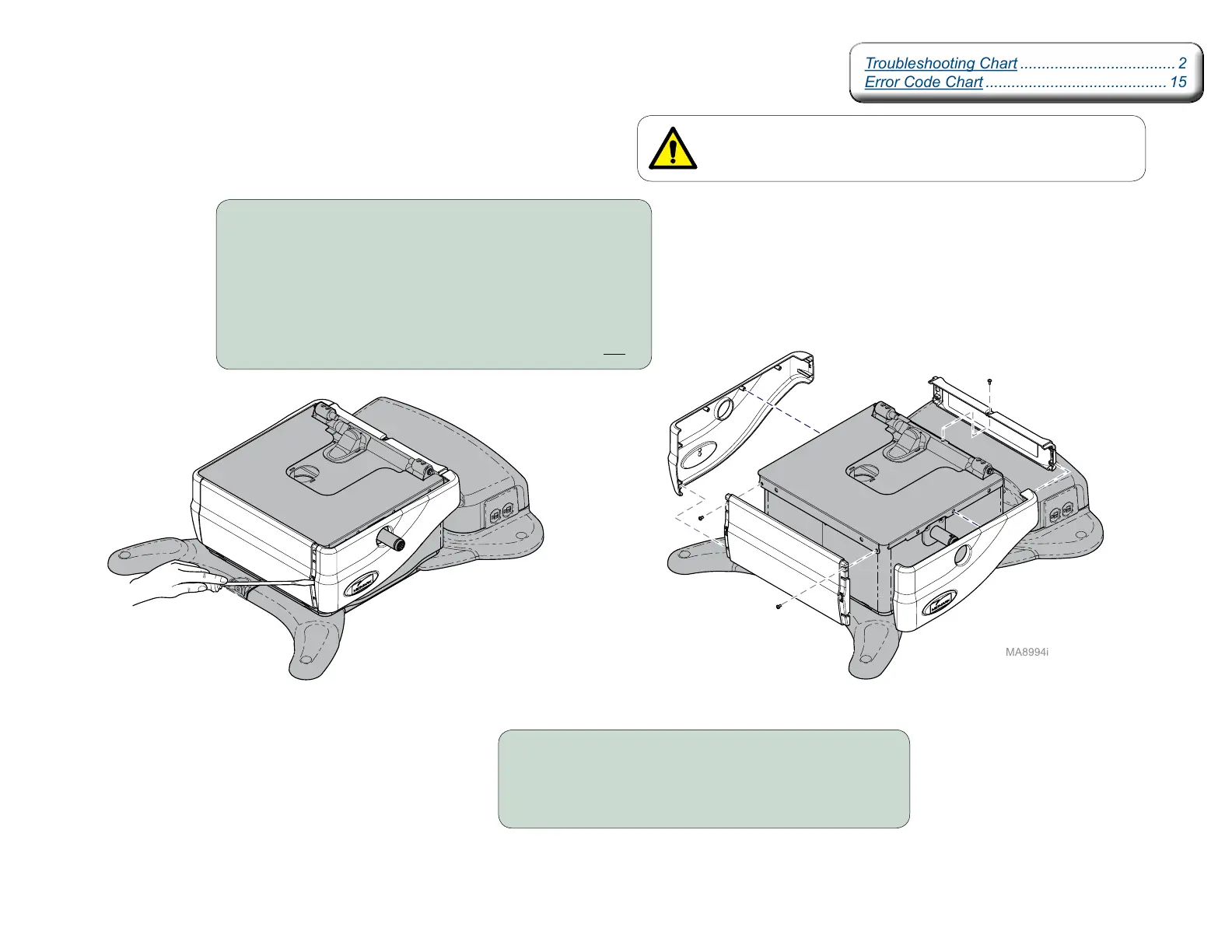

To install cladding...
A) Position rear cladding and secure with one screw.
B) Position front cladding and secure with two screws.
C) Position side cladding and snap into place.
To remove cladding...
A) Insert large, flat blade screwdriver into slot at the front
and the back of side cladding and twist to disengage.
B) Unsnap side cladding to remove.
C) Remove two screws from front cladding.
D) Remove one screw from back cladding.
Note: These illustrations show top components removed for clarity only.
WARNING
Always disconnect table from power source before removing
any covers. Failure to do so may result in personal injury.
