Wired Controls
Isolating a Malfunction

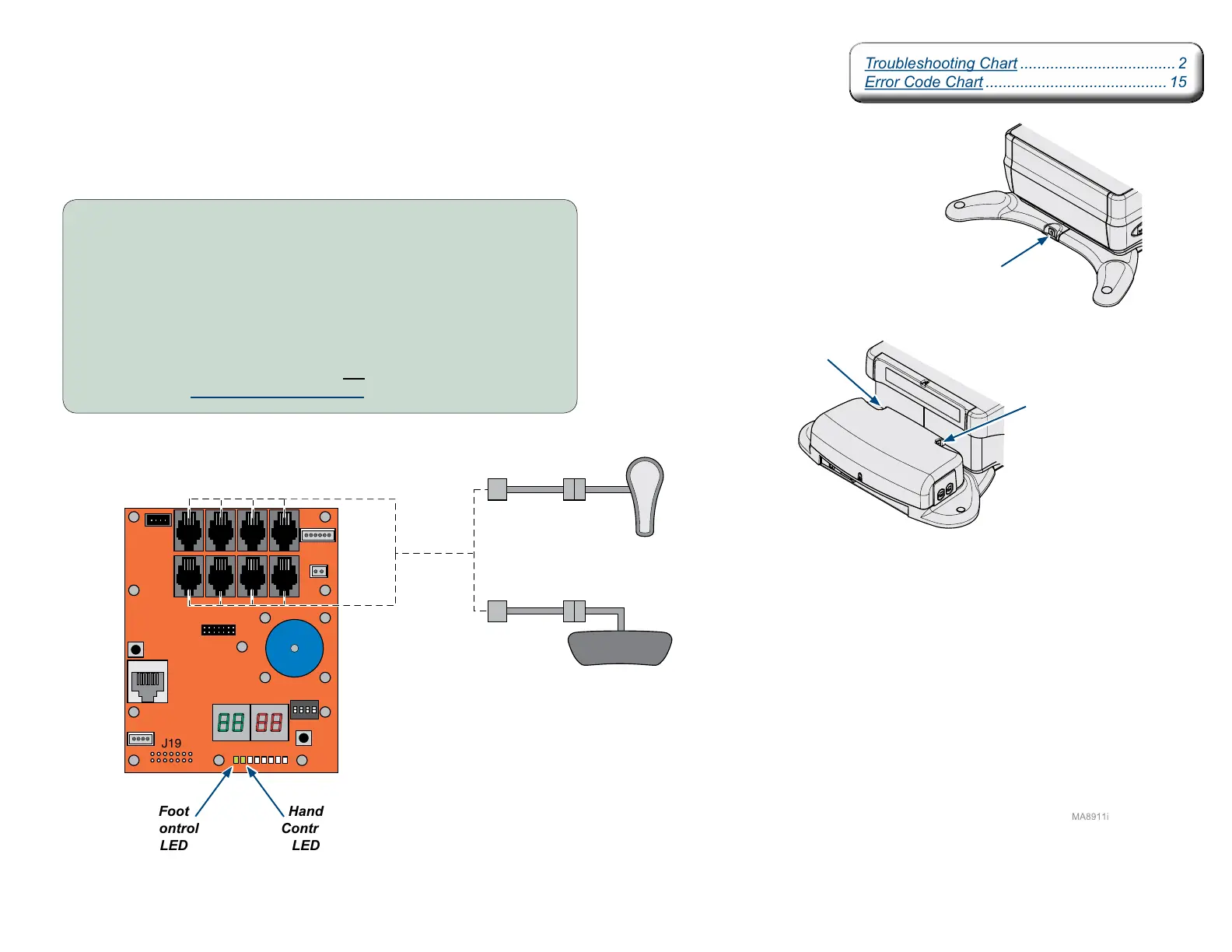

To isolate a malfunction, try activating the inoperable function(s) from hand control and foot control.
Foot
Control
Machine
Control
PC Board
Hand
Control
Connection
Port
Connection
Port
Connection
Port
Foot
Control
LED
Hand
Control
LED
If function(s) are inoperable from the foot / hand control...
A) Plug the foot / hand control into another connection port.
B) Secure Inlet harness connection(s) on Machine Control PC Board.
Note: J2 thru J5 and J8 thru J11 are interchangeable.
If function(s) are operable: (LED illuminated)
C) Replace Inlet harness at malfunctioning connection port.
If function(s) are still inoperable: (LED not illuminated)
D) Perform the Foot / Hand Control Test.
