Wired Controls - continued
Foot / Hand Control Test
COM D6 (LED)
Activity Denition Solution
On Continuously No activity Controller is good
Slow Flashing Communicating Controller is good
Fast Flashing Malfunction Replace Controller
OFF No power Replace Controller
PWR D5 (LED)
Activity Denition Solution
On Continuously Controller has power Controller is good
OFF Malfunction, No power Replace Controller

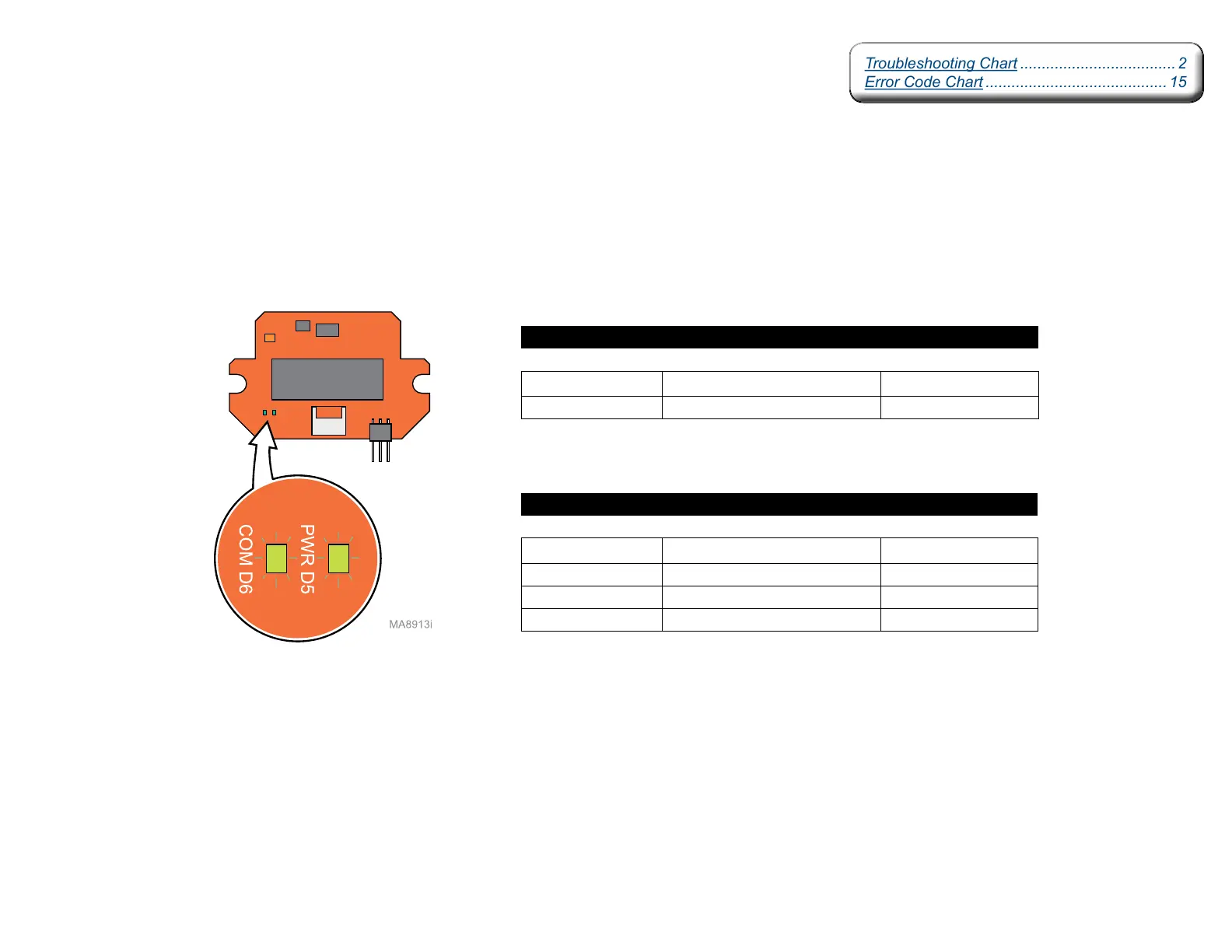

Hand / Foot Control PC Board
(Located in controller)
