EXP-925
Midtronics B.V. Hoofdveste 6 - 8 Houten NL
www.midtronics.com
23
Chapter 6: Cable Drop Test
Voltage drop
across nega-
tive side of
circuit
Total
circuit
voltage
drop
Voltage drop
across posi-
tive side of
circuit
Decision
Other Circuit
This test enables you to measure voltage drop across other
components.
1. SELECT CIRCUIT: Use the UP/DOWN ARROWS or the
numerical keypad to select the Battery Ground Test.
1 BATTERY GROUND
2 STARTER CIRCUIT
3 ALTERNATOR CIRCUIT
4 OTHER CIRCUIT
Press the NEXT soft key to continue.
2. SET AMPS: Use the UP/DOWN ARROWS or the
keypad to select the rated amperage of the alternator
circuit. The default is 10 A.
Press the NEXT soft key to continue.
3. Connect the positive (+) clamp of the battery test leads
to the starter’s battery terminal stud. Connect the nega-
tive (–) clamp to the starter’s housing.
4. Connect the positive (+) DMM clamp to the battery’s
positive (+) post. Connect the negative clamp (–) to the
battery’s (–) negative post.
For the next few seconds the Tester will display
the word TESTING and a stopwatch while it
evaluates the battery ground.

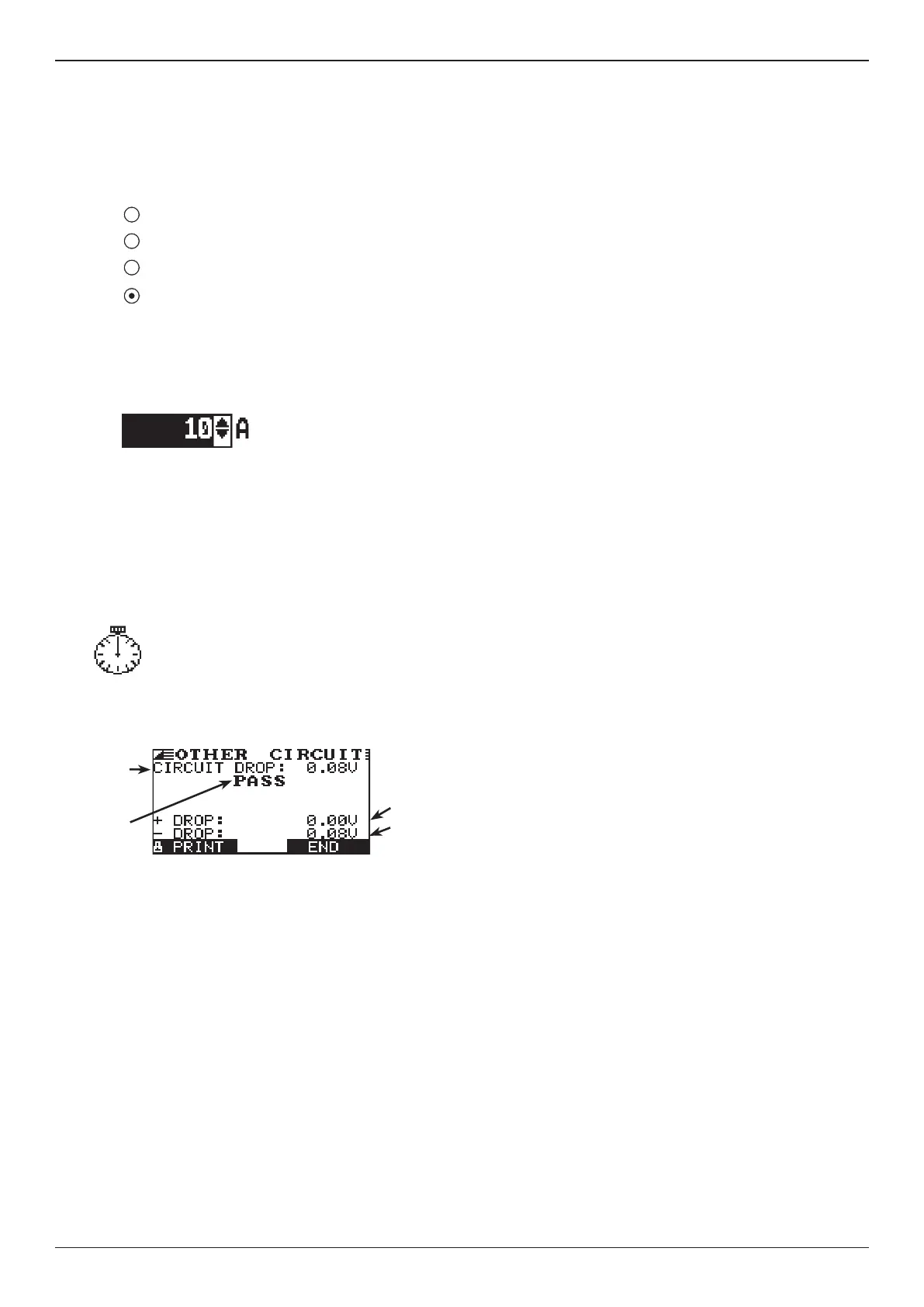

Other Circuit Test Results
Other Circuit PASS Result
If there is a problem, the decision is CLEAN AND RETEST OR
REPLACE. To print the results, align the Tester’s IR transmitter
with the printer’s receiver, and select the PRINT soft key.
To return to the Main Menu, press the END key.
