Chapter 1: Before You Begin

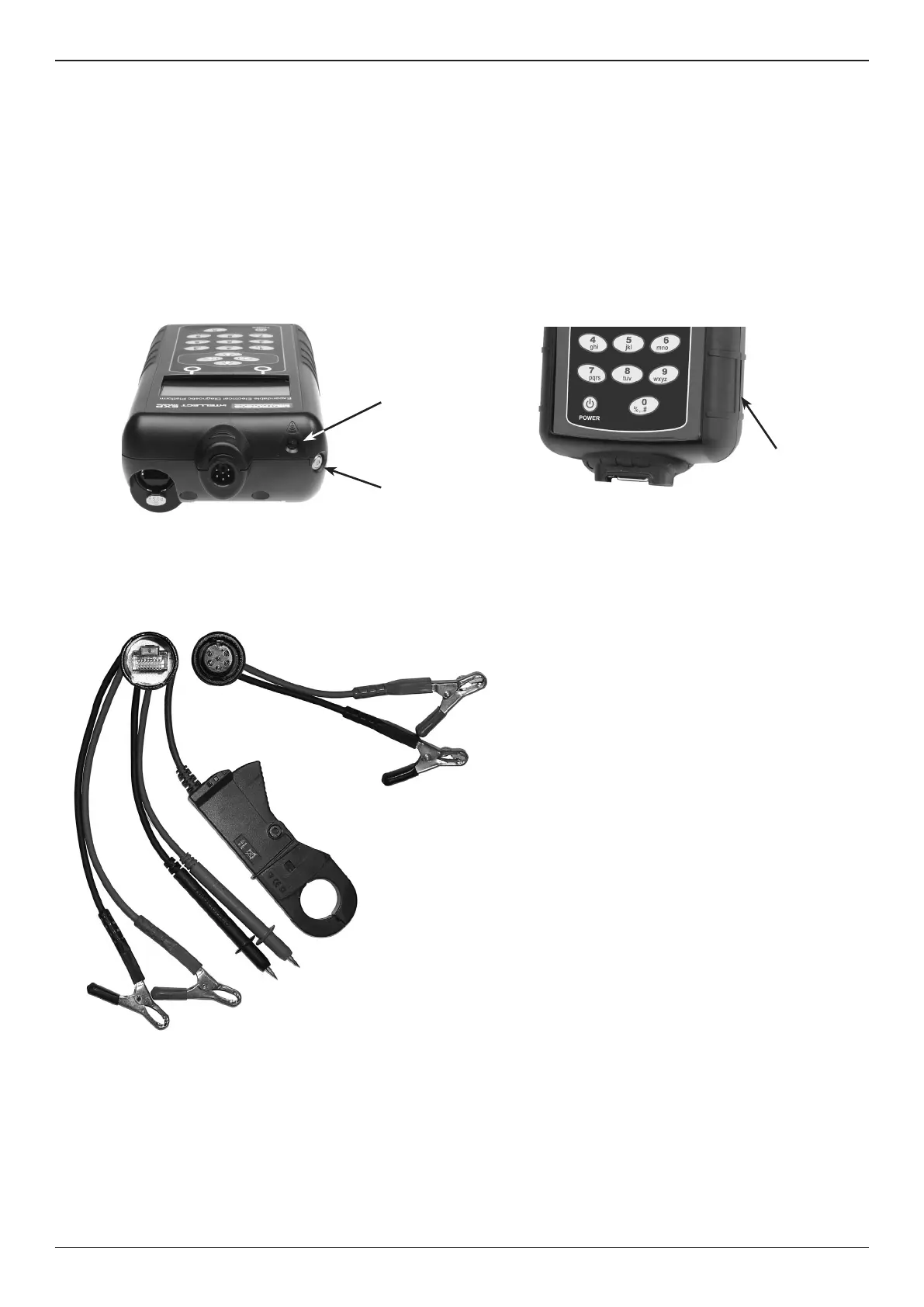

Test Leads, Connectors, and Data Ports
For the cable test leads (lower picture), there are two
connectors on the top of the tester (top left).
For the battery test cable, there is a 6-pin connector with
a locking ring.
For the amp clamp and the multimeter test cables, the
Tester has an accessories port, which is a RJ45 connector
with a release lever.
There are two IR data ports on the top of the Tester
(top left).
An IR data transmitter, which transmits test re-
sults to the optional IR printer.
An IR temperature measurement sensor.
The tester also has a DB-9 connector for future
expandability and an SD card slot for future
software upgrades or data logging (top right).
Top of EXP
DB-9
connector for fu-
ture expandability
SD card slot
for future up-
grades
Bottom of EXP
Battery
test cable
Amp clamp
DMM cable
with probes
DMM cable with
clamps
Test Leads (optional with EST)
6-pin
connector
IR data
transmitter
IR temperature
sensor
Accessories port
