Miele KM 7464 FL - Page 79

Installation
*INSTALLATION*
79
Safety distance from the niche cladding
If niche cladding is installed, a minimum safety distance must be maintained
between the worktop cut-out and the cladding. High temperatures can alter or
damage these materials.

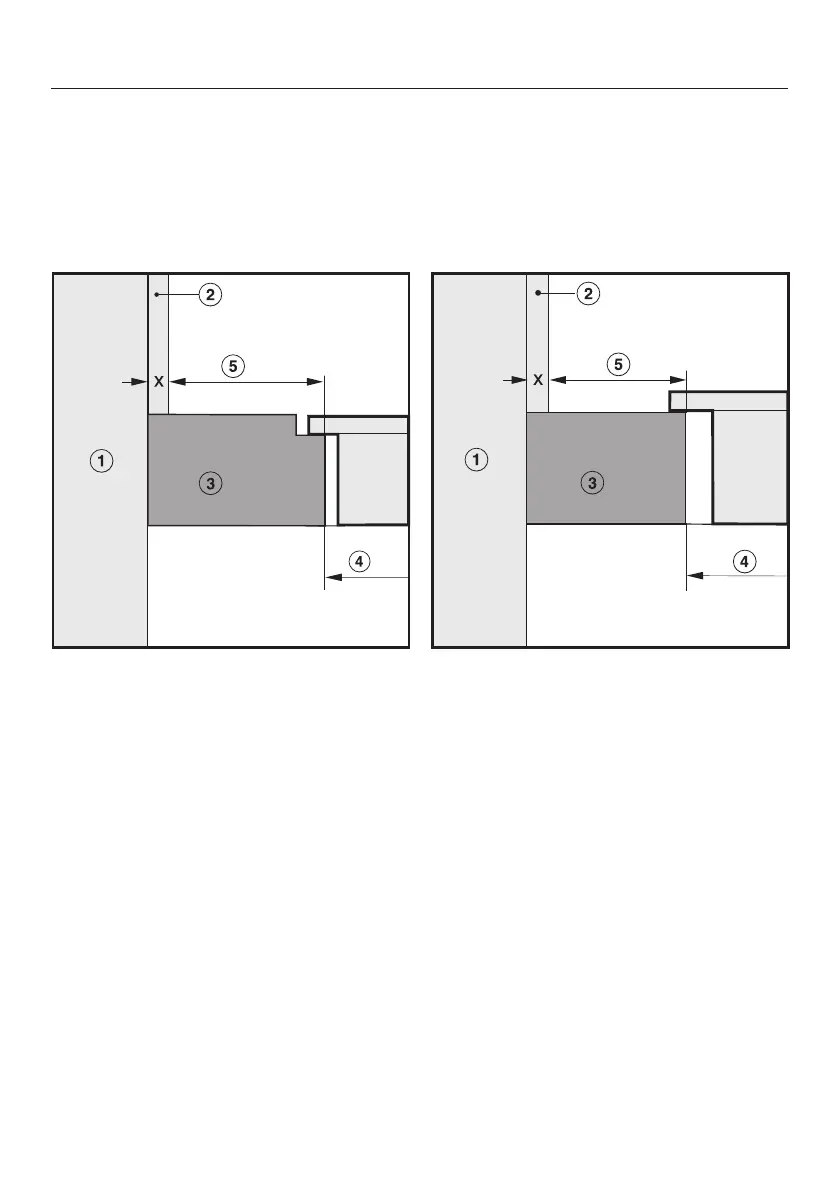

Flush-fit installation Surface-mounted installation
a
Masonry
b
Dimensionx= thickness of the niche cladding material
c
Worktop
d
Worktop cut-out
e
Minimum safety distance to
combustible materials (e.g. wood) 50mm
non-combustible materials (e.g. metal, natural stone, ceramic tiles)
50mm – dimension x
Example: 15mm thick non-combustible niche cladding
50mm – 15mm = minimum safety distance of 35mm
