Installation

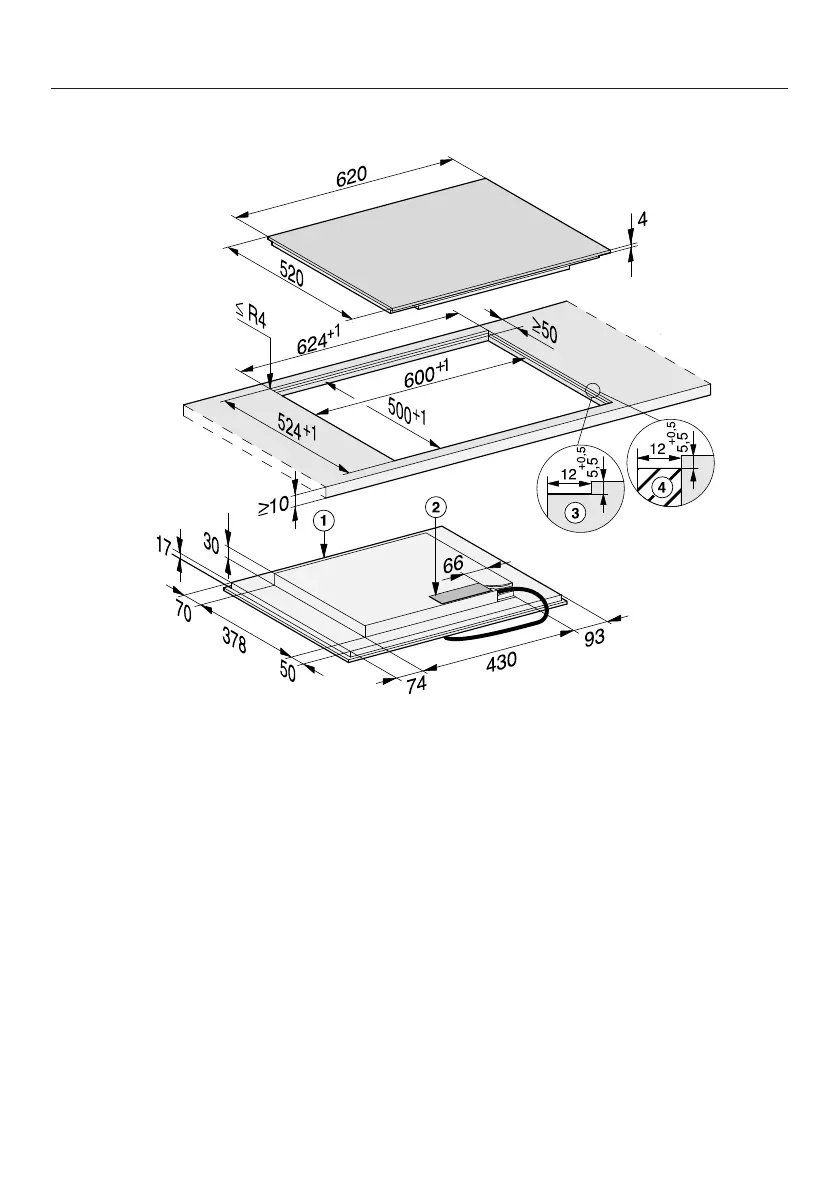

*INSTALLATION*

KM7464FL,KM7465FL

All dimensions are given in mm.

Front

Mains connection box

The mains connection cable (L=1440mm) is supplied loose

Stepped cut-out, natural stone worktop

Wooden batten 12mm (not supplied)
