Installation

*INSTALLATION*

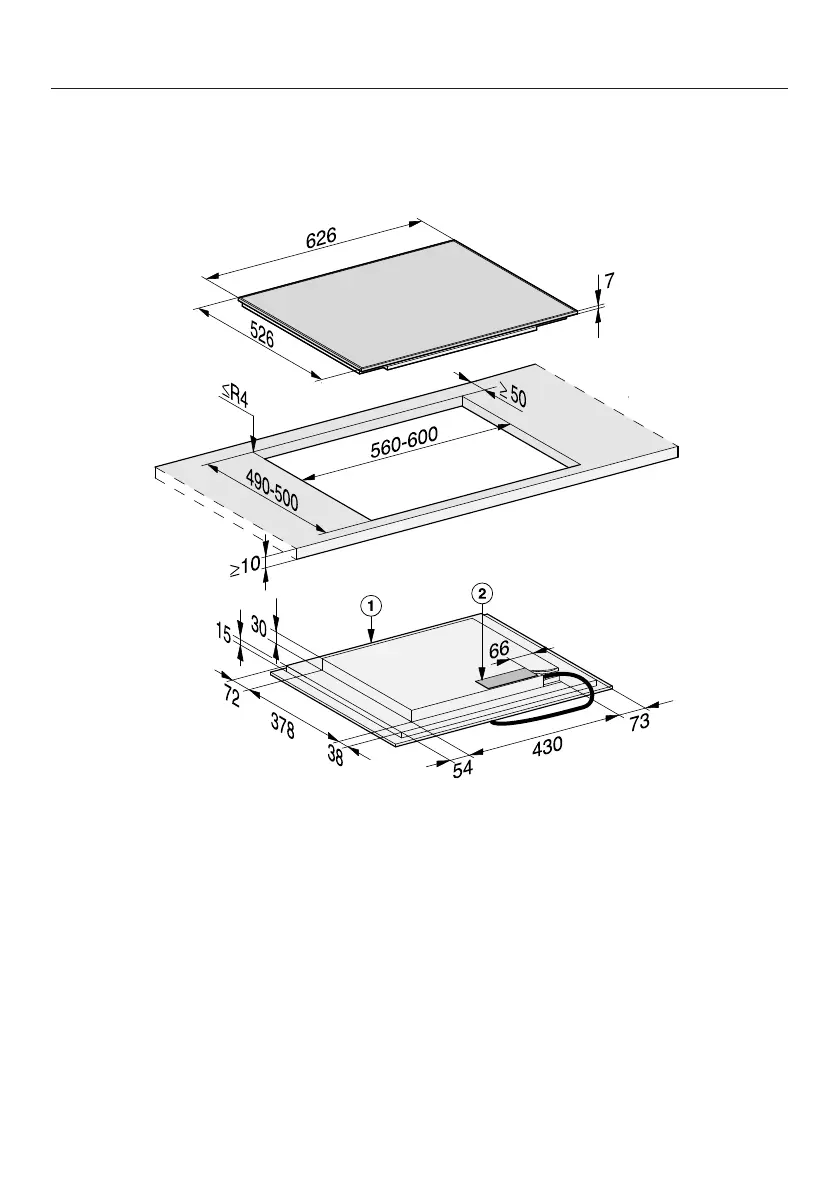

Building-in dimensions for surface-mounted installation

KM7464FR,KM7466FR

All dimensions are given in mm.

Front

Mains connection box

The mains connection cable (L=1440mm) is supplied loose
