Installation

*INSTALLATION*

KM7466FL

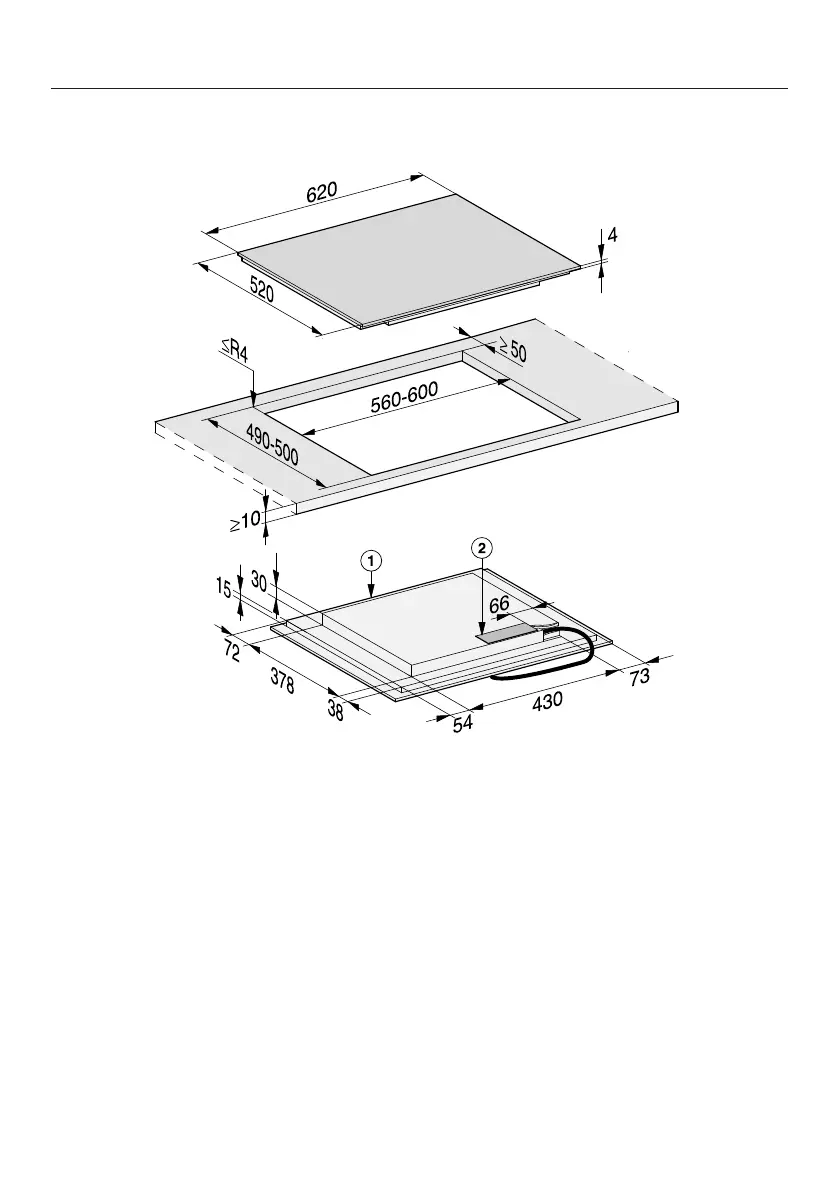

All dimensions are given in mm.

Front

Mains connection box

The mains connection cable (L=1440mm) is supplied loose
