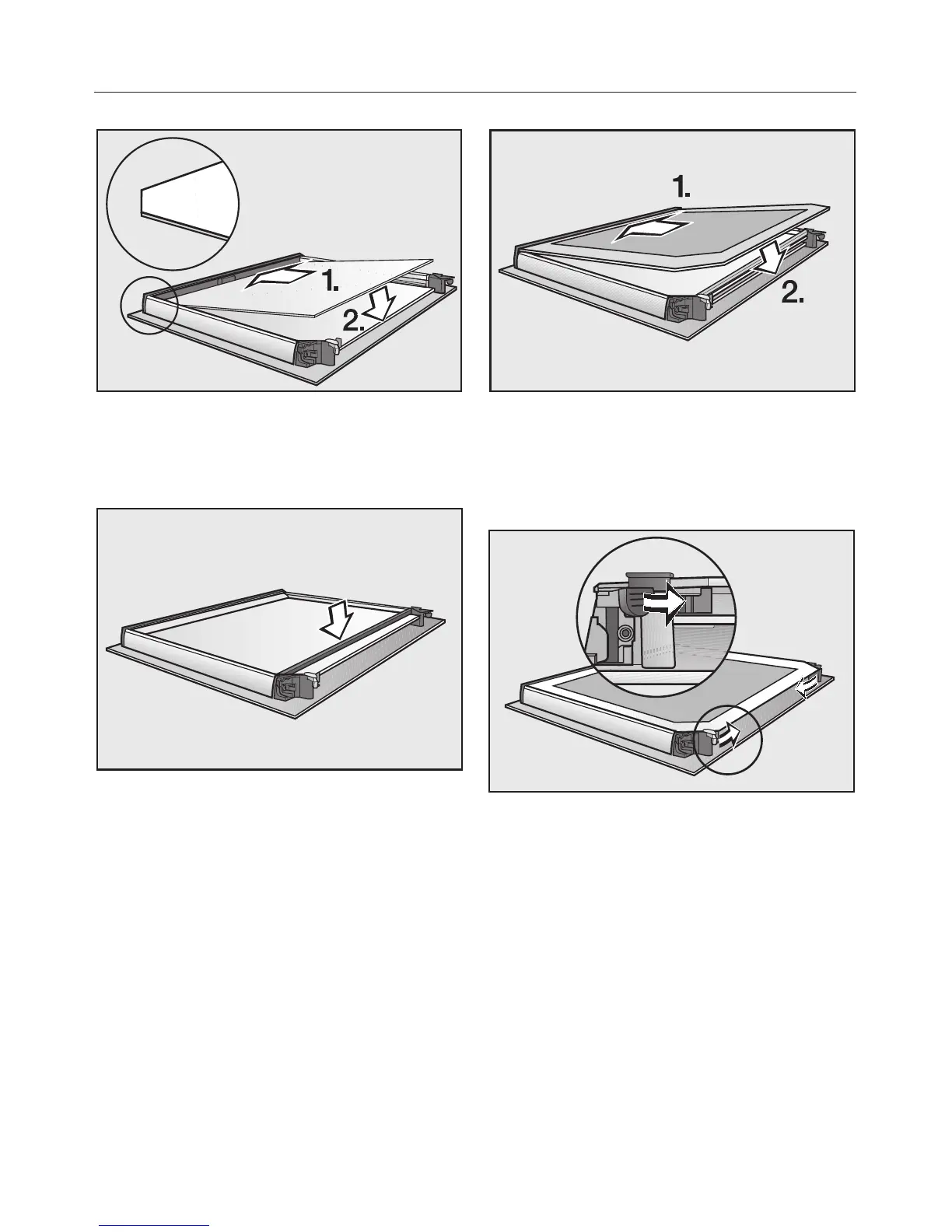

Refit the upper of the two middle
panes so that the more angled corner
is at the top left.
^
Replace the seal.
^
Push the inner pane with the matt
printed side facing downwards into
the plastic strip and place it between
the retainers.
^
Flip both the glass pane retainers
inwards to close them.
The door is now reassembled and is
ready to fit back on the oven.
Cleaning and care
