Oven
This oven is supplied with an approx.
1.7 m long 3-core cable for connection
to a 230 V, 50 Hz supply. The wires in
the mains lead are coloured as follows:
Green/yellow = earth; Blue = neutral;
Brown = live WARNING, THIS
APPLIANCE MUST BE EARTHED
Please connect it in accordance with
the wiring diagrams below. N.B. In this
appliance is supplied single phase only
for the UK.
Maximum connected load: see data
plate.
3N AC 230V supply

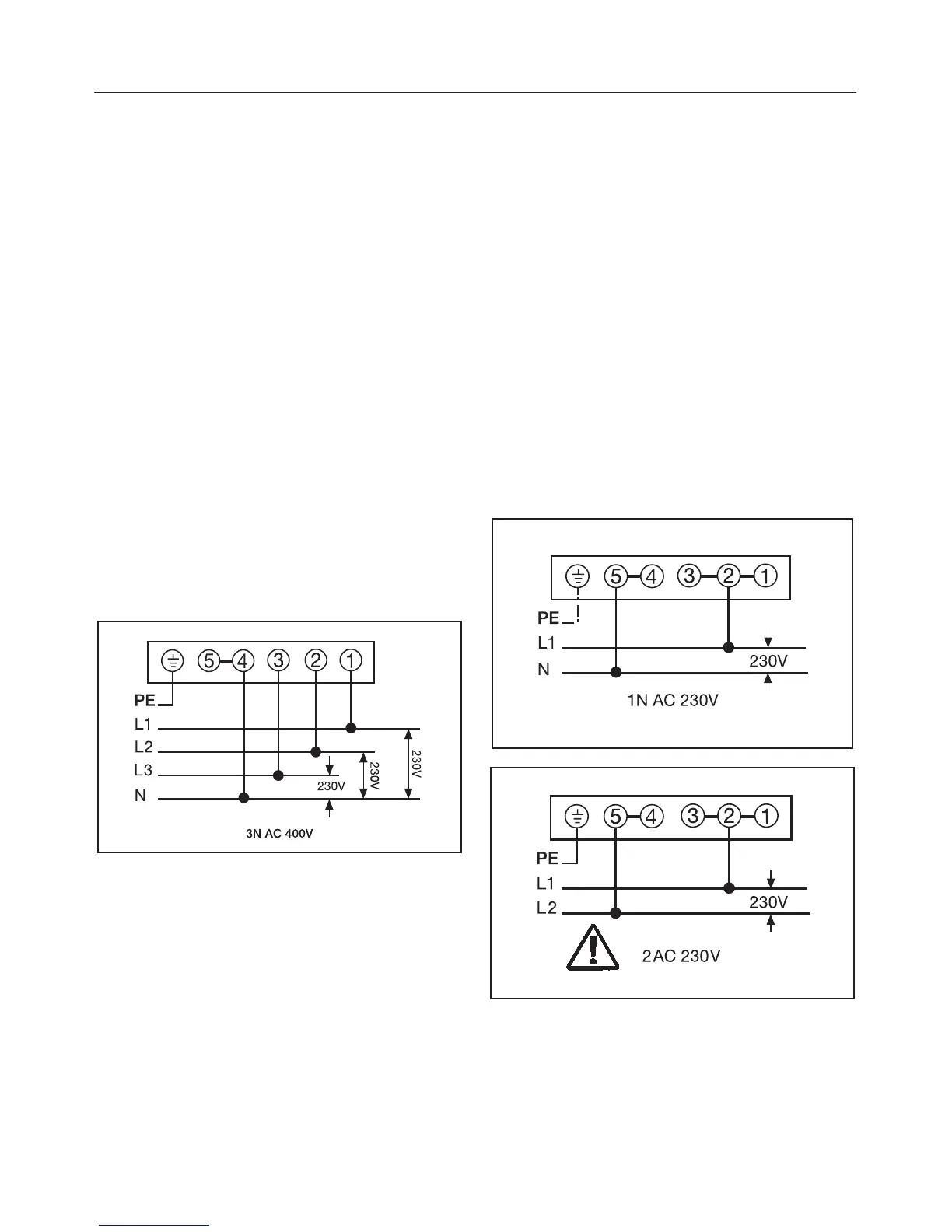

Wiring diagram
AC 230Vsupply
This oven is intended for connection to
a power supply system where the
maximum value of external phase
neutral loop impedance Z
max
of
0.35 Ohms at the point of distributor
supply connection is not exceeded.
The user has to ensure that this device
is connected only to a power supply
system which fulfils the requirement
above. If in doubt, please ask your
electrical distributor for actual Z max
value.
Wiring diagram
Electrical connection
